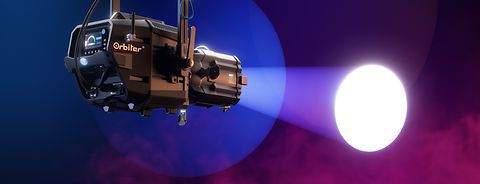

Orbiter Projection Optics

Even. Precise. Brilliant.

02_Orbiter_Projection_INTRO_01
Orbiter Projection Optics

The Orbiter Projection Optics 25° and 35° provide unparalleled precision in every detail allowing for crisp projection of a light spot, as well as immaculate gobo projection and precise shutter cuts. The field of light is entirely even and without color aberration. The projection has no visible hot spot or drop to the edge and the depth of field is outstanding.

Orbiter Projection Optic 25° - L2.0033549
Orbiter Projection Optic 35° - L2.0033550

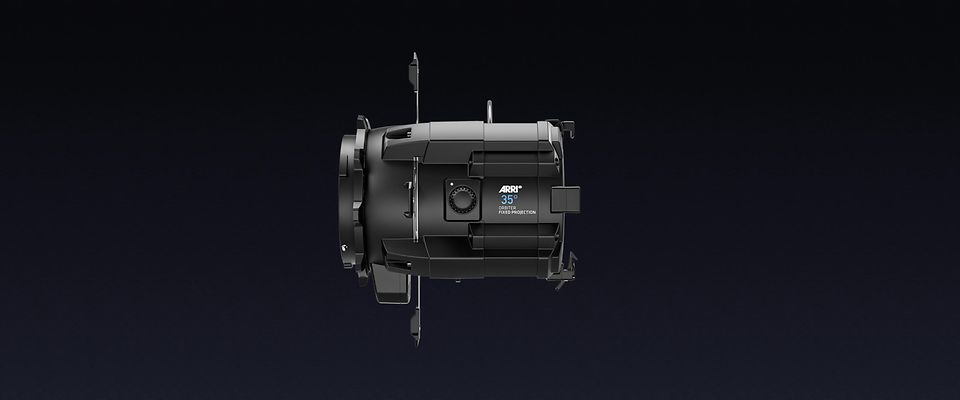

03_Orbiter_Projection_USP_35
Features:
  • Four manually adjustable shutter blades produce a beam where the shutter blade cut projection and the beam’s edge are simultaneously in sharp focus
  • Motorized focus adjustment
  • Focus control locally or remotely
  • Standard B-size metal or glass gobo can be added
  • Effortless mounting thanks to Orbiter’s QLM system
  • Can be attached to any Orbiter color version

The Orbiter with ARRI‘s Projection Optics are a perfect match. The crisp, clean and even projection is great to use either direct or in combination with mirrors or LightBridge/ CRLS reflectors, and the precision of the motorized focus is a great step forward.

Shutter blades and beam edge are on the same focal plane and without the typical unwanted coloured edges known from LED projection units. A great achievement!

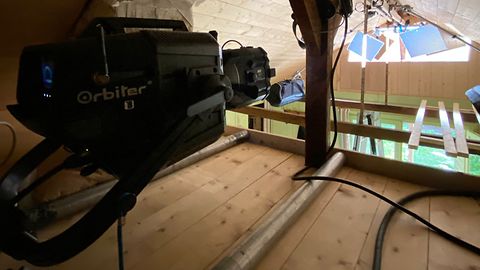

Timm Brückner Photo

Timm Brückner

Gaffer, Germany

Tech Specs

1920x804_Cinemascope_Orbiter_Projection_Loop

Optical Performance

Orbiter Projection Optics are truly second to none, outperforming all competitor projection optics and dedicated profile fixtures. And while the Orbiter Docking Ring allows third-party optics that customers may already own to be used on the Orbiter, such combinations can only ever be as good as those third-party optics. Compared to the quality of ARRI’s own optics, this will inevitably mean a compromise in quality. If you want outstanding optical performance in every aspect, with no brown/blue shadow or edge at any focus, almost no chromatic aberration, and simultaneous sharpness of any shutter blades at any angle, then the Orbiter Projection Optics should be your first choice.

ARRI-90-focused_00011
FR-90-focused_00011
Industry Standard Projection Optic
Orbiter Projection Optic

Application possibilities

05_Orbiter_Projection_Application[2]

Mounting & Accessories

Orbiter’s unique Quick Lighting Mount (QLM) system allows the Projection Optics to be mounted safely and quickly but still enabling a 90° rotation. The LiOS2 update ensures an automatic recognition of this new optic and its latest feature, Optics Auto Adjust, offers 100% color stability with any focus and any optic. The optic’s cooling fan can be controlled via Orbiter’s Light Control setting through the Control Panel. Every Projection Optic is shipped with the dedicated Goboholder.

9314-22

Orbiter Projection Sets

Looking for exceptional precision in every aspect? Then this set is just right for you. Our Projection Optics enable a sharp projection of a light spot, flawless gobo projection, and accurate shutter cuts.

There are two sets available:

Orbiter Projection 25° Set – L0.0050675

Orbiter Projection 35° Set – L0.0050674

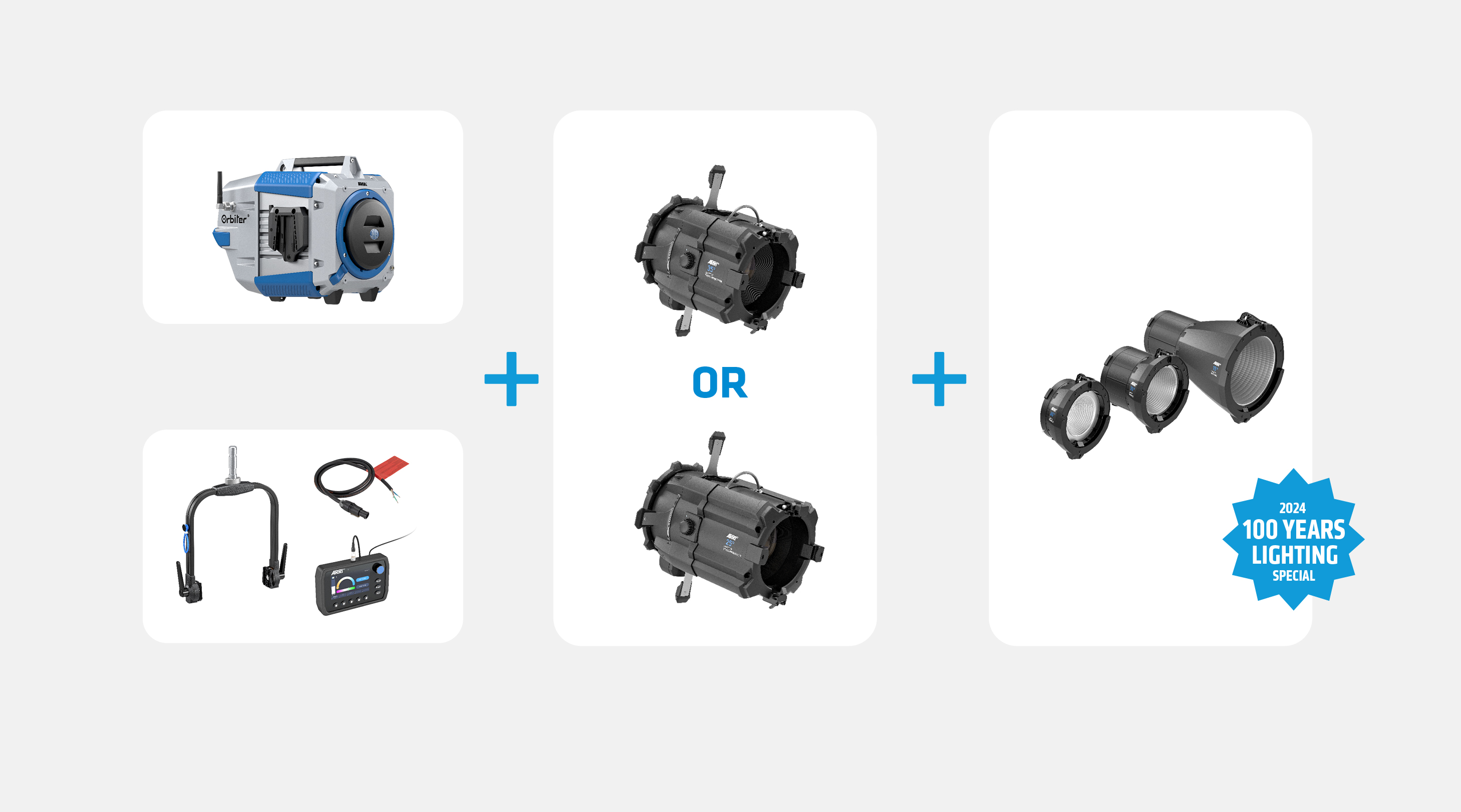

orbiter_sales_100y_image_map_projeciton25u35
Orbiter Blue/Silver
1
Manual Yoke
2
Power Cable w. Switch Bare Ends
3
Orbiter Control Panel with Cable
4
Orbiter Projection Optic 35°
5
Orbiter Projection Optic 25°
6
Open Face Optics
7
  • Orbiter Blue/Silver

    1

    The ARRI Orbiter is a versatile, tuneable, and directional LED fixture including a six-color light engine. With its changeable optics, Orbiter can transform into many different types of lamphead.

    L1.0033520


  • Manual Yoke

    2

    The yokes for Orbiter come with a newly developed release system that allows for quick change from a manual version lamphead to a pole operated version. The 28 mm spigot (Junior pin) is already mounted on the yoke. No tools needed for setting up Orbiter.

    • Quick release system
    • No tools needed
    • Manual yoke made of high strength aluminum profile
    • Steel yoke for pole operation (pan, tilt)
    • Includes 28 mm spigot (Junior pin)

    L2.0034025

  • Power Cable w. Switch Bare Ends

    3

    The mains cables connect Orbiter to a mains power outlet (100-240 V~, 50/60 Hz).

    • powerCON TRUE1 TOP connector
    • Line switch
    • Lengths: 3 m / 9.8 ft.
    • Rubber insulated cable H07RN-F 3G1,5, EN

    L2.0024627


  • Orbiter Control Panel with Cable

    4

    Redesigned from the ground up, the Orbiter control panel is an evolutionary step in light fixture control. Including a 4" full-color display, quick navigation buttons, and integrated sensors, the Orbiter control panel allows for easy use with a graphic user interface. Simplified menu structure and reimagined user interfaces provide one-glance operational views and uncluttered screens.

    This intuitive design makes changing colors or finding a setting easier than ever before. In addition, the control panel is removable and can be used handheld with the aid of a control panel cable.

    • Quick navigation, advanced user interface, and simple menus
    • This set includes the Orbiter control panel cable 15 m / 49.2 ft. (L2.0033800)
    • Includes carrying pouch, lanyard & D-ring

    L2.0033732

  • Orbiter Projection Optic 35°

    5

    Combined with Orbiter’s ARRI Spectra light engine, the high-end optical system provides a state-of-the-art LED profiler which is perfectly suited for theaters, cinematic applications, as well as broadcast studios or live productions.

    • Four manually adjustable shutter blades produce a beam where the shutter blade cut projection and the beam’s edge are simultaneously in sharp focus
    • Motorized focus adjustment
    • Focus control locally or remotely
    • Standard B-size metal or glass gobo can be added
    • Effortless mounting thanks to Orbiter’s QLM system
    • Can be attached to any Orbiter color version
    • Orbiter Projection Optic 35° with 287 mm x 287 mm x 284 mm (11.3 in x 11.3 in x 11.2 in)
    • Projection 35° at 4,35 kg (9,6 lbs)

    L2.0033550

  • Orbiter Projection Optic 25°

    6

    Combined with Orbiter’s ARRI Spectra light engine, the high-end optical system provides a state-of-the-art LED profiler which is perfectly suited for theaters, cinematic applications, as well as broadcast studios or live productions.

    • Four manually adjustable shutter blades produce a beam where the shutter blade cut projection and the beam’s edge are simultaneously in sharp focus
    • Motorized focus adjustment
    • Focus control locally or remotely
    • Standard B-size metal or glass gobo can be added
    • Effortless mounting thanks to Orbiter’s QLM system
    • Can be attached to any Orbiter color version
    • Orbiter Projection Optic 25° with 287 mm x 287 mm x 331 mm (11.3 in x 11.3 in x 13.1 in)
    • Projection 25° is at 5,45 kg (12 lbs)

    L2.0033549

  • Open Face Optics

    7

    On the occasion of our 100th anniversary of ARRI Lighting in 2024, we are giving you 3 Open Face Optics (15°, 30°, 60°) on top of every Orbiter Beam Set.

    The Open Face Optics produce a high-output, directional beam of light in several different beam angles including 15°, 30°, and 60°. They are perfect for throwing light long distances or providing a broad swath of light. The accessory slot can be used with modifiers such as barndoors or snoots.

    • Provides powerful, uniform beam of light
    • Attaches to the Quick Lighting Mount (QLM) on Orbiter
    • Contains digital optics identification
    • Fits 4-leaf & 8-leaf barndoors and snoots
    • Accessory slot size: 245 mm / 9.7"
    • Ships in foam insert that can be re-used for safe transportation and storage

    L2.0033540 (15°)

    L2.0033541 (30°)

    L2.0033542 (60°)
