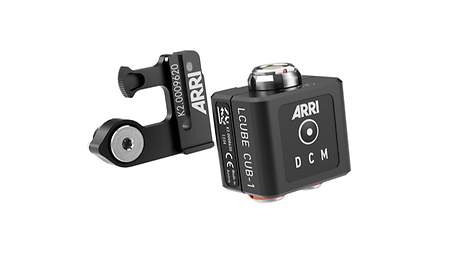

LCUBE CUB-1

The LCUBE CUB-1 is a miniature multi-purpose signal converter that converts LBUS protocols to serial protocols and vice versa.

Features

LCUBE CUB-1 Basic Set

LCUBE CUB-1 Basic Set

KK.0009001 (K0.0010104)

  • Provides two LBUS connectors and one SERIAL connector

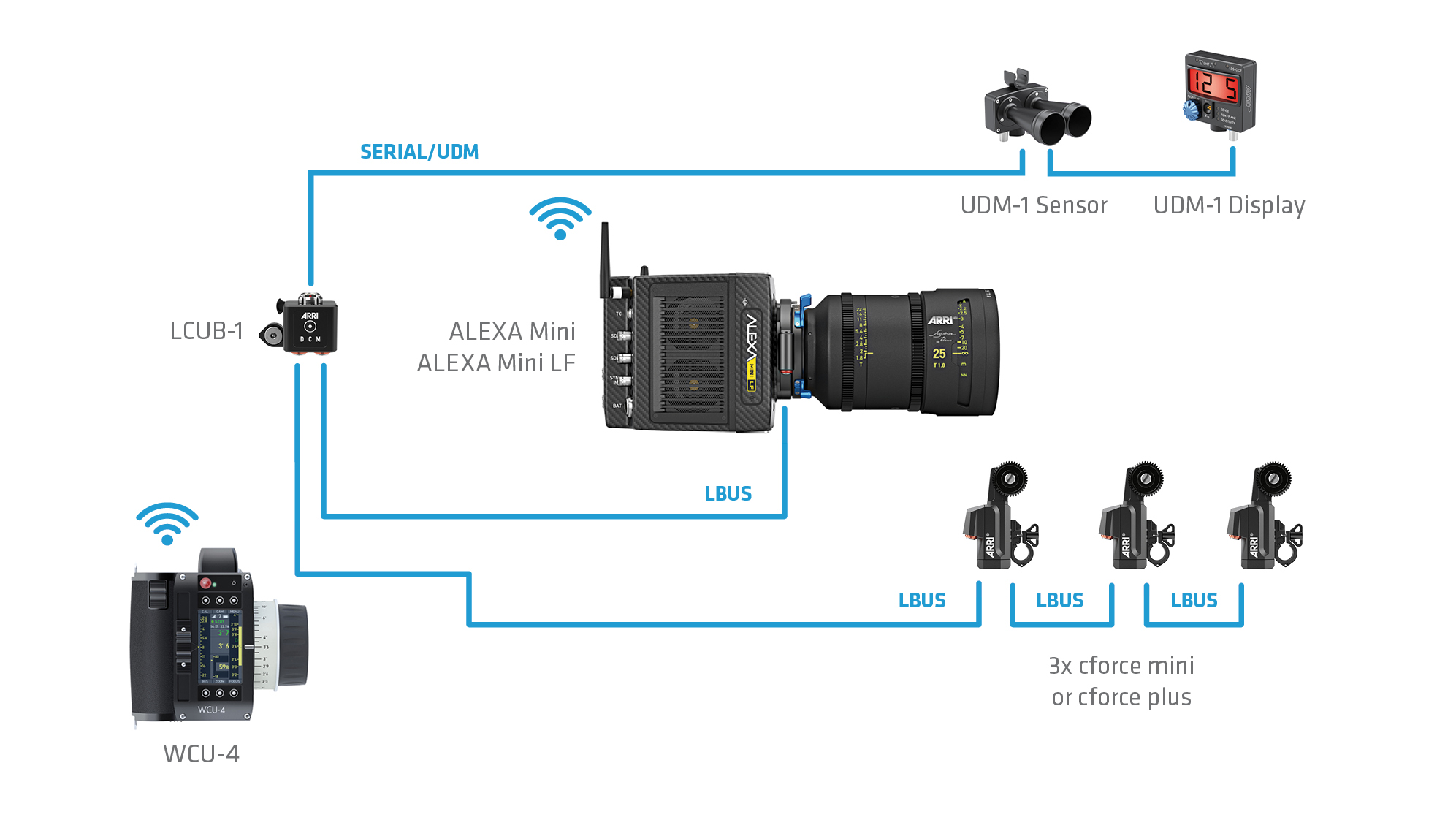

  • Can be connected to the ALEXA Mini or ALEXA Mini LF via the LCUBE and a daisy chain of one or more cforce motors
  • Delivering distance readings to the Hi‑5 and WCU‑4
  • Allowing focus tracking in the same way as is possible with other ALEXA cameras or the Universal Motor Controller UMC-4
  • Offers am integrated dovetail for mounting the LCUBE Bracket (K2.0009620) or the CLM-5/cforce mini Clamp Console Clamp Console 19/15 mm (K2.0006176).

Compatibility

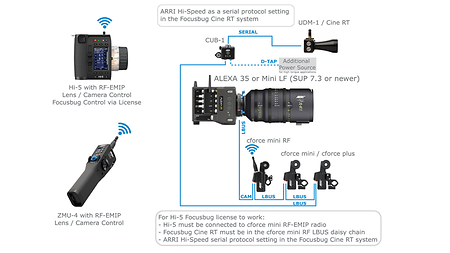

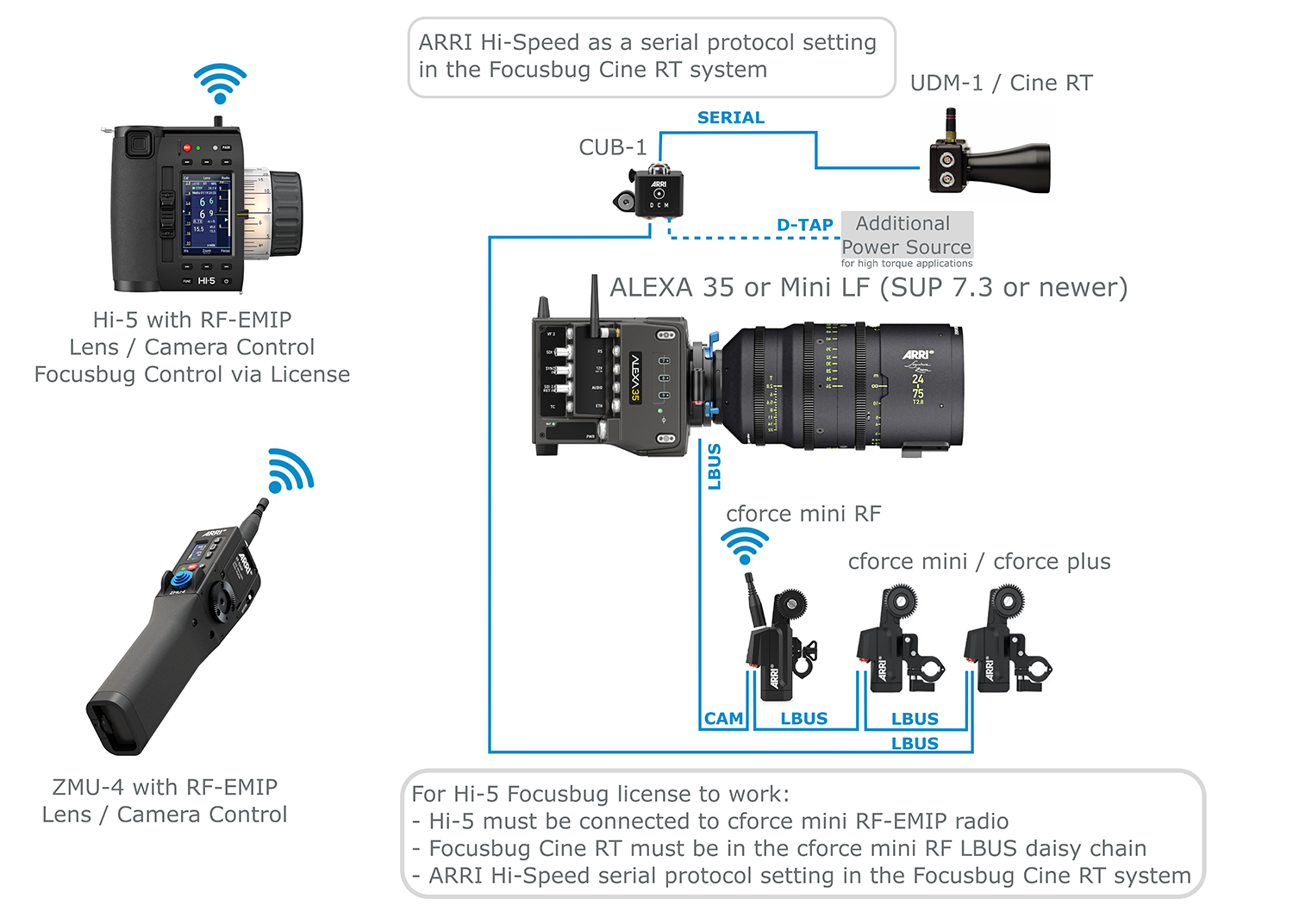

cforce mini RF as a radio host and Focusbug on an ALEXA 35 or ALEXA Mini LF (SUP 7.3 or newer)

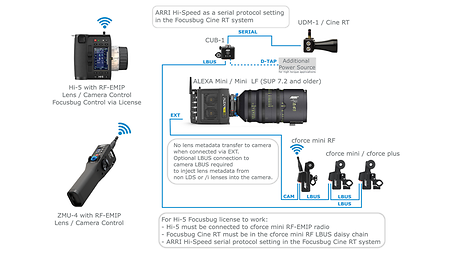

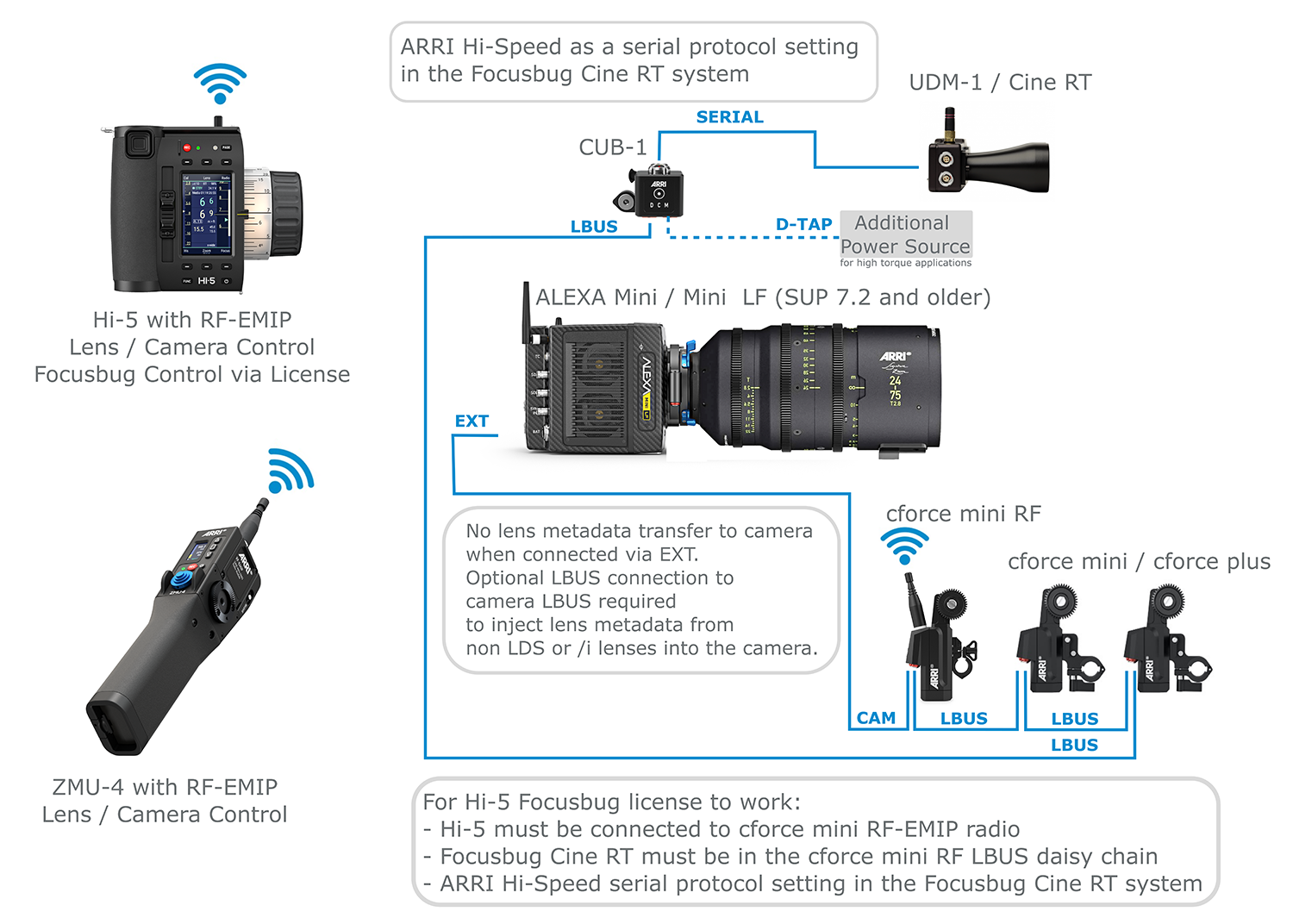

cforce mini RF as a radio host and Focusbug on an ALEXA Mini or ALEXA Mini LF (SUP 7.2 or older)

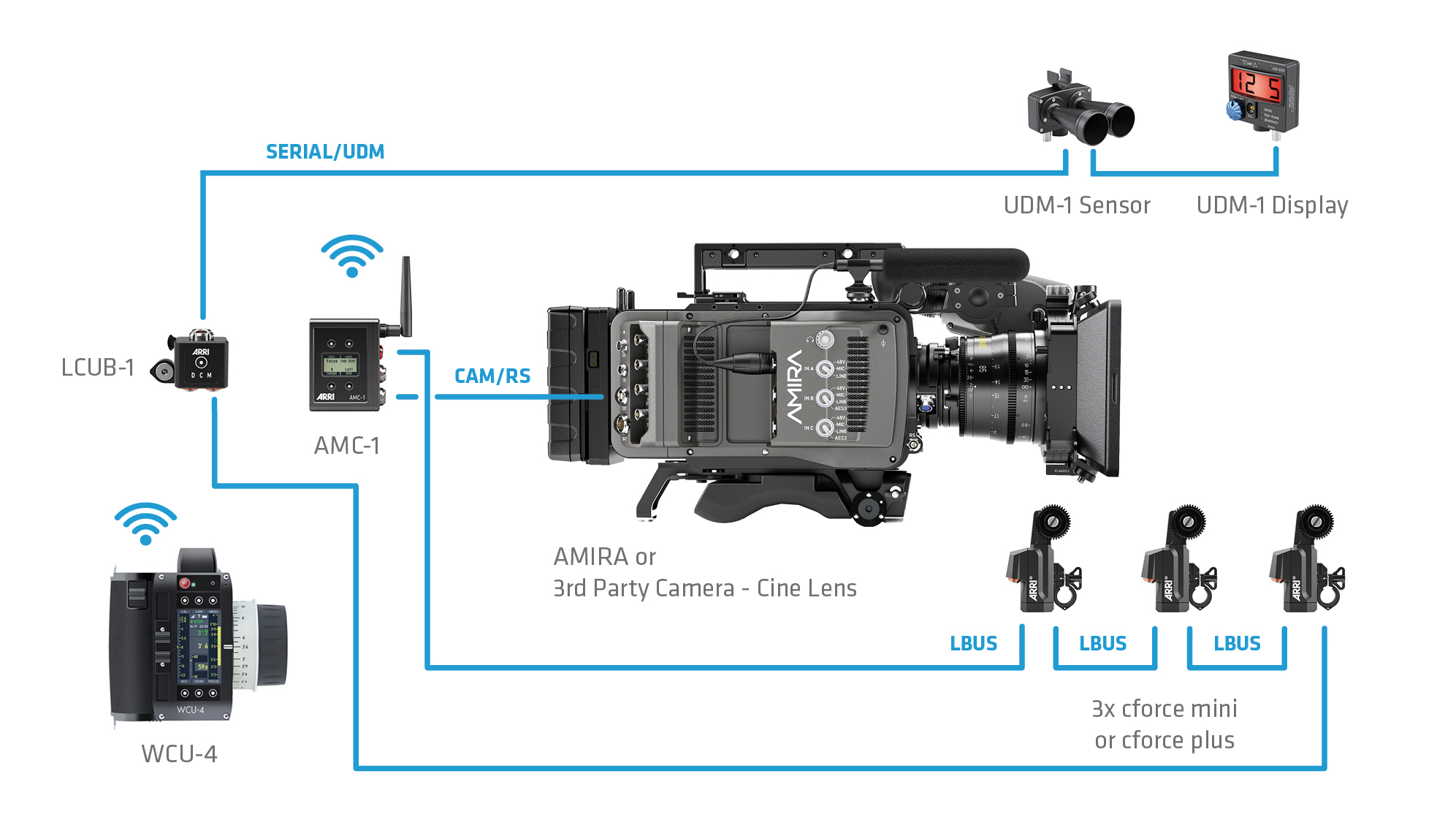

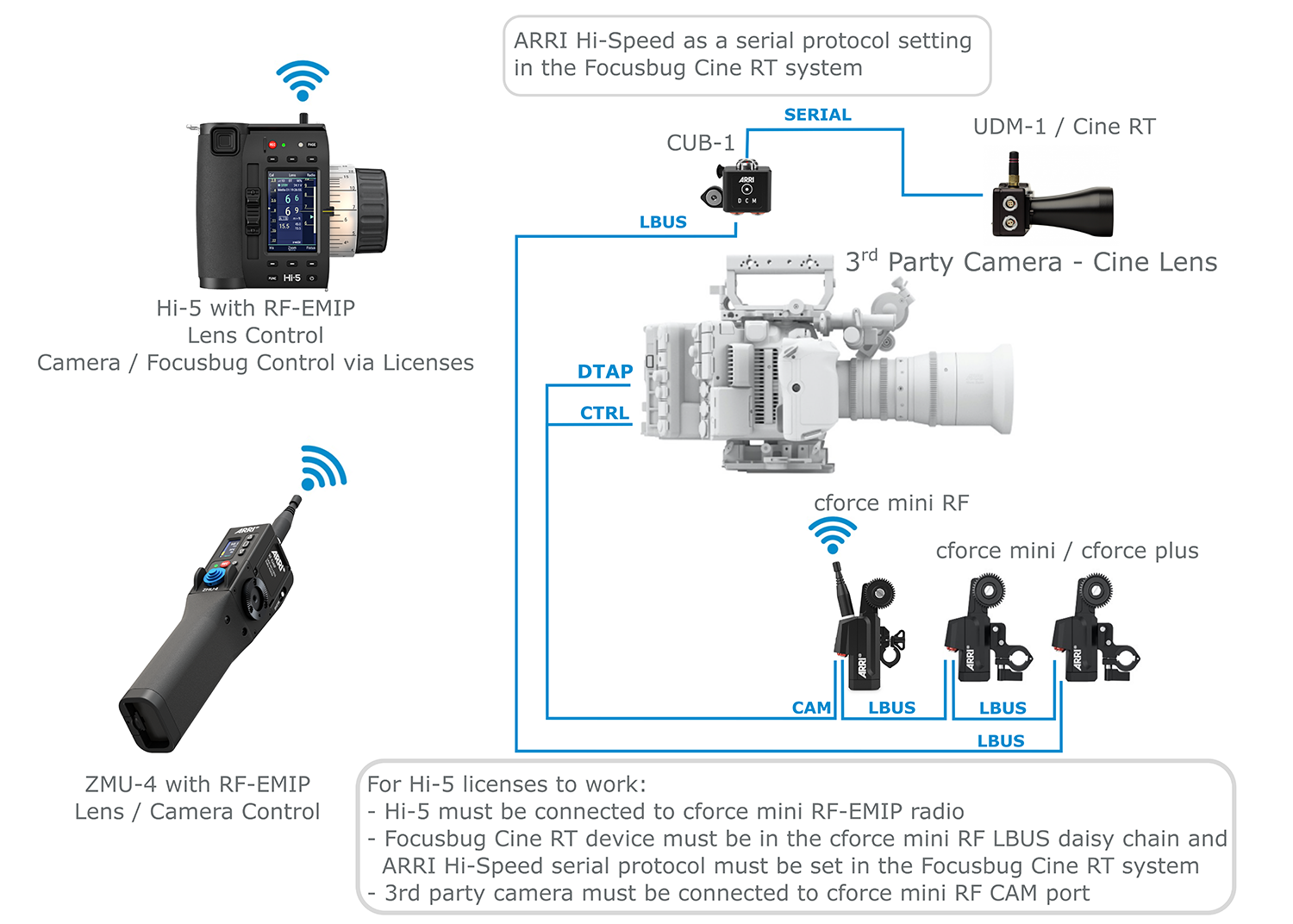

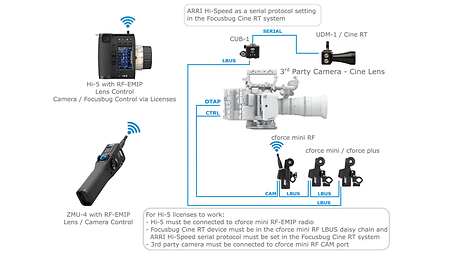

cforce mini RF as a radio host and Focusbug as a radio host on a 3rd party camera with cine lens

Quotes

WCU‑4 is incredibly useful for changing camera settings on the fly. With a lot of the camera builds it’s important to keep the weight down for the operator. The LCUBE allows you to do that brilliantly without losing the Distance Measurement readout.

1st AC James Hills (Known for: Greater Things, Bloody Cuts, Blackbird and many more)

LCUBE CUB-1 Related Products

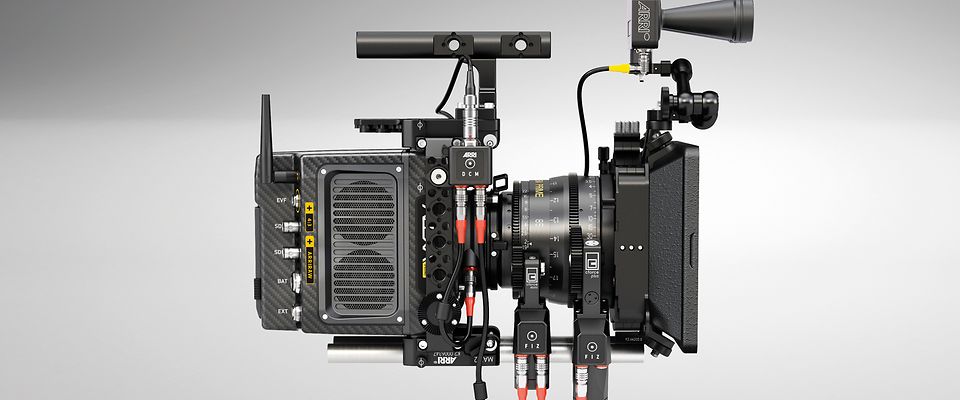

ALEXA Mini - PL Mount cforce configuration (2)
LCUBE_2 (3)

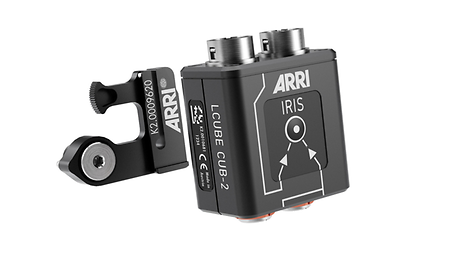

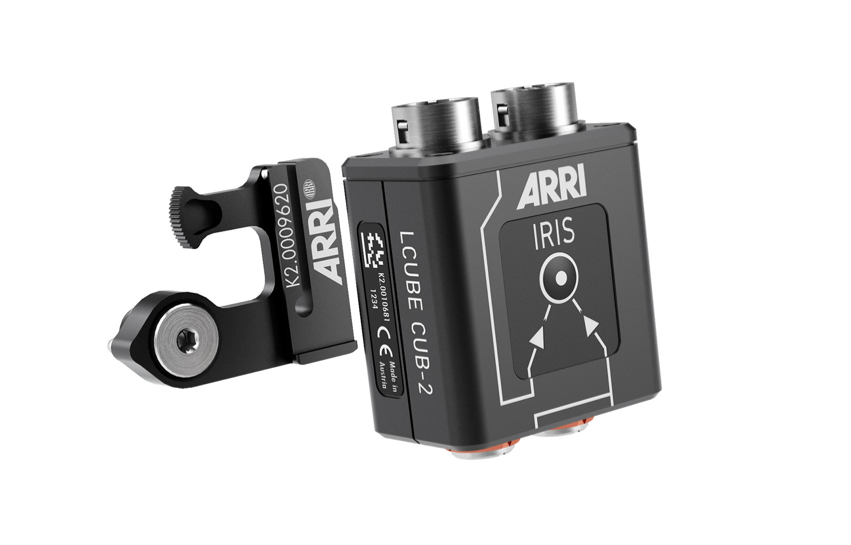

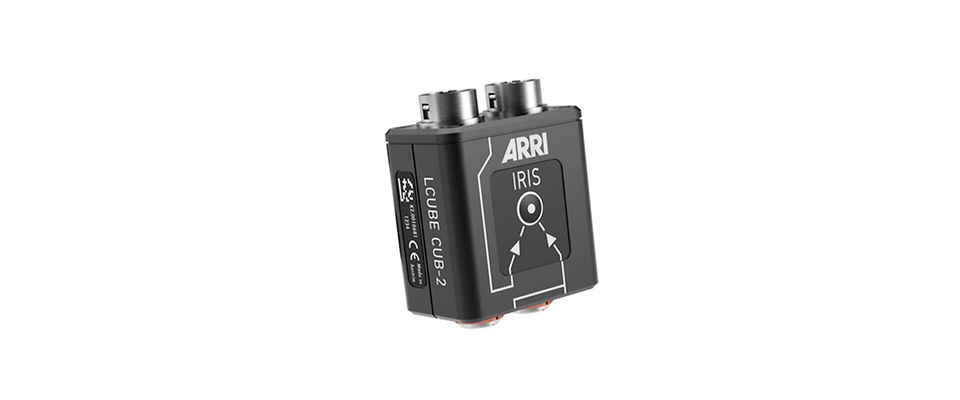

LCUBE CUB-2

A miniature signal converter that integrates the 12pin Hirose ENG protocol into the LBUS ecosystem.

Features

LCUBE CUB-2 Basic Set

LCUBE CUB-2 Basic Set

KK.0013217 (K0.0012983)

  • Enables Master Grips to directly control focus, iris and zoom of a servo-zoom lens
  • Provides two options for iris control: auto-iris from the camera or manual iris from a Master Grip.
  • Offers am integrated dovetail for mounting the LCUBE Bracket (K2.0009620) or the CLM-5/cforce mini Clamp Console Clamp Console 19/15 mm (K2.0006176).

Compatibility

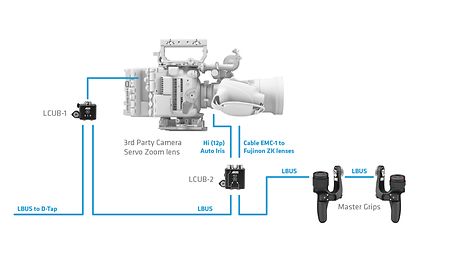

LCUBE CUB-2 + Servo Zoom Lens + 3rd Party Camera
