TRINITY Live

Creativity in real time

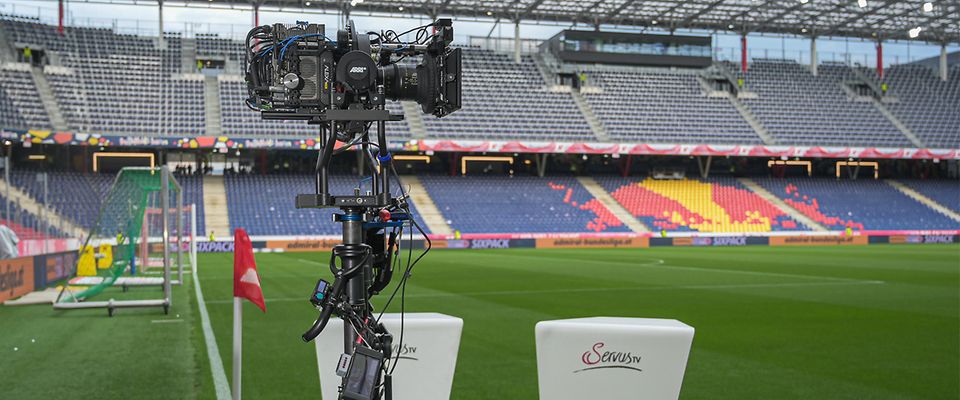

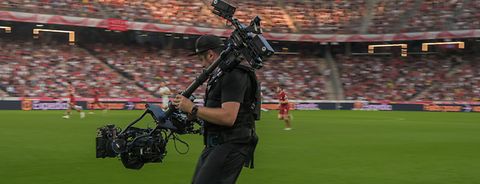

TRINITY Live is a refurbished TRINITY Gen.1 with an upgrade that turns it into the ideal stabilizer system for multi-camera productions. Whether for sports, music concerts, theatrical events, or live TV shows, TRINITY Live seamlessly weaves vibrant camerawork and a cinematic aesthetic into standard broadcast workflows, enabling extraordinary angles and truly dynamic camera moves.

Technical Features

Four extra 6G video lines for wireless transmission
Two 3G video lines for operator's monitor and program return
Ethernet communication for camera control in OB van
Master Grip TRINITY to control tilt and zoom
Tally Gen.2 with clear indications for talent and operator
Use with CCP Live for optimal integration of ALEXA Mini

Mechanical conversion features

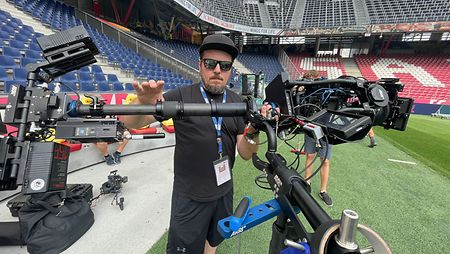

Wireless video transmitter as counterweight
The wireless video link, usually attached to the camera, is placed at the bottom of the TRINITY center post where it also functions as a counterweight, reducing the overall weight of the rig.

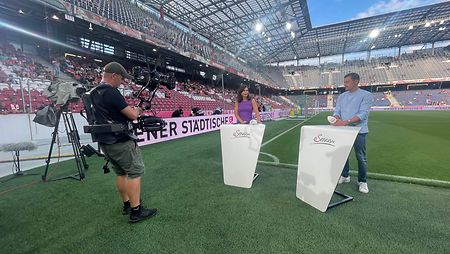

Flawless radio transmission
Thanks to the repositioning of the wireless video link, the rotational radius of the antenna is reduced. As a result, the connection to the OB van is steady and reliable, making the TRINITY Live perfect for multi-camera applications.
High resolution without artefacts
The Vislink software provides a strong and stable radio contact, delivering two high-resolution 6G video lines in superior quality and the highest possible frame rate.

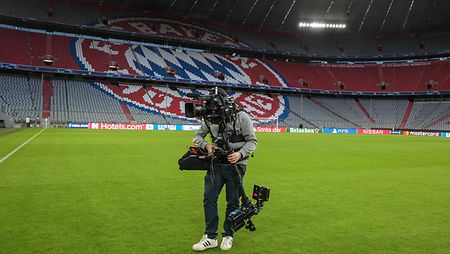

Master Grip TRINITY for more creativity
The ergonomic Master Grip TRINITY combines tilt and zoom functionality in a single device, further enabling operators to perform innovative, production-enriching movements.

Perfect partners for TRINITY Live

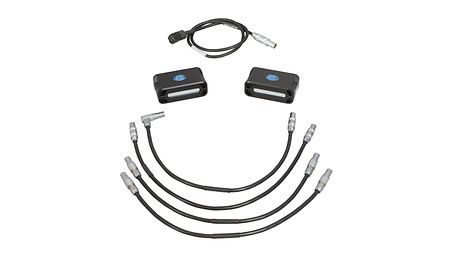

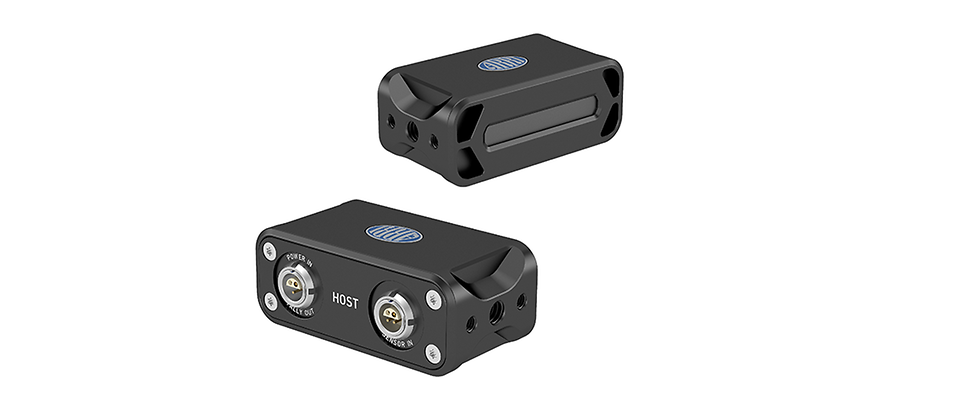

Tally System Gen.2

The Tally System Gen.2 provides the talent and operator with a clear and easily readable signal to indicate that they are live. This second-generation system is a compact, flexible pair of units that can be mounted to many ARRI CSS devices.

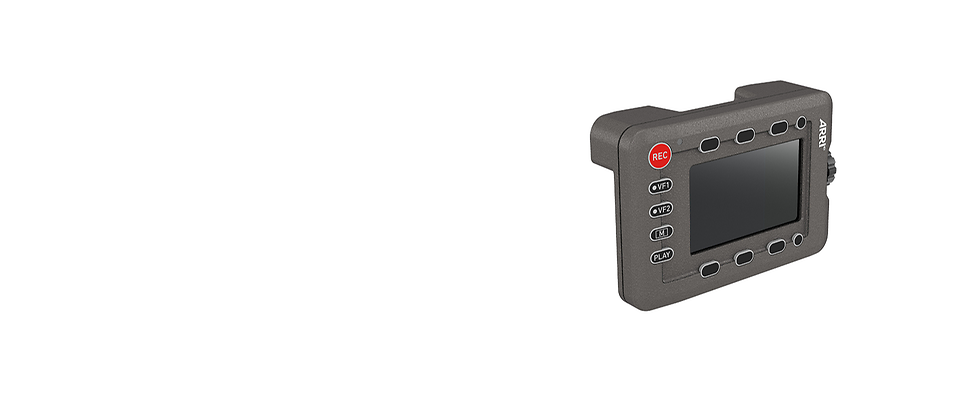

Camera Control Panel CCP Live

The CCP Live is an upgraded CCP-1 that includes an HDMI downconverter, an HD-SDI Video Out socket, and a Tally Out socket, in addition to existing monitor and camera control functions. This allows the operator to get a direct monitor video feed from the camera even when both video outputs are used for 2 x 6G video.

The additional 1080 HD-SDI video signal allows a control monitor to be connected to the camera if both Video Out sockets are already in use. If the camera is integrated into a multi-camera setup, the Tally System Gen. 2 can be controlled via the Tally Out socket.

How to acquire TRINITY Live

If you already own a TRINITY Gen.1 and would like to make it broadcast-friendly, contact our service office in Munich. They will upgrade your stabilizer into a TRINITY Live and give you the option of booking the Master Grip TRINITY upgrade at the same time.

If you do not own a TRINITY Gen.1 yet, you can order a TRINITY Live through the ARRI Certified Pre‑Owned program. The stabilizer will be fully refurbished, upgraded, thoroughly tested, and provided to you with a one-year warranty.

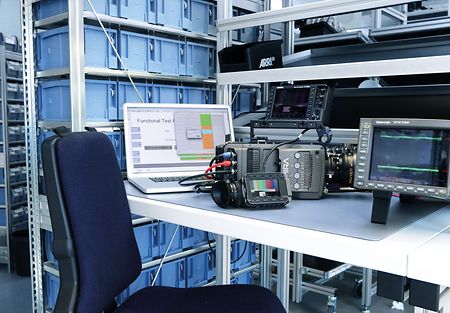

Contact our service office

...to convert your TRINITY Gen.1 into a TRINITY Live

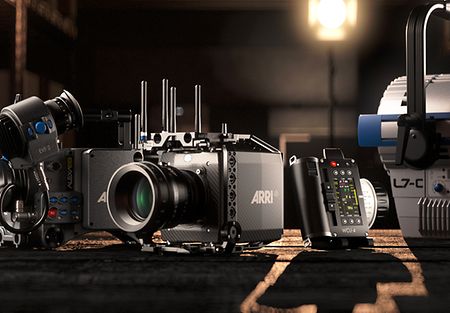

Send a request to CPO

...to purchase a TRINITY Live system

Video room

ARRI TRINITY 2 and ARTEMIS 2 in Use, filming a car in a workshop.

Jul. 11, 2024

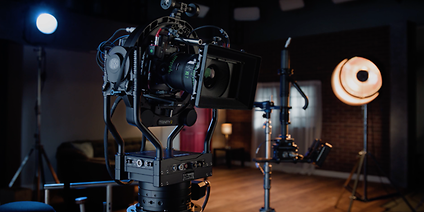

Introducing TRINITY 2 Pan Axis Module

With a Pan Axis Module attached, the head of ARRI’s TRINITY 2 camera stabilizer converts into a compact and powerful three-axis stabilized remote head, allowing TRINITY 2 operators to expand the skills and chargeable services they can offer on set. By augmenting the powerful tilt and roll motors of the TRINTY 2 head with a similarly powerful pan axis, the new module permits TRINITY 2 to be used in situations that would normally be reserved for standalone remote heads or three-axis gimbals.

TechTalk_CCP-Live_Curt_01_Tally2_on_small

Jan. 11, 2024

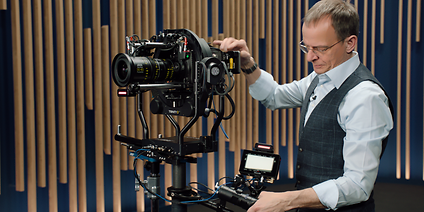

ARRI Tech Talk: Tally Gen.2 for ARTEMIS and TRINITY

The Tally system gives the host and the talent a signal, indicating they are on air. This second-generation system ensures constant brightness for both sides, with a stronger light on the talent side, and a softer light for the operator. In this Tech Talk you will learn how to set up the Tally with our Camera Stabilizer Systems ARTEMIS 2 and TRINITY 2 / TRINITY Gen.1.

Jan. 11, 2024

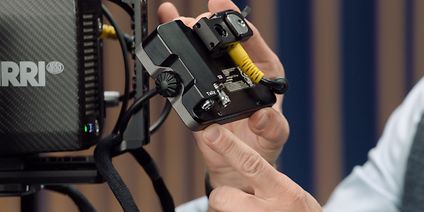

ARRI Tech Talk: Camera Control Panel CCP Live

The CCP Live is an upgraded version of our Camera Control Panel CCP-1. Its updated back panel now offers a down-converter for a monitor image and a Tally outlet. Product Manager Curt O. Schaller shows you the features and setup of this new camera control unit in a multicam environment.

Jan. 16, 2024

ARRI Tech Talk: New TRINITY Live for Broadcast

Get to know our camera stabilizer TRINITY Live, specifically made for live productions! Product Manager Curt Schaller walks you through the setup and features of the new system, which offers a lightweight rig, stable communication to the OB van, and many more benefits for broadcast productions.

ARRI TRINITY 2 & ARTEMIS 2 handheld and body mounted steadicam rigs.

Apr. 18, 2022

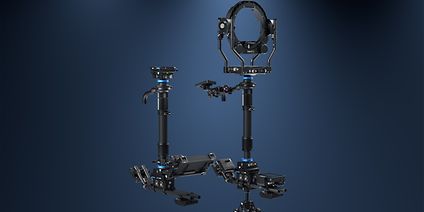

ARRI TRINITY 2 and ARTEMIS 2 Feature Tour

ARRI introduces a second generation of its TRINITY and ARTEMIS camera stabilizers. The new modular system has been redesigned down to the smallest detail, incorporating enhancements to camera movement, connectivity, power management, user interface, balance options, and product longevity. A quick and easy upgrade transforms the purely mechanical ARTEMIS 2 into the hybrid TRINITY 2, which adds electronic stabilization for an even wider range of movements and angles.

Apr. 4, 2022

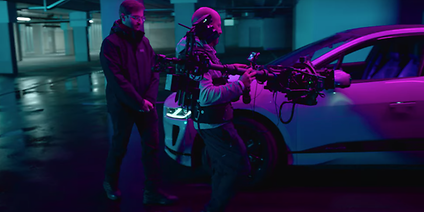

Introducing TRINITY 2 and ARTEMIS 2 - A workshop
