Lightweight Matte Box LMB 4x5 product image.

LMB 4x5

Try our Matte Box Checker

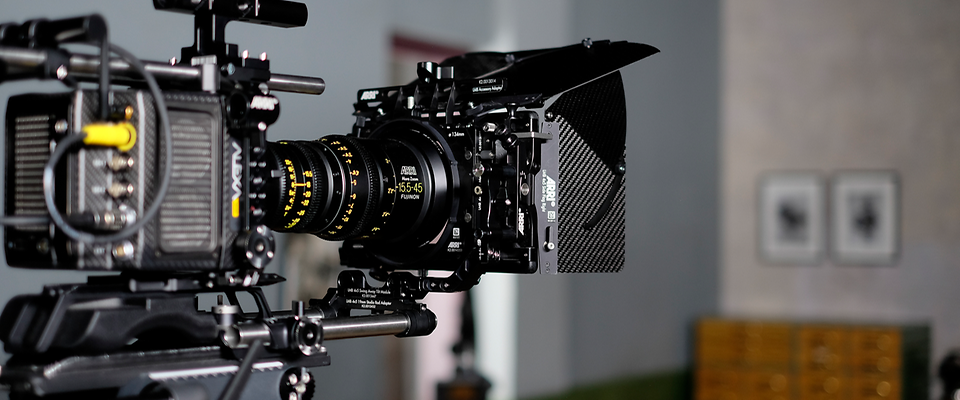

Suited for a wide range of applications in just one product, the robust but lightweight LMB 4x5 allows for an unprecedented level of flexibility. From a single-filter configuration for gimbals, drones, or Steadicams to clamp-on versions up to rod-mounted solutions, the LMB 4x5 makes short work of challenging situations.

The Swing Away Tilt Module offers a comfortable swing-away function (with extension) for easier lens changes, as well as an integrated tilt module with 10° up and down adjustments for avoiding unwanted reflections. The LMB 4x5 also features versatile filter stage options, securing loops, and a tray catcher for maximum safety on set. The LMB 4x5 is compatible with 4x5.65 filter.

Sets

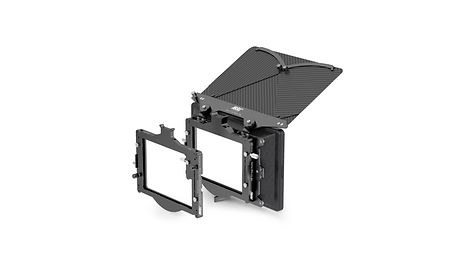

LMB 4x5 Clamp-On Set 3-Stage

KK.0015175

The LMB 4x5 set for clamp-on use with an additional non-rotating filter stage, a carbon fiber top flag, and a tray catcher. The weight of this configuration is approx. 707g...
- Show Components
LMB 4x5 15mm LWS Set 3-Stage

KK.0015176

The LMB 4x5 set for 15 mm lightweight support and a universal flexible adapter to fit almost all lens diameters, including a non-rotating filter stage, a carbon fiber top f...
- Show Components

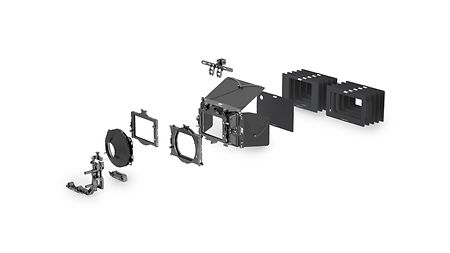

LMB 4x5 Pro Set

KK.0015177

The LMB 4x5 set to fulfill all needs with the most modular matte box – from single stage, to three stage, to bottom and top lightweight mounted, to the full-blown version w...
- Show Components

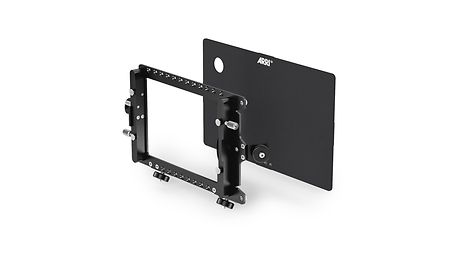

Upgrade Set LMB-25 to LMB 4x5 Basic

KK.0015178

To upgrade the LMB-25 on the platform of the new LMB 4x5.
- Show Components

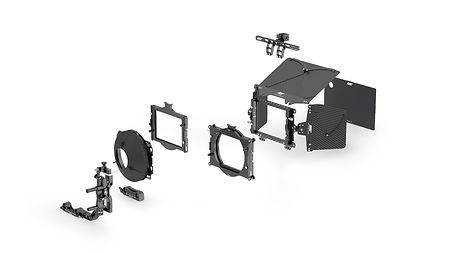

Upgrade Set LMB-25 to LMB 4x5 Pro

KK.0015181

The Upgrade Set LMB-25 to LMB 4x5 Pro comes in a foam insert that fits perfectly into any kind of Pelican 1560 case. To upgrade the LMB-25 to the full pro set of the new LM...
- Show Components

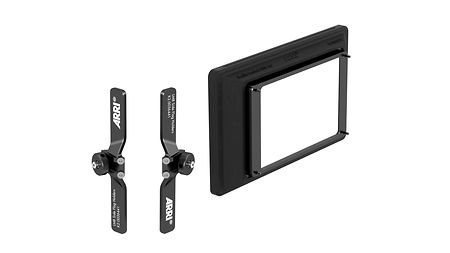

Flexible Sunshade Side Flag Holders Set

KK.0038066

The Flexible Sunshade is an alternative to the existing sunshade for the LMB 4x5 out of plastic. The rubber part can be detached in seconds without using any tools. The dim...
- Show Components

Individual Parts

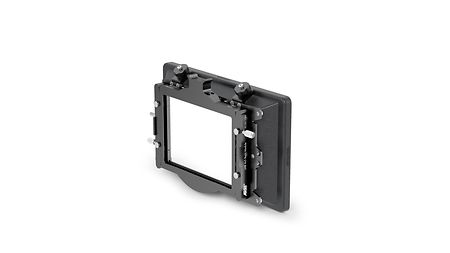

LMB 4x5 Basic Module

K2.0013589

The basic module is the starting point for the modular LMB 4x5 matte box. By just adding a clamp adapter it offers a clip-on version which can be extended by adding other L...

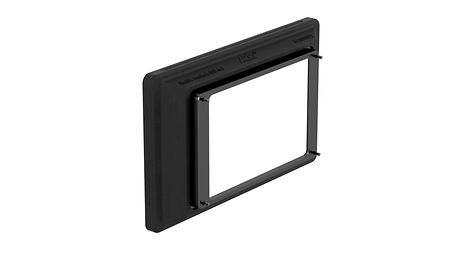

Flexible Sunshade LMB 4x5

K2.0033772

The Flexible Sunshade is an alternative to the existing sunshade for the LMB 4x5 and LMB-25 out of plastic. The rubber part can be detached in seconds without using any too...
LMB 4x5 Top/Bottom Flag

K2.0013724

A carbon fiber flag, with two extensions,which can be mounted at the top or the bottom of the LMB 4x5 – compatible with LMB-5, LMB-15, and LMB-25.

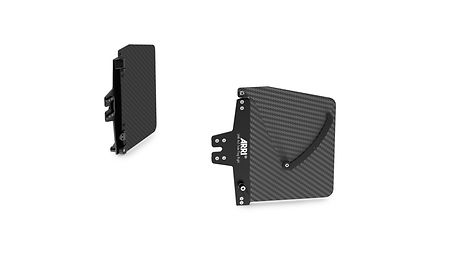

LMB 4x5 Side Flags

K2.0013750

A set of two carbon fiber side flags, each extendable on the top. Please note that K2.0013825 LMB Flag Holders are required.

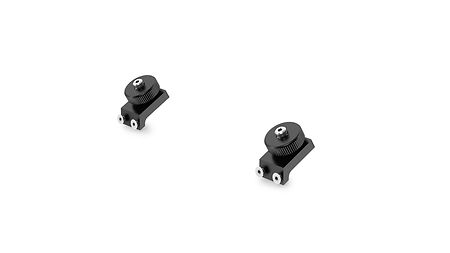

LMB Flag Holders

K2.0013825

A pair of flag holders that can be mounted on the top, bottom, or sides of the LMB 4x5 and LMB 6x6. Also compatible with LMB-25 and LMB-6(top)

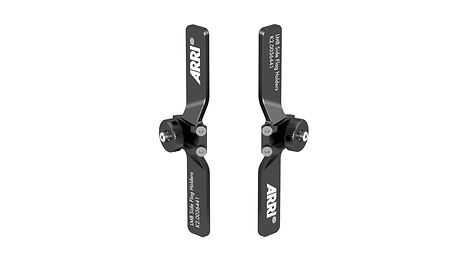

LMB Side Flag Holders

K2.0036441

Designed for the Flexible Sunshade LMB 4x5. The LMB side flag holders, which are an alternative to the existing small ones used with the LMB 4x5, offer more real estate at...
LMB 4x5 Set of Mattes spherical

K2.0000069

This set of Mattes includes 5 Mattes with 4:3 ratio openings and fits to following Matte Boxes: LMB 4x5, LMB-5, LMB-15, LMB-25, MB-19.

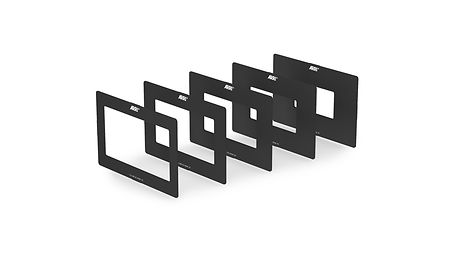

LMB 4x5 Set of Mattes anamorphic

K2.0007992

This set of Mattes includes 5 anam. Mattes with 2:1 ratio openings and fits to following Matte Boxes: LMB 4x5, LMB-5, LMB-15, LMB-25, MB-19.

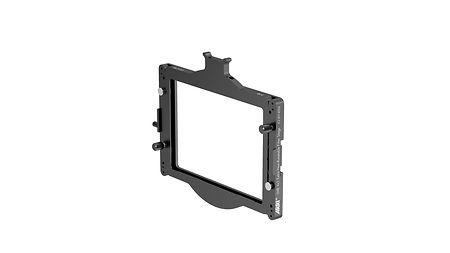

LMB 4x5 Extra Non-Rotatable Filter Stage

K2.0014006

An optional non-rotatable third filter stage for the LMB 4x5. Can be used as a stand-alone filter stage with all LMB 4x5 clamp adapters. The LMB 4x5 sunshade can be mounted...

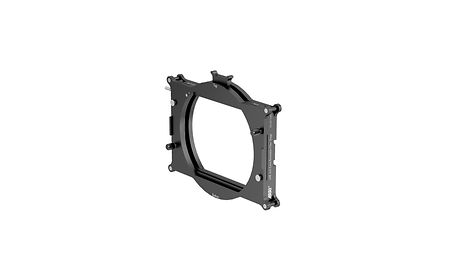

LMB 4x5 Extra Rotatable Filter Stage

K2.0013460

An optional 360° rotatable third filter stage for the LMB 4x5, with integrated tray catcher. Can be used as a stand-alone filter stage with all LMB 4x5 clamp adapters.

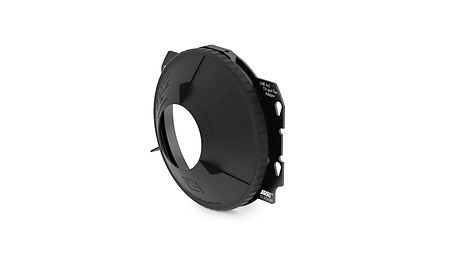

LMB 4x5 Tilt and Flex Adapter

K2.0014206

A flexible rubber donut adapter to use with lenses from small to large diameters (62-143mm), for use with LMB 4x5 swing-away tilt module or with lenses where lens elements ...
LMB Accessory Adapter

K2.0013014

For 3/8 inch accessories such as ultrasonic devices-compatible with LMB 4x5 / LMB 6x6 / LMB-25 / LMB-6 with the additional sliding possibility for a perfect positioning.

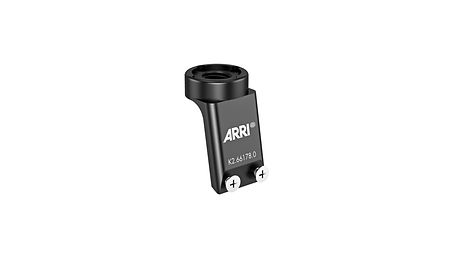

3/8in Accessory Shoe

K2.66178.0

For 3/8 inch accessories such as ultrasonic devices – compatible with LMB 4x5 / LMB 6x6 / LMB-25 / LMB-6.

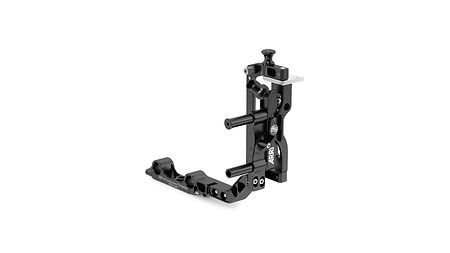

LMB 4x5 Swing Away Tilt Module

K2.0013447

The module offers a comfortable swing-away with extension for easier lens changes, as well as an integrated tilt module for 10° up and down adjustments to avoid unwanted re...

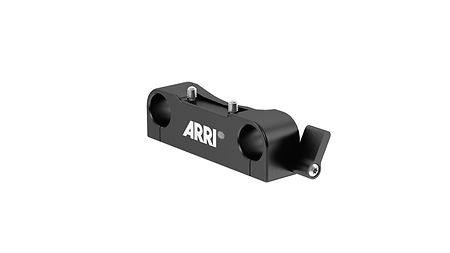

LMB 4x5 15mm Lightweight Support Console

K2.0013427

A screw-in standard 15 mm lightweight support console. Compatible with: LMB 4x5 143 mm clamp adapter LMB 4x5 Tilt and Flex Adapter
LMB 19mm Studio Rod Adapter

K2.0013432

A toolless screw-in 19 mm studio support adapter, compatible with following products: LMB 4x5 15 mm Lightweight Console LMB 4x5 Swing Away Tilt Module LMB 6x6 Clamp Adap...
LMB 15mm Studio Rod Adapter

K2.0013440

A toolless screw-in 15 mm studio support adapter, compatible with following products: LMB 4x5 15 mm Lightweight Console LMB 4x5 Swing Away Tilt Module LMB 6x6 Clamp Adap...

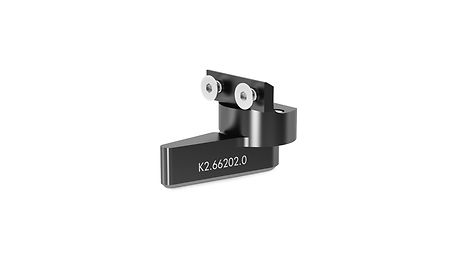

LMB 4x5 / LMB-6 Tray Catcher

K2.66202.0

Bottom-mounted to secure filter trays in place – compatible with LMB 4x5 / LMB-25 / LMB-6.

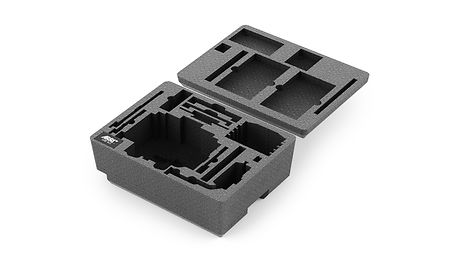

LMB 4x5 Foam Insert

K2.0023149

The foam insert for LMB 4x5 fits perfectly into the Peli Case 1560 and 1560M. It is included in all LMB 4x5 sets (LMB 4x5 Clamp-On Set 3-Stage, LMB 4x5 15mm LWS Set 3-Stage...

Clamp Adapter

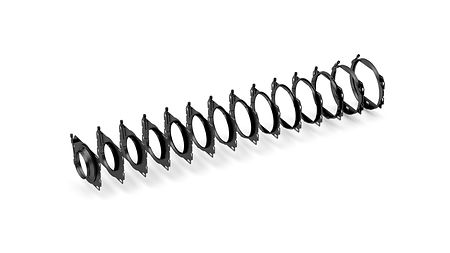

LMB 4x5 Clamp Adapter Set Pro

KK.0015133

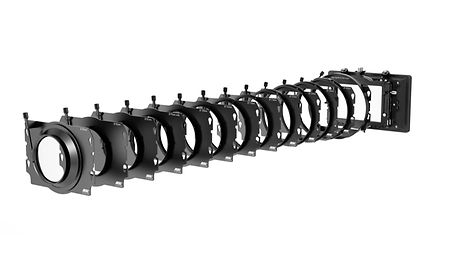

A set with all 14 existing LMB 4x5 clamp adapters
- Show Components

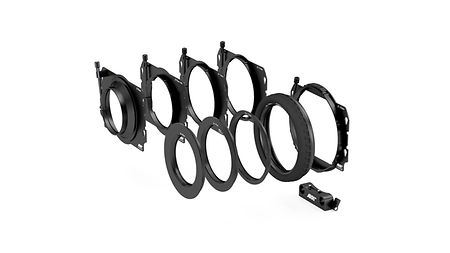

LMB 4x5 Clamp Adapter Basic LWS 15mm Set

KK.0041929

A set with the 4 most popular LMB 4x5 clamp adapters and in addition the 143mm adapter which provides the possibility to attach the LMB 4x5 on 15mm lightweight support rods...
- Show Components

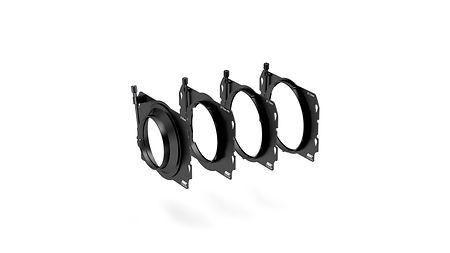

LMB 4x5 Clamp Adapter Set Basic

KK.0041934

A set with the 4 most popular LMB 4x5 clamp adapters to mount the LMB 4x5 to most focal lengths of the ARRI Signature Primes, Ultra Primes, Master Primes, Master Anamorphic...
- Show Components

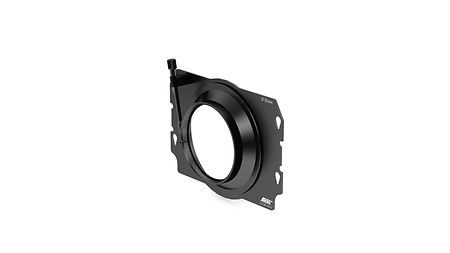

LMB 4x5 Clamp Adapter 80mm

K2.0014376

For Zeiss Standard and HS (Super Speed) lenses – compatible with LMB 4x5, LMB-5, LMB-15, and LMB-25.

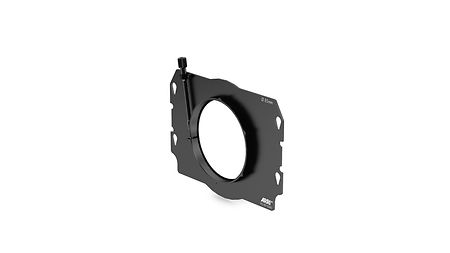

LMB 4x5 Clamp Adapter 85mm

K2.0015065

For Fujinon MK 18-55 mm, Celere Prime lenses – compatible with LMB 4x5, LMB-5, LMB-15, and LMB-25.

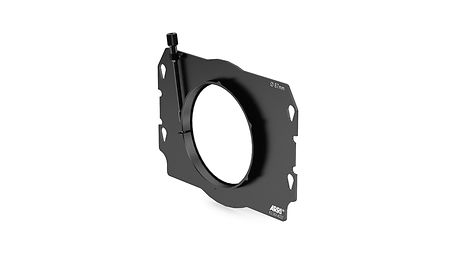

LMB 4x5 Clamp Adapter 87mm

K2.0014227

For Vario Sonnar and Cooke Mini S4/i lenses – compatible with LMB 4x5, LMB-5, LMB-15, and LMB-25.

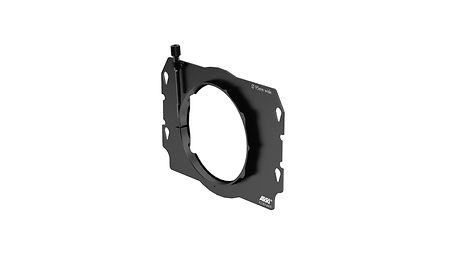

LMB 4x5 Clamp Adapter 95mm

K2.0014439

For Ultra Prime 16-135 mm, Leica Summilux and Summicron – compatible with LMB 4x5, LMB-5, LMB-15, and LMB-25.

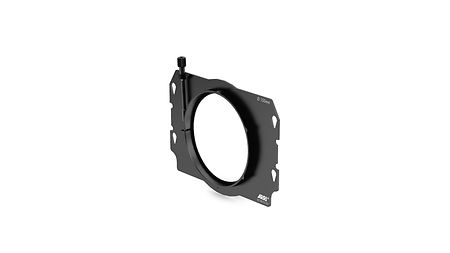

LMB 4x5 Clamp Adapter 100mm

K2.0015103

For Schneider Xenon FF Prime lenses – compatible with LMB 4x5, LMB-5, LMB-15, and LMB-25.

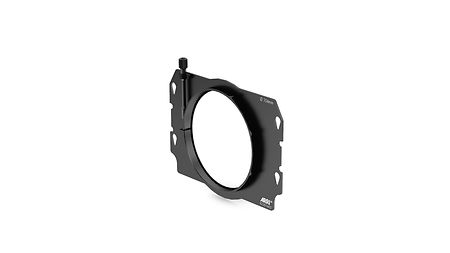

LMB 4x5 Clamp Adapter 104mm

K2.0014422

For LDS Ultra Prime 16-135 mm, Cine Xenar III – compatible with LMB 4x5, LMB-5, LMB-15, and LMB-25.

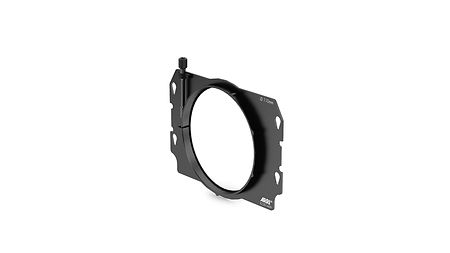

LMB 4x5 Clamp Adapter 110mm

K2.0014409

For Cooke S4 lenses – compatible with LMB 4x5, LMB-5, LMB-15, and LMB-25.

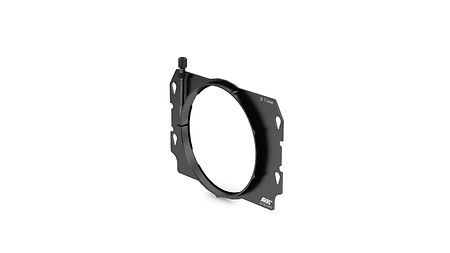

LMB 4x5 Clamp Adapter 114mm

K2.0014396

For Master Primes, Master Anamorphics, UP 14 mm, UP 180 mm, LDS-UP 14 mm, LDS-UP 180 mm, ALURA Lightweight Zooms, and many other zoom and prime lenses – compatible with LMB...

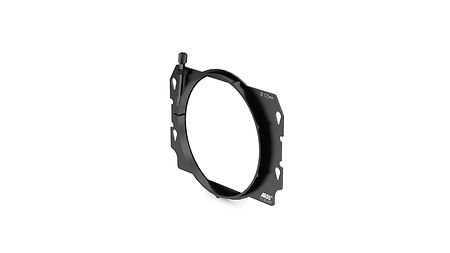

LMB 4x5 Clamp Adapter 125mm

K2.0014377

For Hawk 60-135 mm, Cooke S4/i 150 mm – compatible with LMB 4x5, LMB-5, LMB-15, and LMB-25.

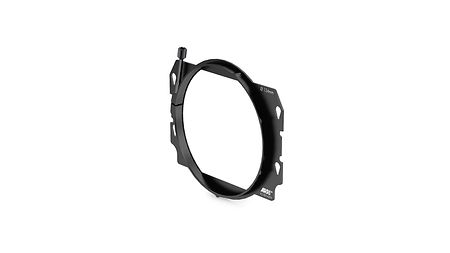

LMB 4x5 Clamp Adapter 134mm

K2.0014359

For ALURA Studio Zooms 18-80 mm, 45-250 mm and Fujinon Premier zoom lenses - compatible with LMB 4x5, LMB-5, LMB-15, and LMB-25.

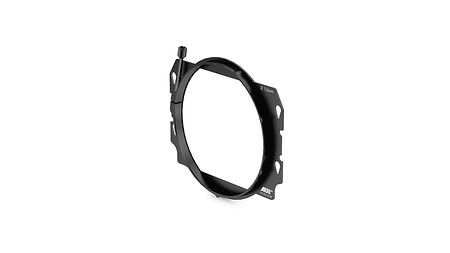

LMB 4x5 Clamp Adapter 136mm

K2.0014348

For Canon Zoom 14.5-60 mm, 30-300 mm, Angenieux 25-250 mm – compatible with LMB 4x5, LMB-5, LMB-15, and LMB-25.

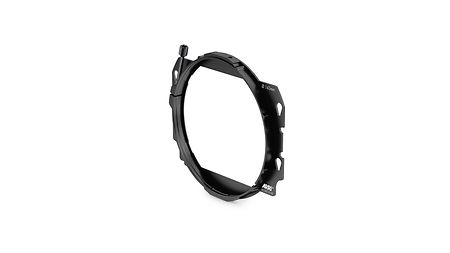

LMB 4x5 Clamp Adapter 143mm

K2.0014168

To use with R2 rings in combination with the LMB 4x5 15 mm LWS console or with R11 clamp-on rings (Ø 143 mm to…mm). The LMB 4x5 15 mm LWS console can be mounted either on t...

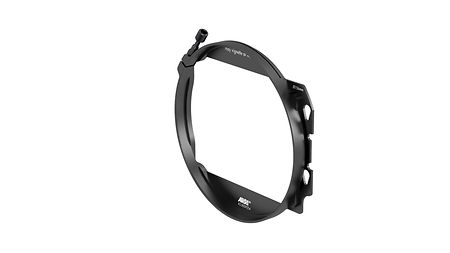

LMB 4x5 Clamp Adapter 156mm

K2.0039254

The adapter is compatible with the LMB 4x5 in 2-stage (Basic Module) and LMB-15. It is not compatible with LMB-5 and LMB-25. It fits all lenses with a 156mm front diamete...

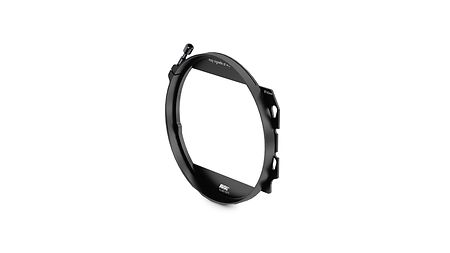

LMB 4x5 Clamp Adapter 162mm

K2.0015075

For Angenieux Optimo 24-290 mm and 28-340 mm – may vignette in wide angles. Compatible with LMB 4x5 basic module and LMB-15. Not compatible with LMB-5, LMB-25 and extra fil...

Filter Frames

Rota Pola Filter Frame 4x5.65

K2.0009434

The Rota Pola Filter Frame 4x5.65 has the same width as a regular F4 filter frame and therefore, only takes the space of one filter in a filter stage. Ships in a filter pou...
LMB F4 Filter Frame 4x5.65/4x4in

K2.0021499

For use with LMB 4x5, LMB-25 and MMB-2.
Anti-Reflection Frame 4X5.65 in

K2.0008133

Allows one or two glass filters to be stacked and angled, providing a quick and elegant solution for reducing unwanted reflections. Fits in a 2-stage slot of a filter stage...
LMB 4x5 Filter Frame 4x4in

K2.0015551

For use with LMB 4x5, LMB-25, MB-19
Filter Frame 5,65x5,65in

K2.66036.0

Compatible with LMB 4x5, LMB-25 and MMB-2. For use with 4x5,65 filter vertically or 5,65x5,65 filter
Filter Frame Combo 4x5.65in/5x5in

K2.66037.0

For use with 4x5,65 filter vertically or 5x5 filter with LMB 4x5, LMB-25, LMB-15, LMB-5 and MB-19.
Filter Frame Combo 4x5.65/4x4in

K2.65230.0
Filter Frame 5x5in

K2.65183.0

Compatible with LMB 4x5, LMB-25 and MMB-2.
