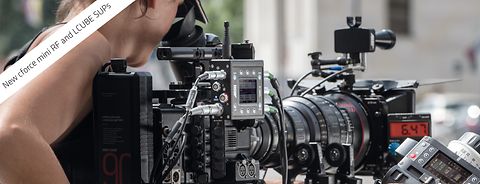

UMC-4 Camera Control Unit mounted on Camera

Motor Controllers

RIA‑1, cforce mini RF and UMC-4

RIA-1_Teaser_Image_left
A hub for the Hi-5 ecosystem

Capable of functioning as a receiver, transmitter, or motor controller, the RIA‑1 Radio Interface Adapter is a highly versatile component in the Hi‑5 ecosystem. Compact and robust, it supports ARRI's exchangeable radio modules and provides multiple connectors for wireless control of ARRI or third-party cameras and lenses.

Show more

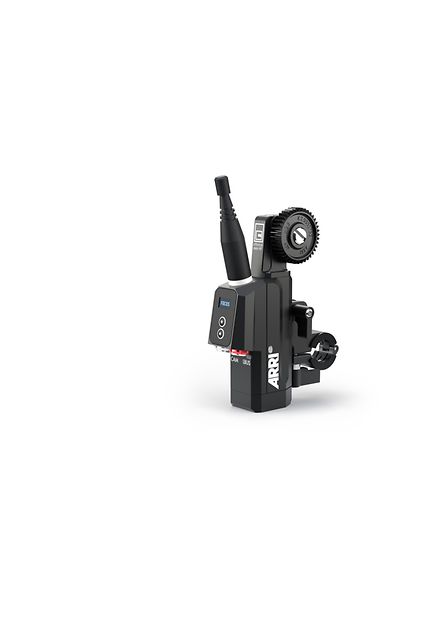

cforce mini RF motor_animation header

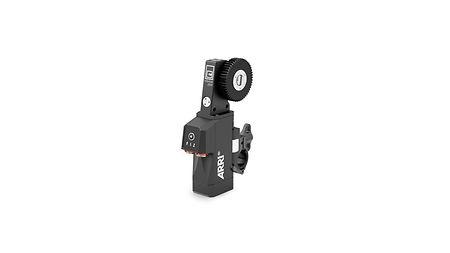

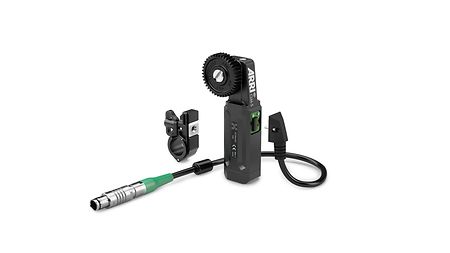

cforce mini RF motor

This integrated RF-EMIP radio module offers wireless connectivity directly to a Hi‑5 or similar hand unit, removing the need for bulky motor controllers. Lens data files are supported internally, and camera control of ARRI, Sony, and RED cameras is possible. The cforce mini RF is also one of our fastest motors, offering a top speed of 240 teeth/sec.

Show more
Animation Teaser_UMC-4_left
Lens Data for Set and Post

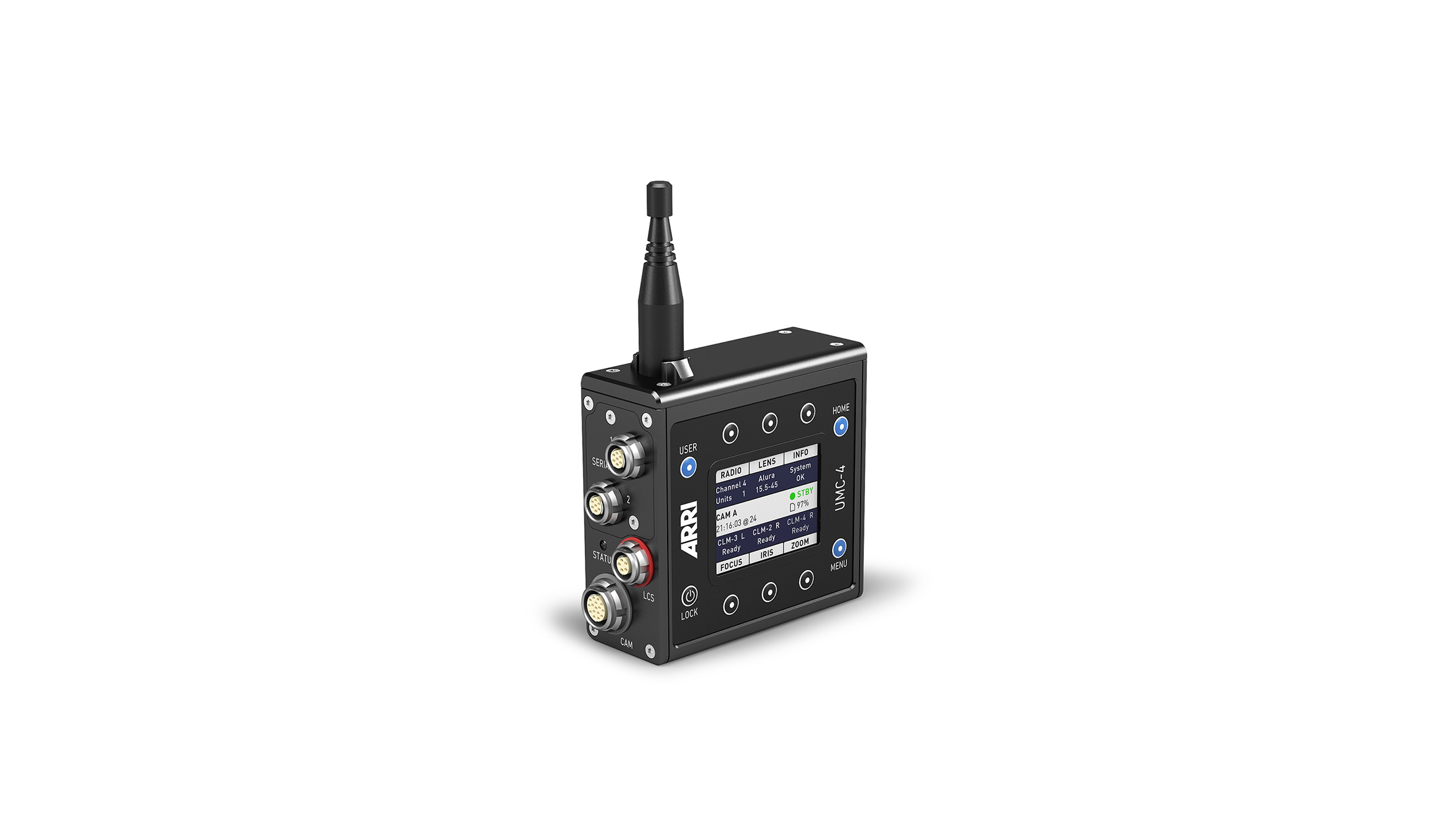

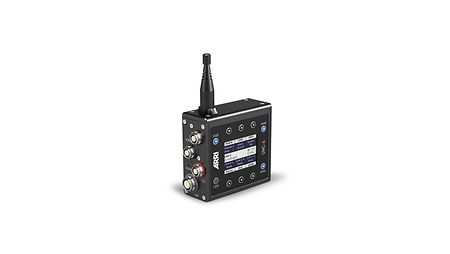

The Universal Motor Controller UMC-4 controls focus, iris and zoom on any camera and provides vital lens data and tilt-and-roll information for set and VFX postproduction.

Features

Best overall production value UMC-4

  • 3 Axis Lens Control: The Universal Motor Controller UMC-4 is an advanced 3-axis motor controller. Up to three different hand units can connect to the UMC-4 at the same time, controlling focus, iris and zoom on any camera.
  • Lens Data: The UMC-4 incorporates the LDS Lens Data Archive and generates frame-accurate lens data with any lens. Lens data is used for lens mapping to pre-marked focus rings and depth-of-field display on the Hi‑5 and WCU‑4 hand unit.

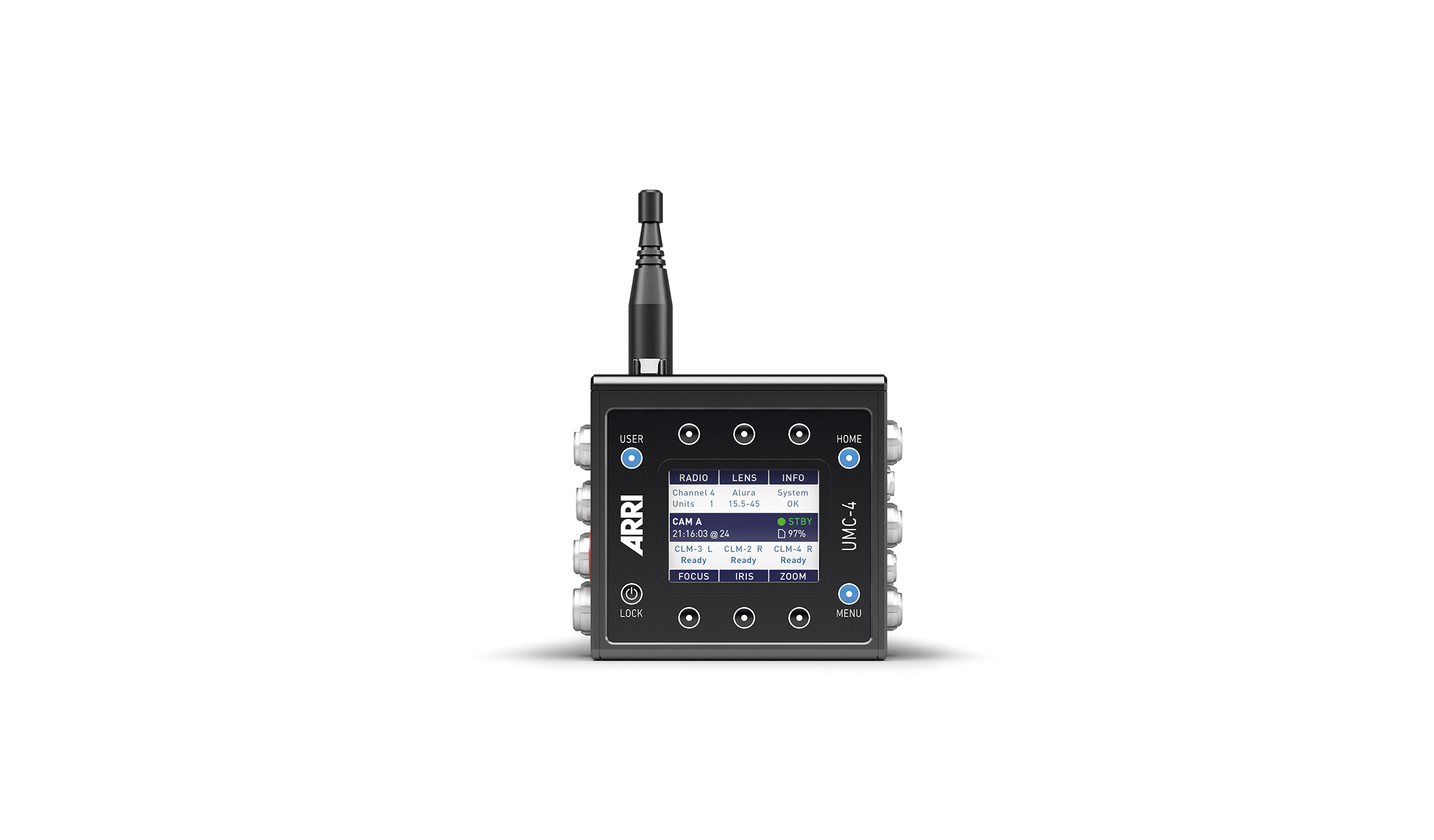

K2.0002058-3-Universal-Motor-Controller-UMC-4-LDS

Useful features UMC-4

  • Timecode: The UMC-4 supports internal and external timecode that is recorded with frame-accurate lens data onto SD card, making the lens data usable for postproduction. The internal timecode clock can be jam-synced from external devices, but can output LTC timecode as well.
  • Multiple Interfaces: The UMC-4 includes multiple interfaces for maximum flexibility on set. Two serial interfaces connect peripheral equipment such as ARRI’s UDM‑1 distance measure or motion control systems.
  • Override Function: Supports the OCU‑1 and Master Grips lens control override feature of the Hi‑5 and WCU‑4 hand unit.
K2.0002058-Universal-Motor-Controller-UMC-4-LDS

Compatibility

RIA‑1 in Host mode as a motor controller and communication gateway with an ALEXA 35 camera

Chart of the ARRI Hi-5 handheld camera control unit in combination with several products.

Hi‑5 connected to RIA‑1 (Host) for ALEXA Mini LF camera and lens control

ALEXA_MINI_LF_08 (2)

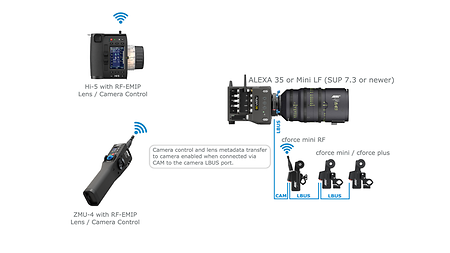

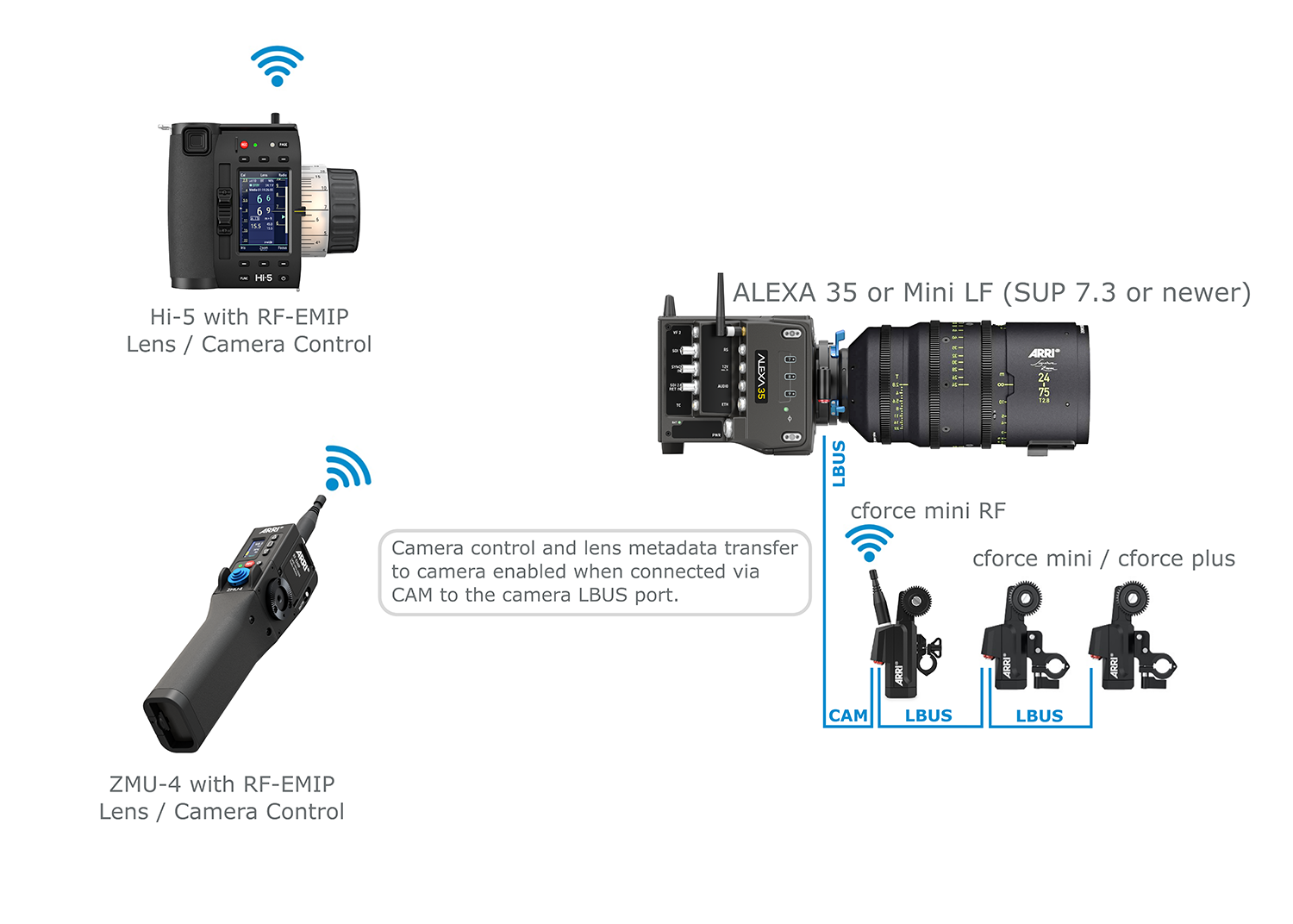

cforce mini RF as a radio host on an ALEXA 35 or ALEXA Mini LF (SUP 7.3 or newer)


Config 01

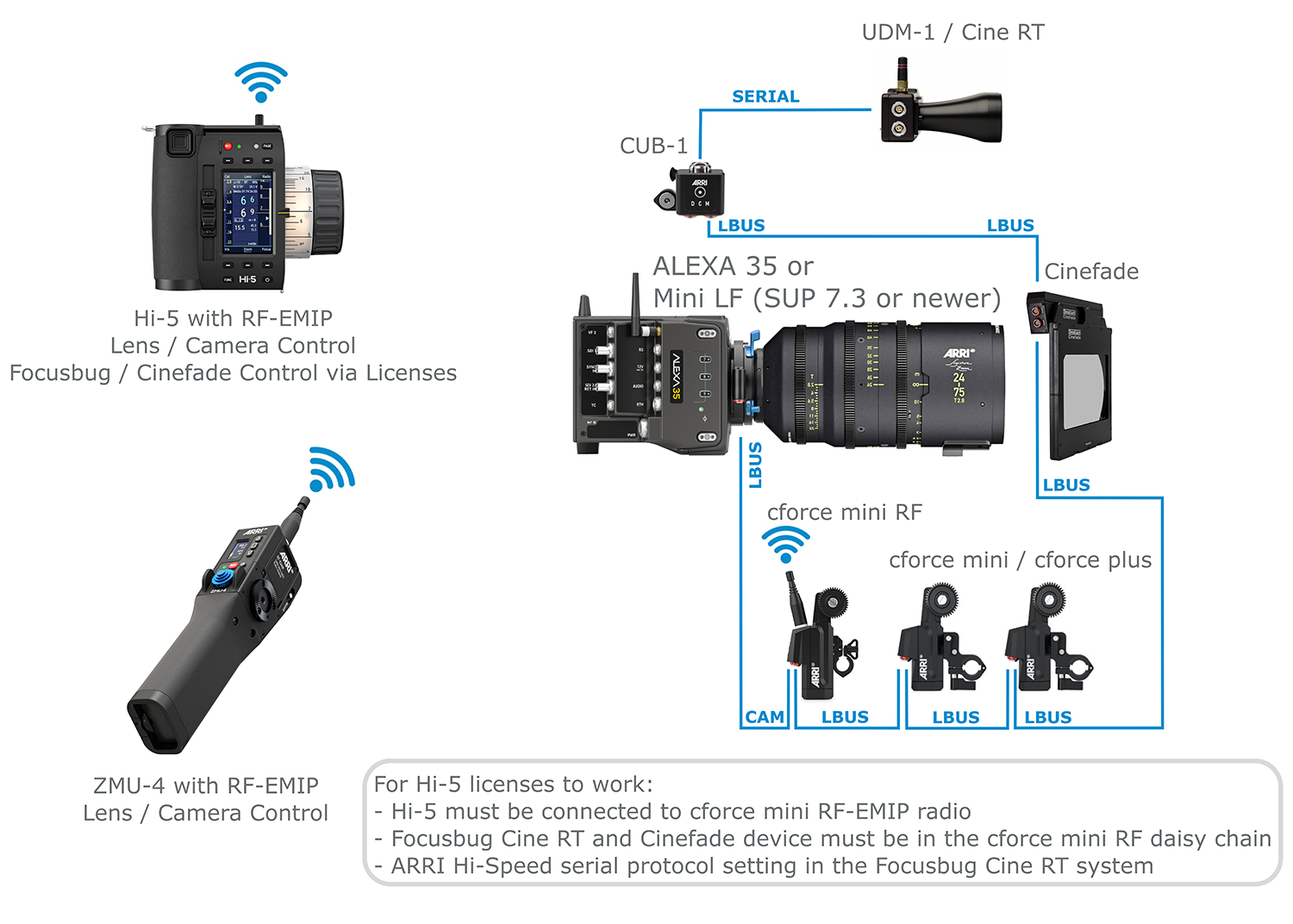

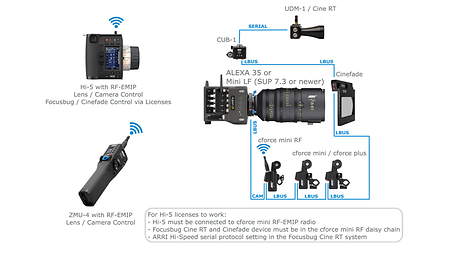

Focusbug and Cinefade with a cforce mini RF as a radio host on an ALEXA 35 or ALEXA Mini LF (SUP 7.3 or newer)


Config 03 (1)

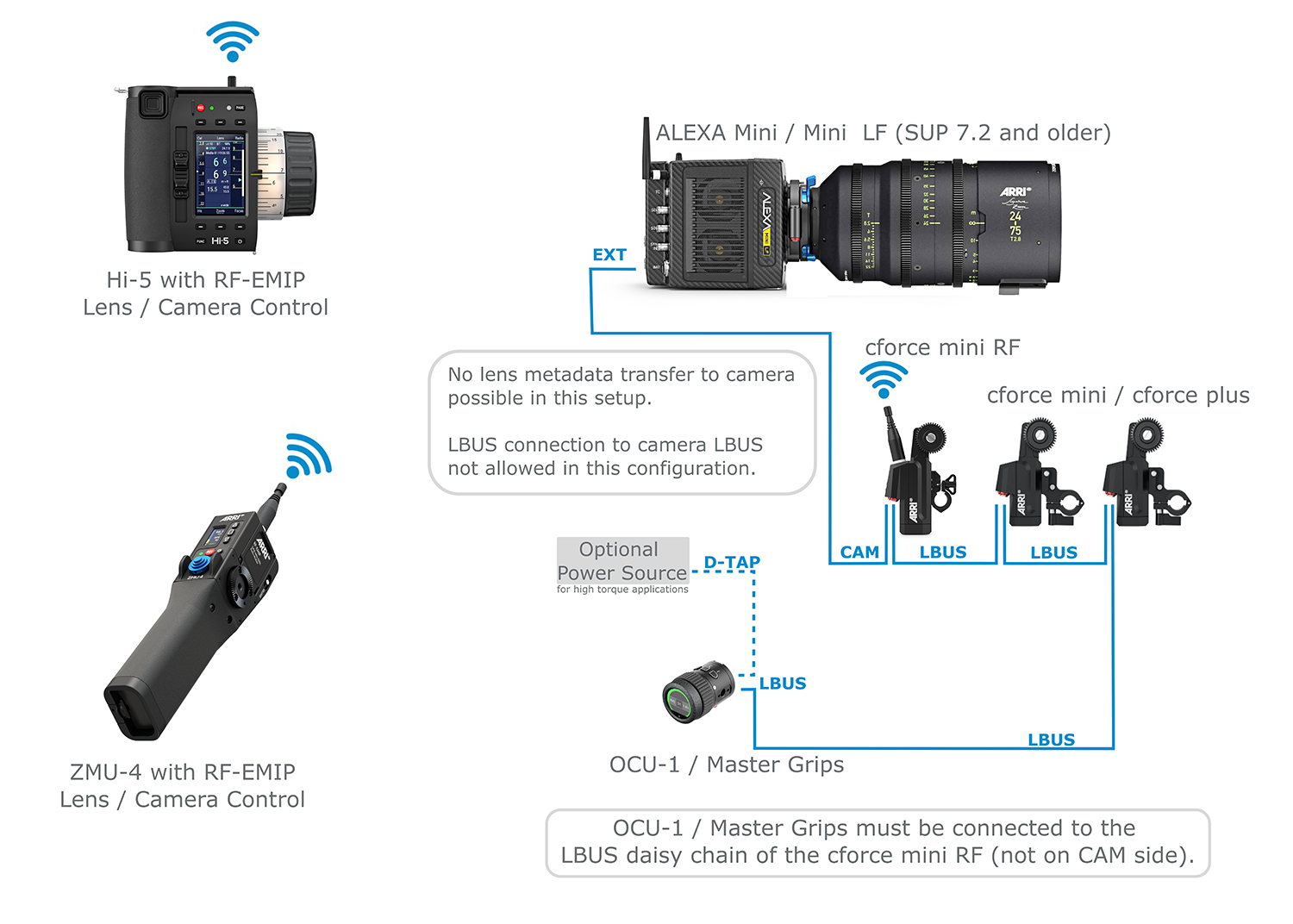

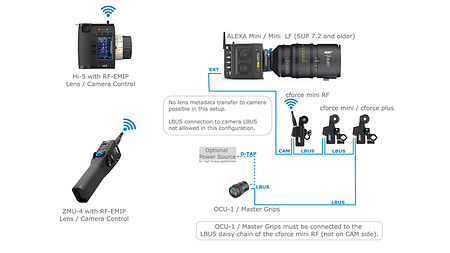

OCU‑1 with a cforce mini RF as a radio host on an ALEXA Mini or ALEXA Mini LF (SUP 7.2 or older)


Config 05

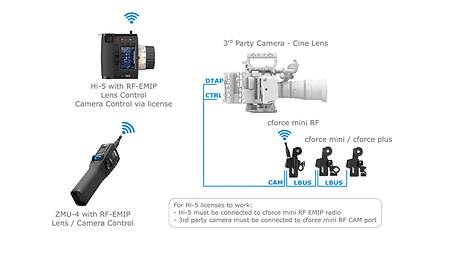

OCU‑1 with a cforce mini RF as a radio host on a 3rd party camera with cine lens


Config 07

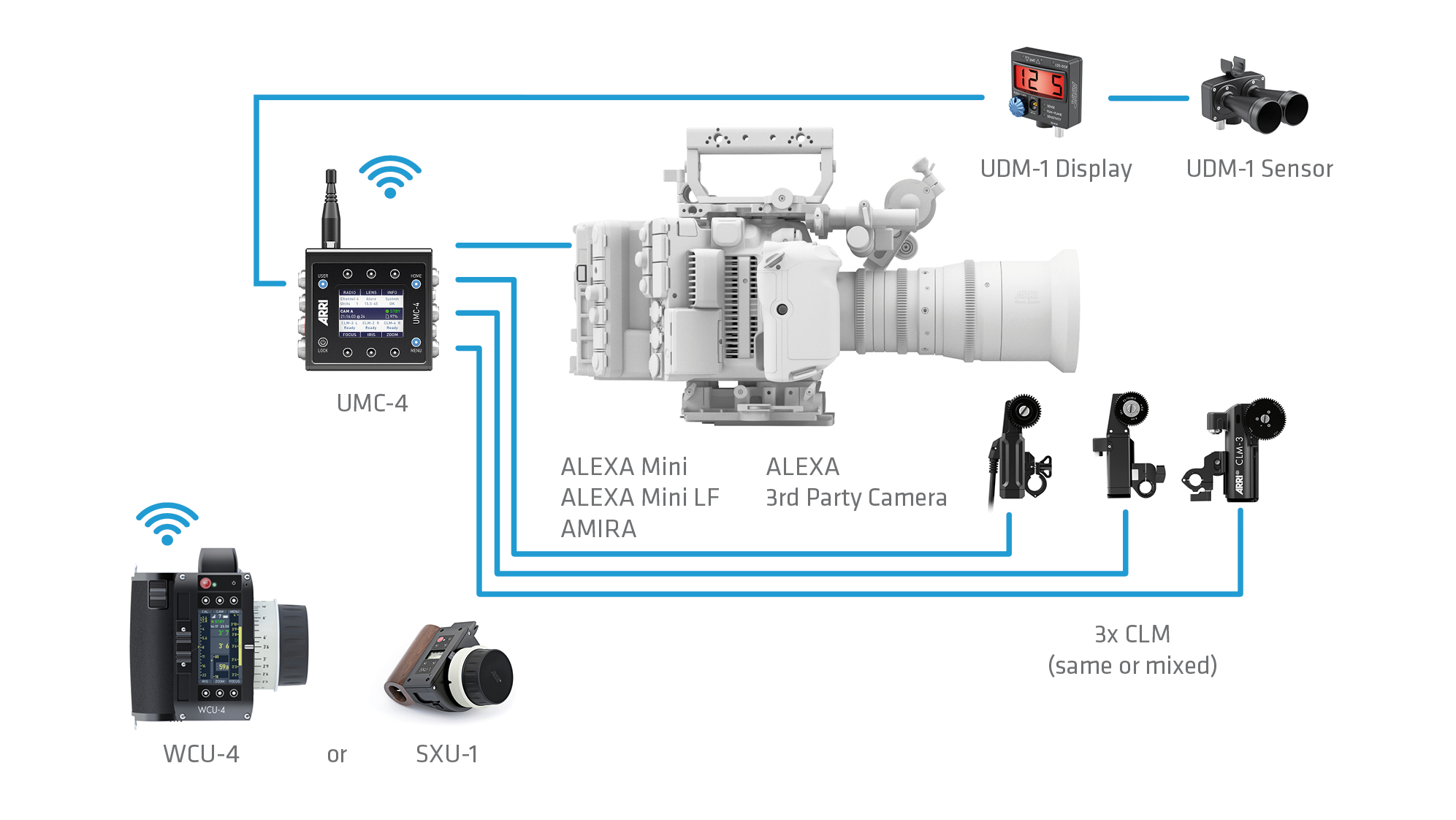

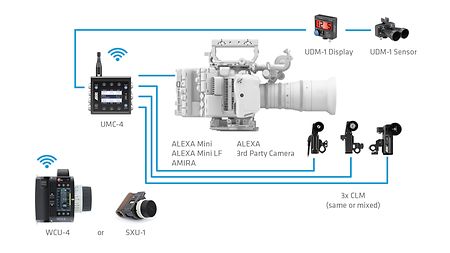

UMC-4 + CLM motors

Override Function available

ECS Comp Chart - UMC-4 - 01

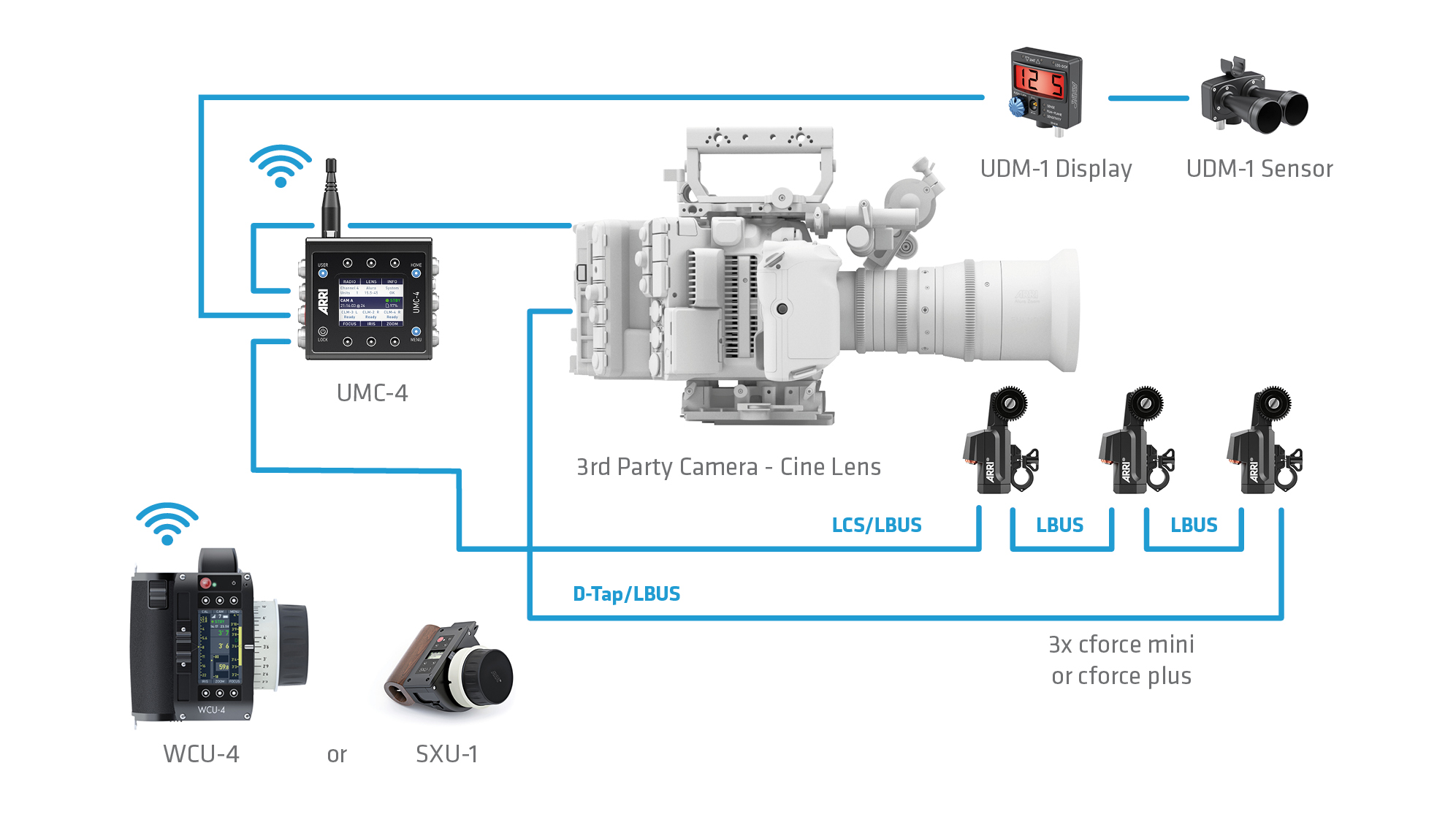

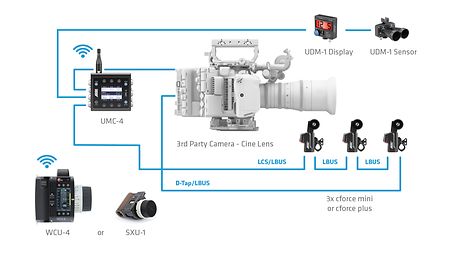

UMC-4 + cforce mini/plus motors

Override Function available

ECS Comp Chart - UMC-4 - 02

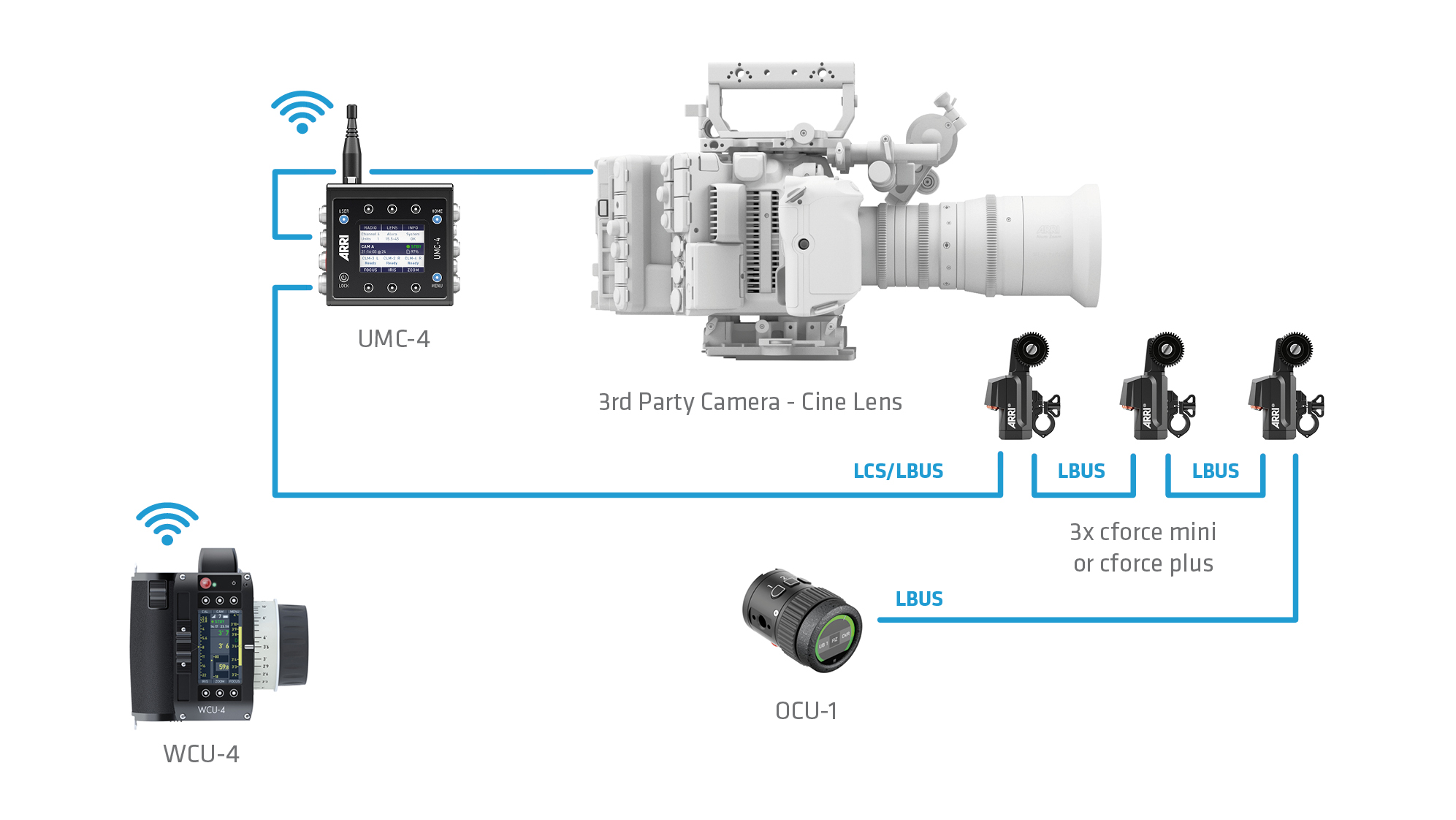

OCU‑1 – UMC-4 + cforce mini/plus motors

Override Function available

ECS Comp Chart - OCU - 05

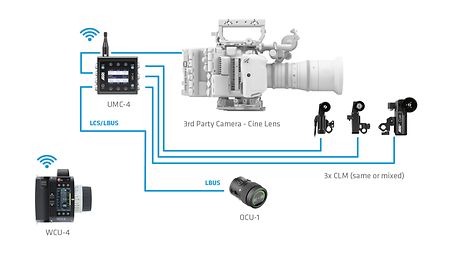

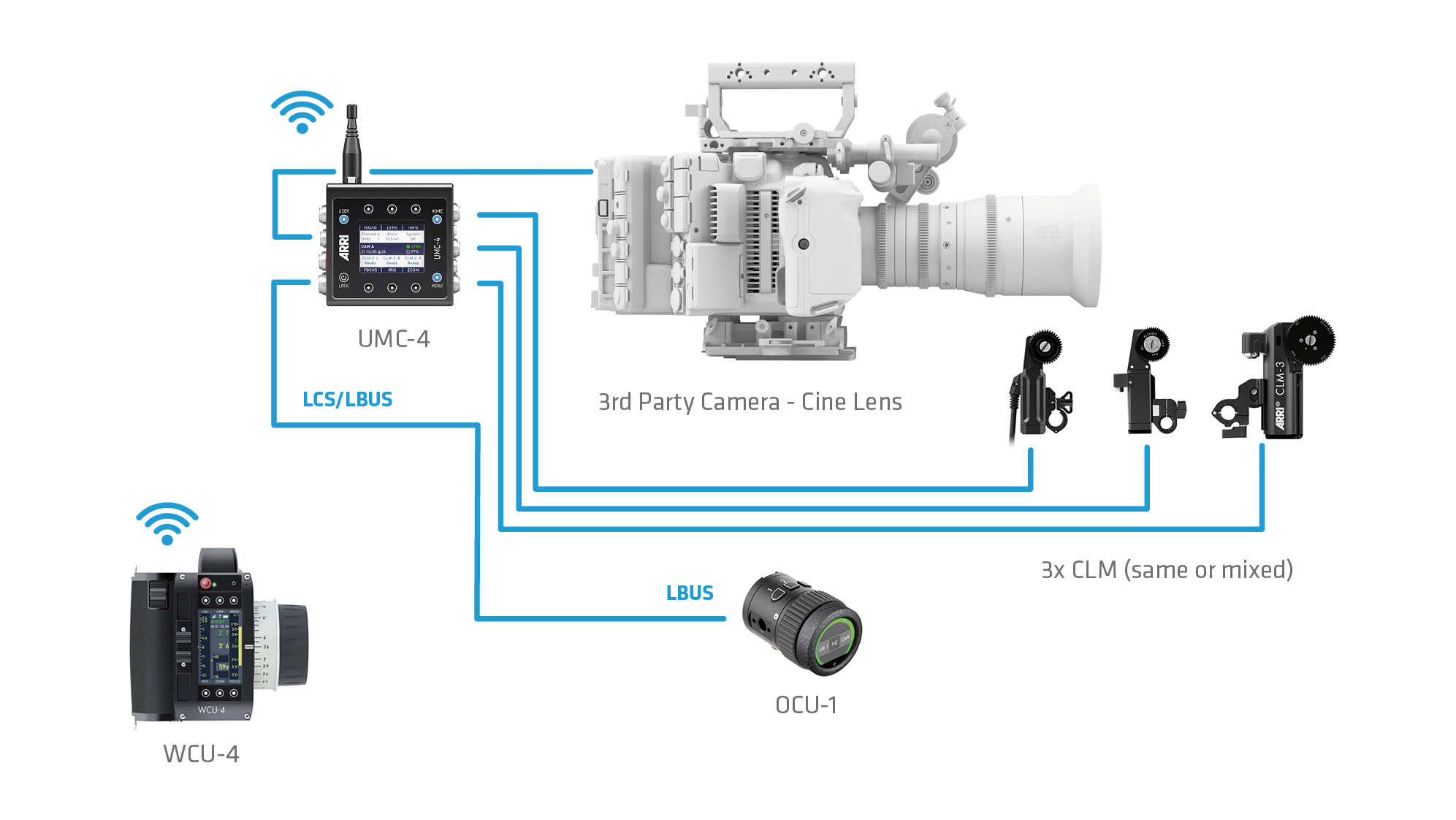

OCU‑1 – UMC-4 + CLM motors

Override Function available

ECS Comp Chart - OCU - 04

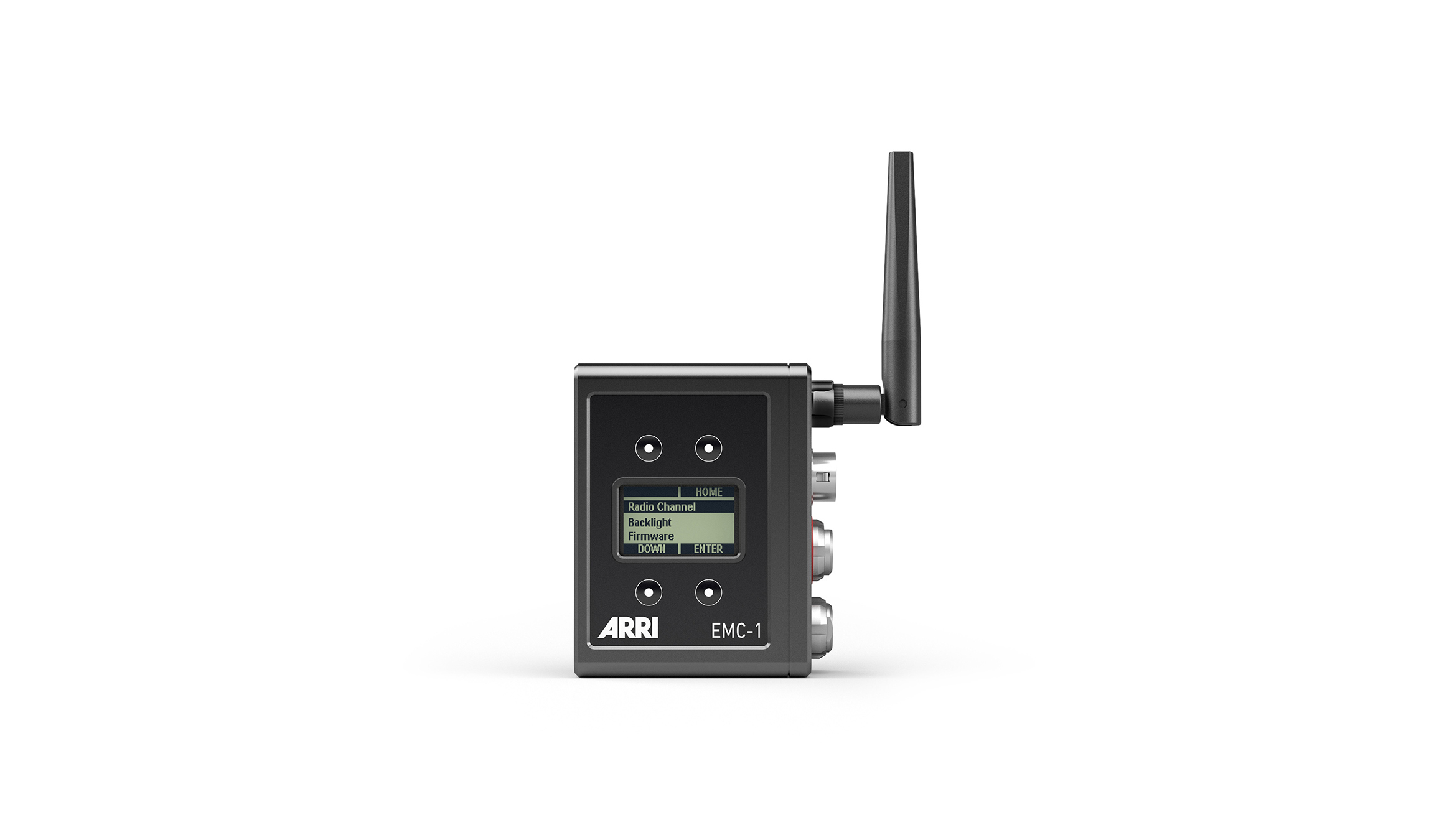

EMC-1

UMC-4

UMC-4 Antenna

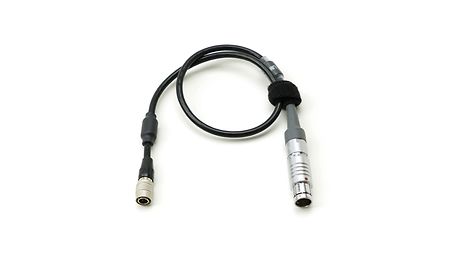

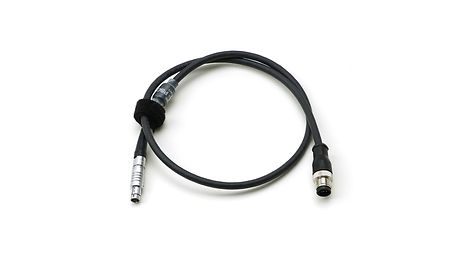

UMC-4 Cables

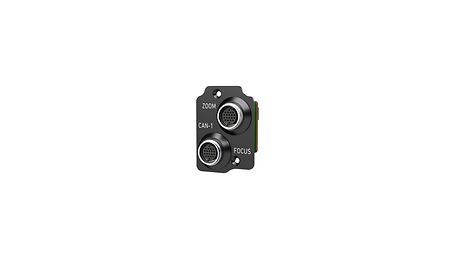

UMC-4 Modules

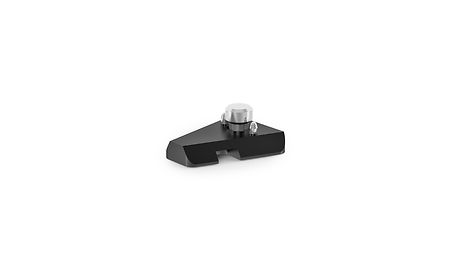

UMC-4 Mounting Parts
