ARRI ALEXA Modes

Great Light from Fixture to Frame

Combining the color science expertise of our camera and lighting teams has led us to the creation of ARRI ALEXA Modes for our premium LED fixtures. By taking the specific characteristics of the ALEXA sensor into account, we can optimize our lights for the camera, so that skin tones appear more natural, and colors are more accurately portrayed.

Physics and background knowledge

The Color Rendering Index (CRI) as well as the Color Fidelity Index (Rf, TM30-20) reflect the accuracy with which colors appear under artificial lighting compared to a natural or ideal light source. Being a benchmark for color fidelity, they provide a numerical score (up to 100) that indicates how accurately colors are rendered. CRI and Rf are based solely on human perception, and do not directly translate to how well a camera "sees" color. This can lead to deviations within the color pipeline and leaves room for improvement. This is where ARRI’s expertise in both image science and lighting technology comes into play.

As a manufacturer for both lighting and camera equipment, ARRI can take a more integrated approach to ensure accurate color reproduction: the ALEXA Modes allow for improved color rendering by tailoring the light output to match the way our camera sensor’s interpret color to deliver the best quality and in the end the most natural result to the viewer. For example, a camera might see a slight green where the human eye sees warmth (amber or yellow).

ARRI is always aiming for the best overall image quality, so our products are constantly being optimized to deliver the best color quality right on set.

Share the passion
M26-Alexa-Modes

Products and software

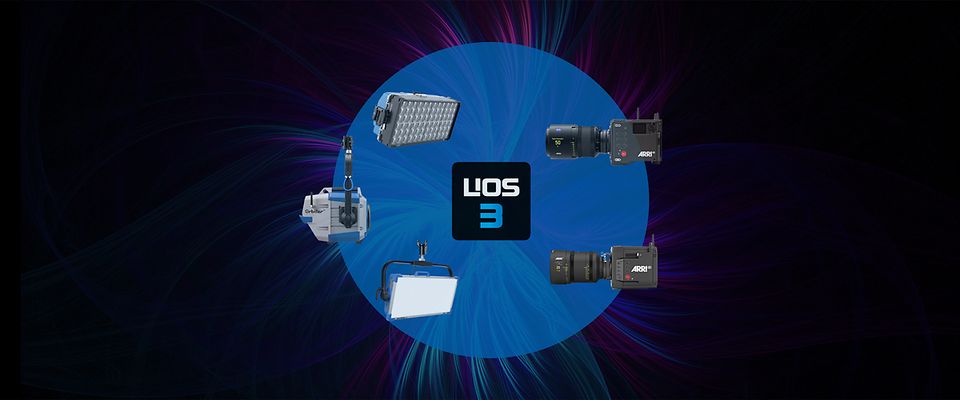

ARRI ALEXA Modes are available since the launch for the SkyPanel X and the SkyPanel Pro. For the Orbiter, ARRI ALEXA Modes are available with LiOS3.1 and beyond. The ARRI ALEXA Modes refer to both ALEXA ALEV 3 and ALEV 4 sensors.

Modes with added value

There are three ARRI ALEXA Modes available:

  • ARRI ALEXA Standard
  • ARRI ALEXA Vari Fan
  • ARRI ALEXA High Output

In these ARRI ALEXA Modes, the color is optimized for the best performance with the camera sensor. In the other operational modes, color is optimized for the best performance to the human eye. SkyPanel X, SkyPanel S60 Pro, and Orbiter have great color, plus the added benefit of the ARRI ALEXA Modes for shooting on our cameras.

Watch ARRI Tech Tip

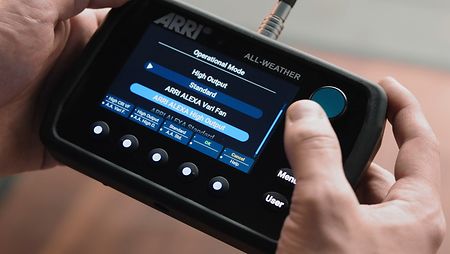

Screen ALEXA Modes

Modes comparison

Mode settings

CRI Mode:

Best quality as seen by the human eye

ARRI ALEXA Mode:

Best quality as seen by ALEV3/ALEV4 sensors

Fan
 StandardARRI ALEXA StandardLow
 High CRI VariFanARRI ALEXA VariFanVariable
 High OutputARRI ALEXA High OutputHigh
  • ARRI ALEXA Modes are an optimization of ARRI lights for the way the camera’s sensor sees color. The result is a closer match to tungsten or daylight sources for the camera.
  • Use CRI mode when working with ARRI Lighting and 3rd party LED fixtures in a mixed lighting situation on set.

Discover ARRI ALEXA Modes

The images below show an extreme example of this difference in color rendition. SkyPanel X High Output mode delivers maximum intensity with a warmth that is appealing to the human eye. This warmth reads differently to the camera, which ARRI ALEXA High Output mode compensates.

SkyPanel X ARRI ALEXA High Output 3200 CCT
SkyPanel X High Output 3200 CCT
SkyPanel X High Output 3200 CCT
SkyPanel X ARRI ALEXA High Output 3200 CCT

Discover ARRI ALEXA Modes

The images below show an extreme example of this difference in color rendition. SkyPanel X High Output mode delivers maximum intensity with a warmth that is appealing to the human eye. This warmth reads differently to the camera, which ARRI ALEXA High Output mode compensates.

SkyPanel X ARRI ALEXA High Output 3200 CCT
SkyPanel X High Output 3200 CCT
SkyPanel X High Output 3200 CCT
SkyPanel X ARRI ALEXA High Output 3200 CCT

Practical recommendation



Consider using ARRI ALEXA Modes:

When shooting with an ALEXA or AMIRA camera in a controlled environment, with SkyPanel X, SkyPanel Pro and Orbiter only.

When shooting with an ALEXA or AMIRA while mixing other types of sources. (sunlight, ambient daylight, tungsten, HMI, etc.)

If you happen to be using a different camera, and are lighting with SkyPanel X, SkyPanel Pro and Orbiter, ARRI ALEXA Mode still is worth a look.



Consider using CRI Mode:

When using other brands’  LED fixtures alongside SkyPanel X, SkyPanel Pro and Orbiter (mixed LED sources).

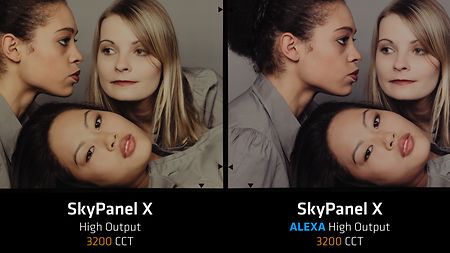

Video comparison

Each light mode offers a matching ARRI ALEXA Mode. Although named for ARRI cameras, this mode may also enhance color rendering on non-ARRI cameras. We recommend testing to explore how it could benefit your setup.

Watch the full video and compare the different modes yourself:
