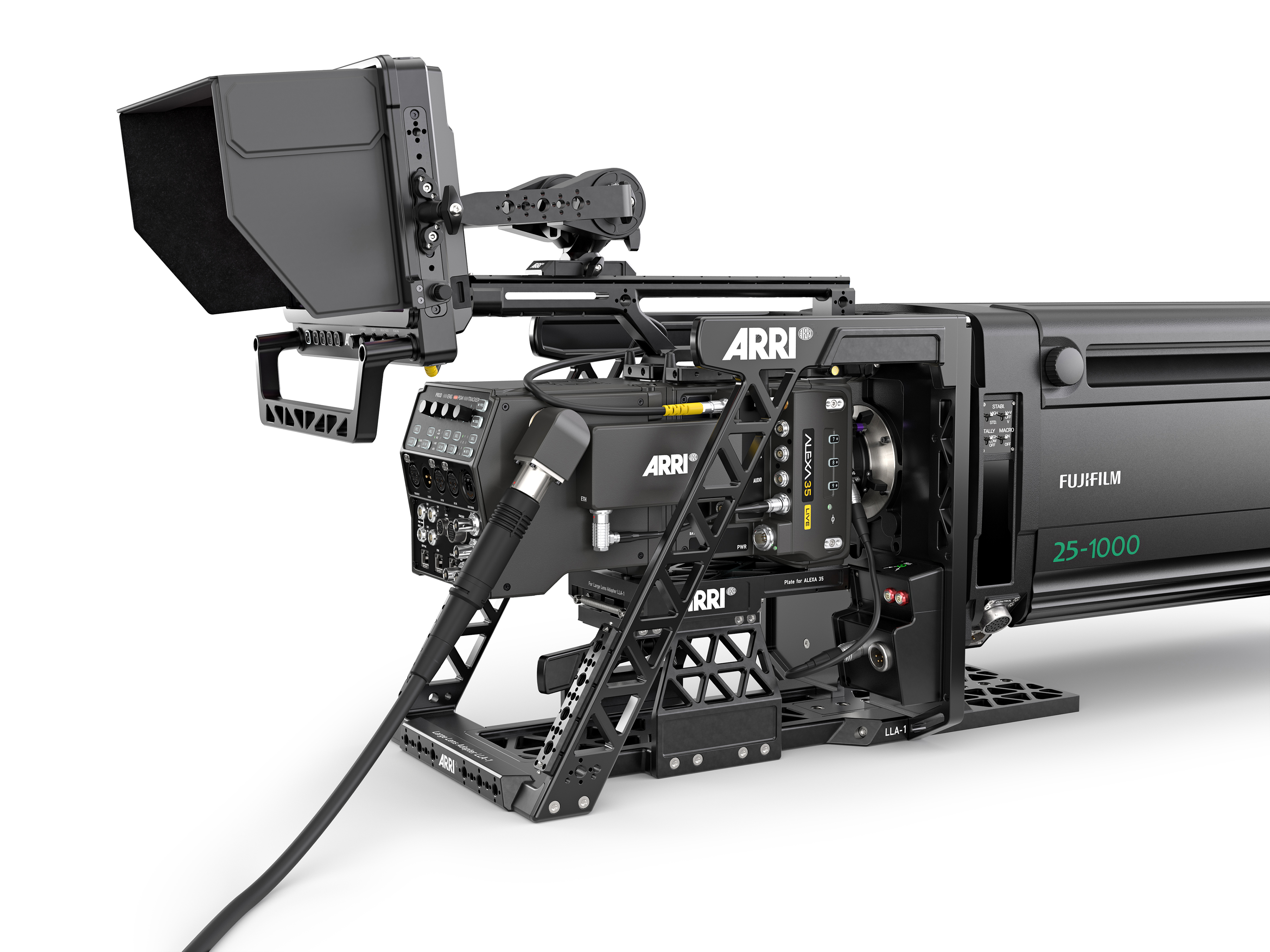

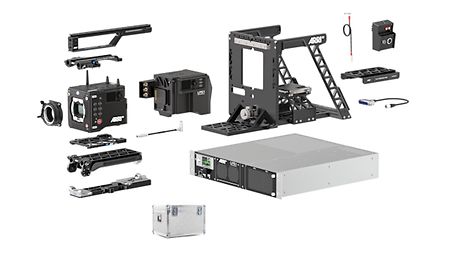

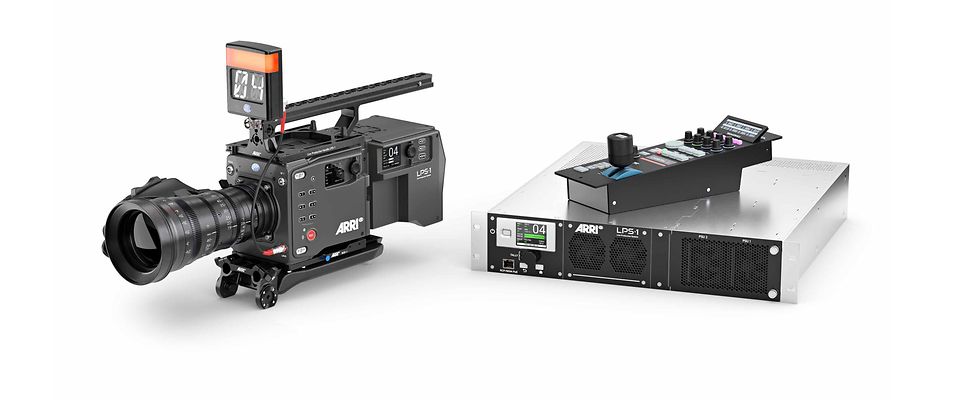

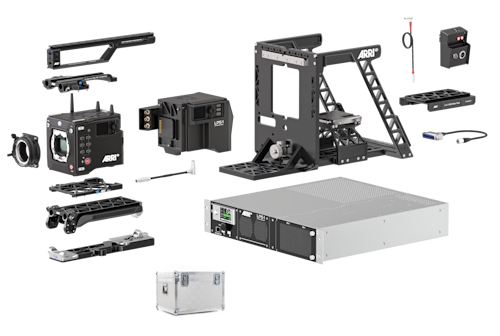

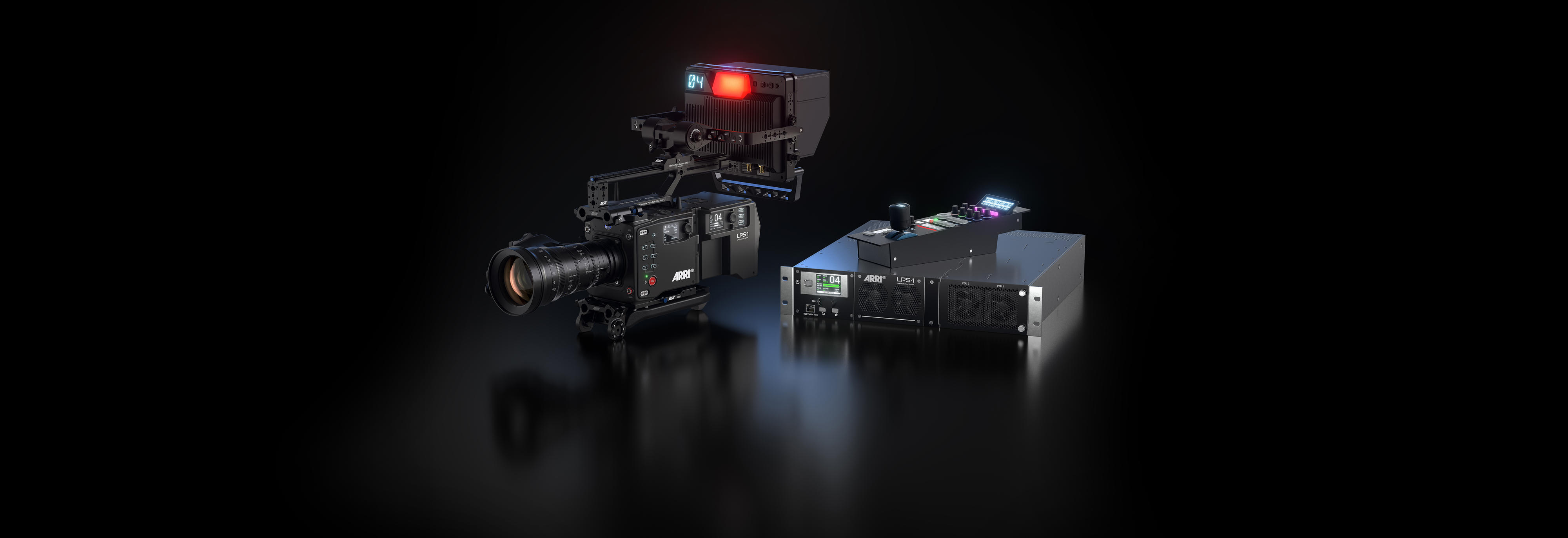

ALEXA 35 Live - Multicam System

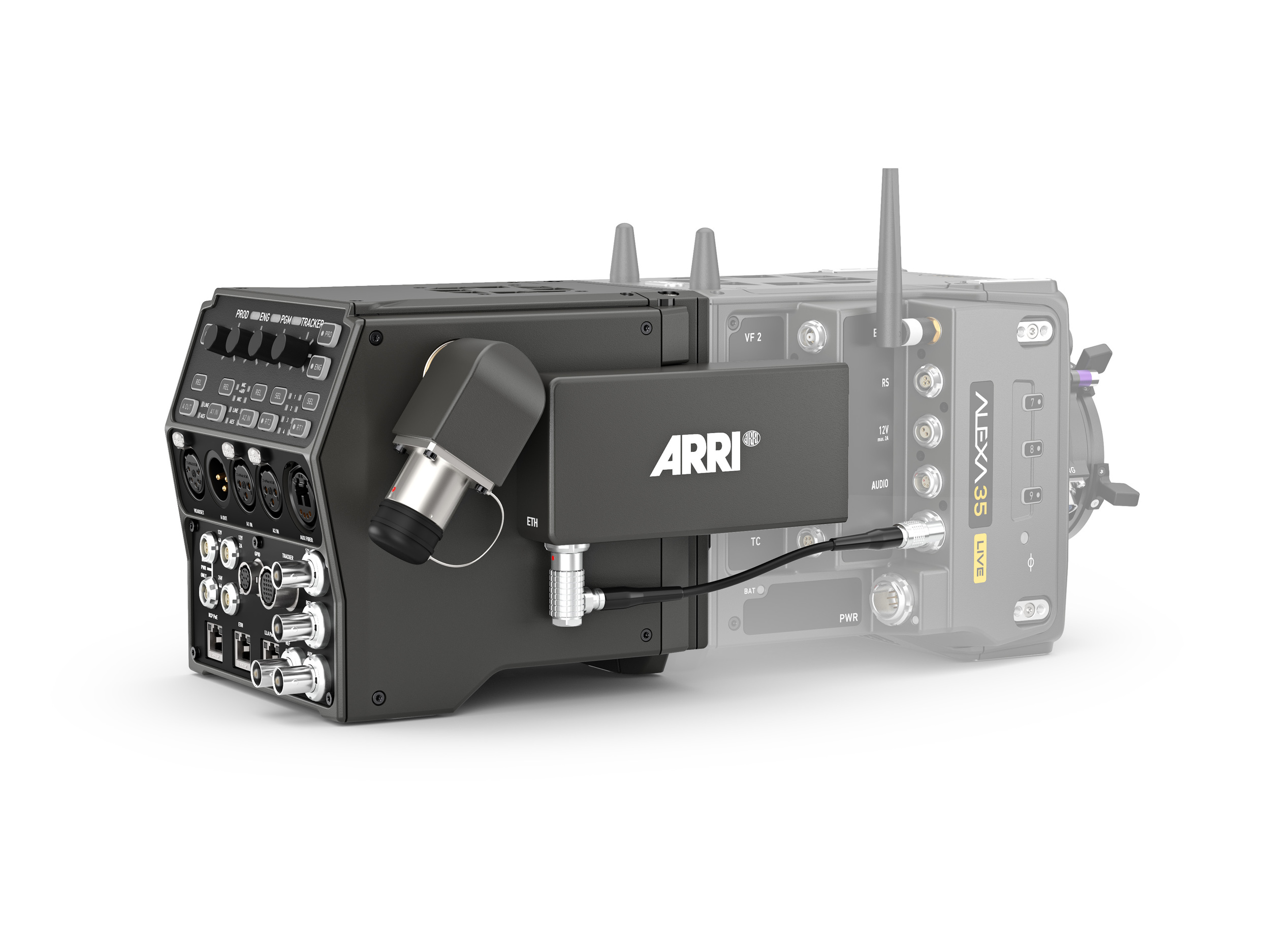

Fiber Camera Adapter

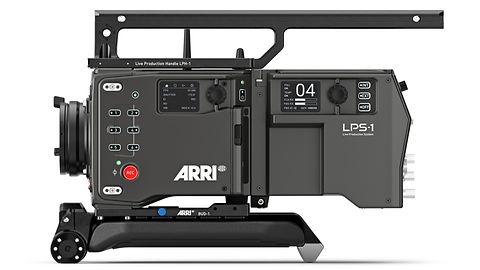

The Fiber Camera Adapter of the ALEXA 35 Live - Multicam System attaches to the camera quickly and simply. Once in place, it harmoniously extends the ALEXA 35 Live body to create a pleasing, unified form factor that is easy to work with.

Minimal cabling
Locking into place via a satisfyingly robust and self-aligning mechanical interface, the Fiber Camera Adapter then connects to the camera externally with a single FCA-to-Ethernet cable.

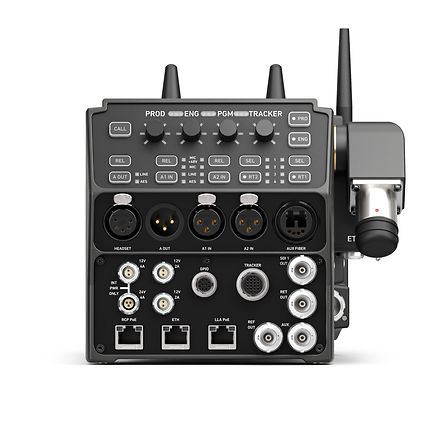

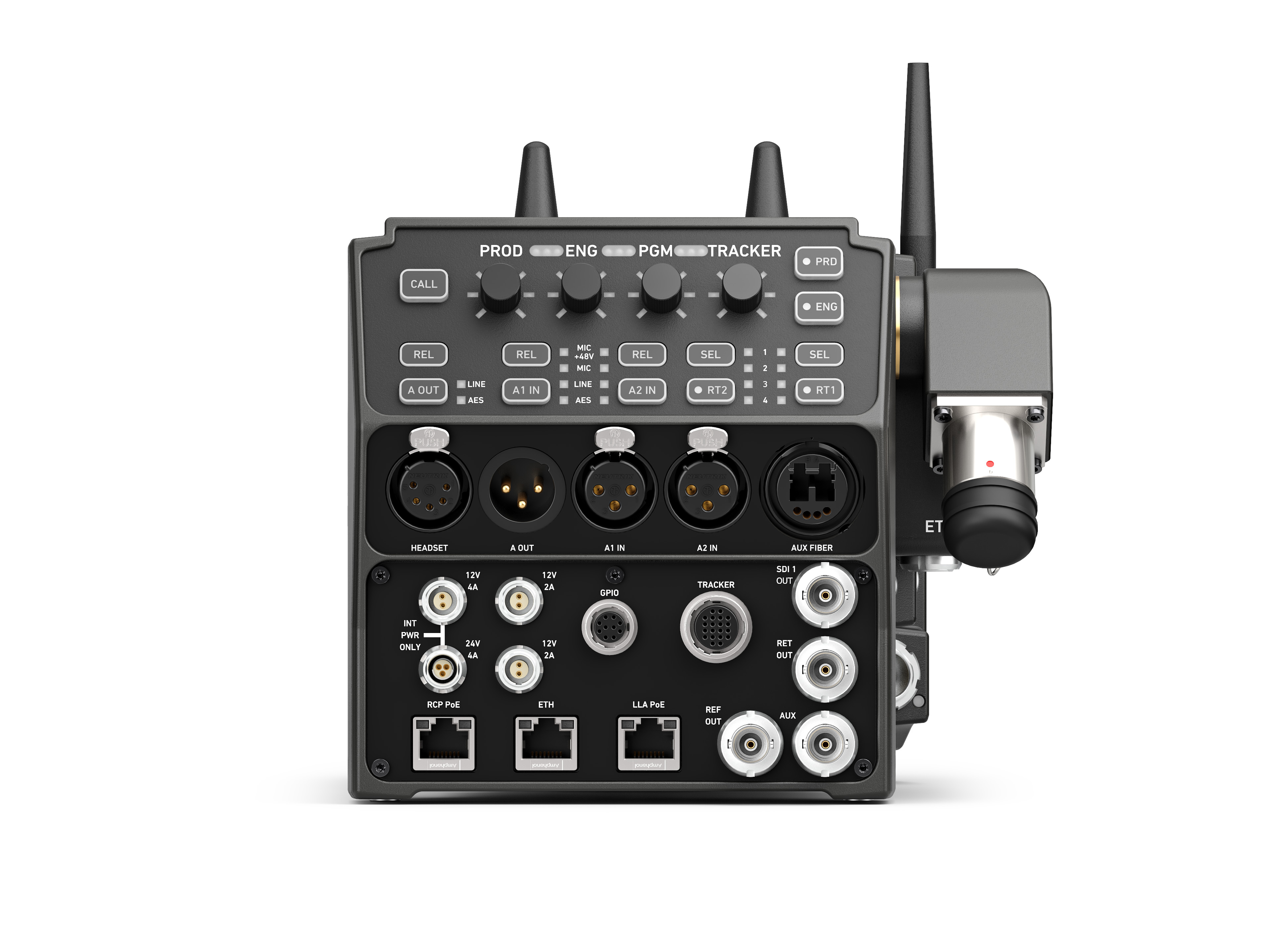

Familiar connections and intuitive controls
The Fiber Camera Adapter features a full complement of industry-standard interfaces such as SMPTE 311, 2-channel intercom, 4x RETURN video inputs selectable on two separate controls, GPIO, TRACKER, and comprehensive audio connectivity including LINE or AES outputs and AES, LINE, or MIC level input with selectable +48 V phantom power.

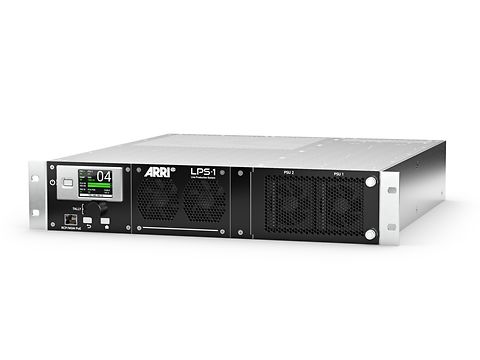

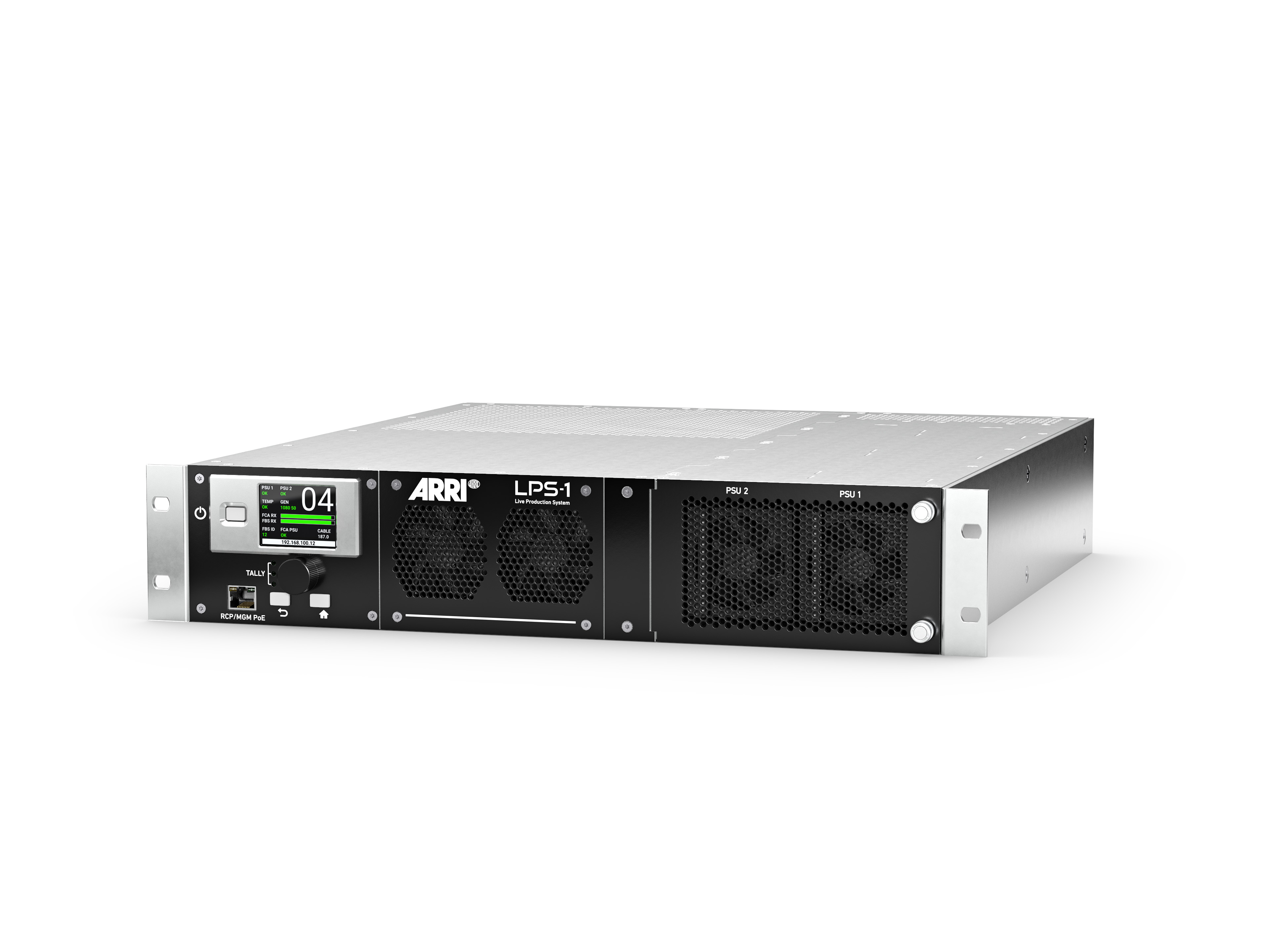

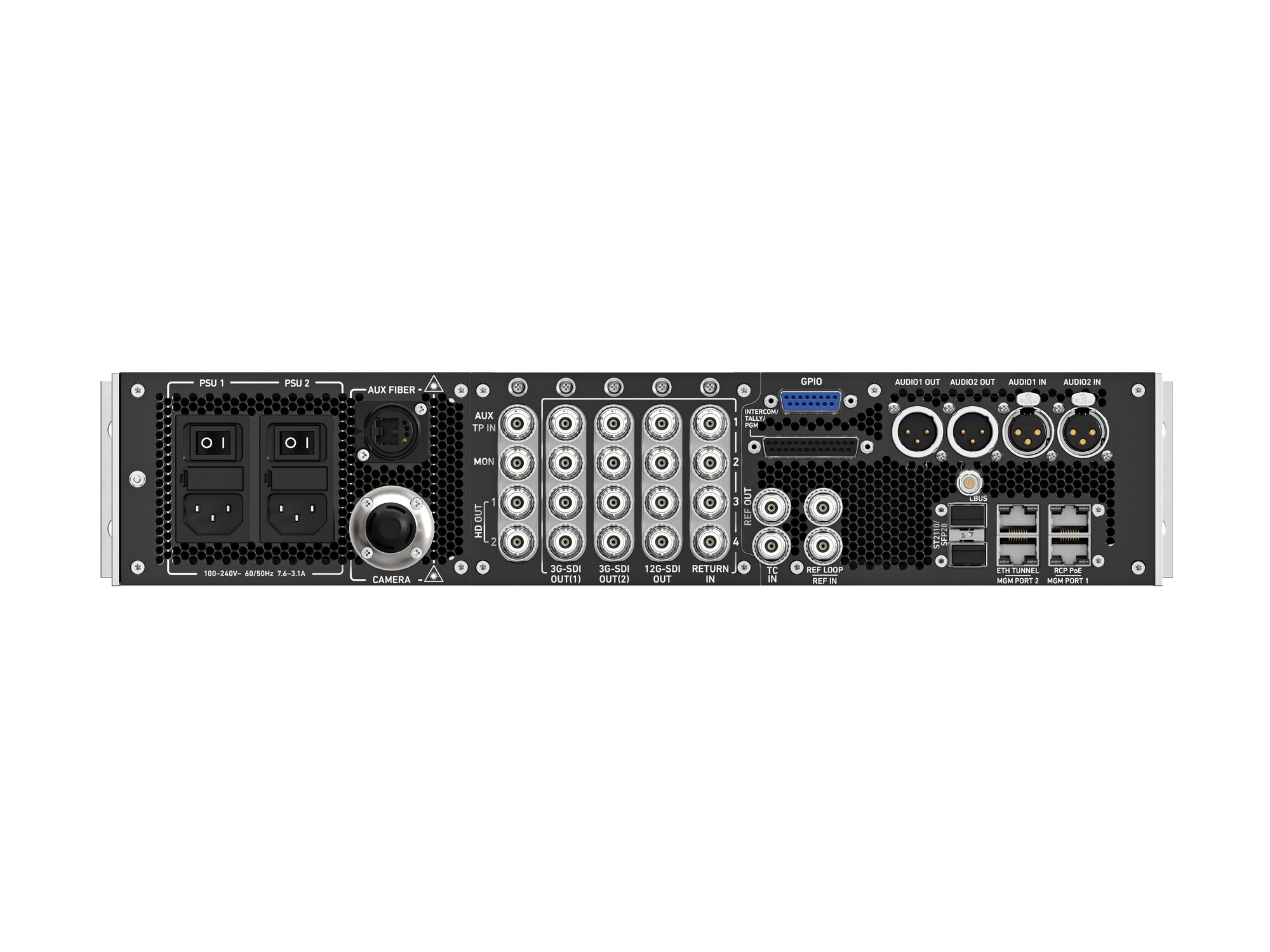

Fiber Base Station
The Fiber Base Station integrates seamlessly into live production environments, supporting multiple simultaneous outputs such as UHD with HD as progressive or interlaced video. Features include a broadcast-quality down-converter and hot-swappable redundant power supply.

Flexible and powerful cable options
The SMPTE 311 hybrid fiber cable includes copper connections to supply up to 400 W of power for the camera and 12 V or 24 V accessories. It also allows uncompressed 4K video transmission over a distance of up to 2 km. Tactical fiber cable lengths of up to 10 km can be used if the camera is powered locally.

Future-proof connectivity
The many Fiber Base Station interfaces include future-proof SMPTE 2110 IP capabilities, as well as a SMPTE 2022-7 "seamless protection switching" redundant network for absolute safety and reliability.

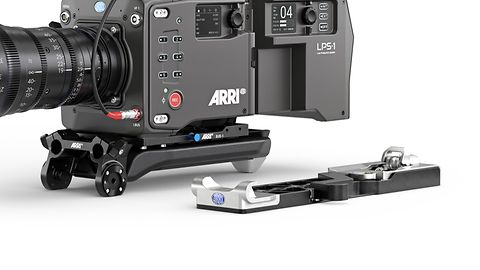

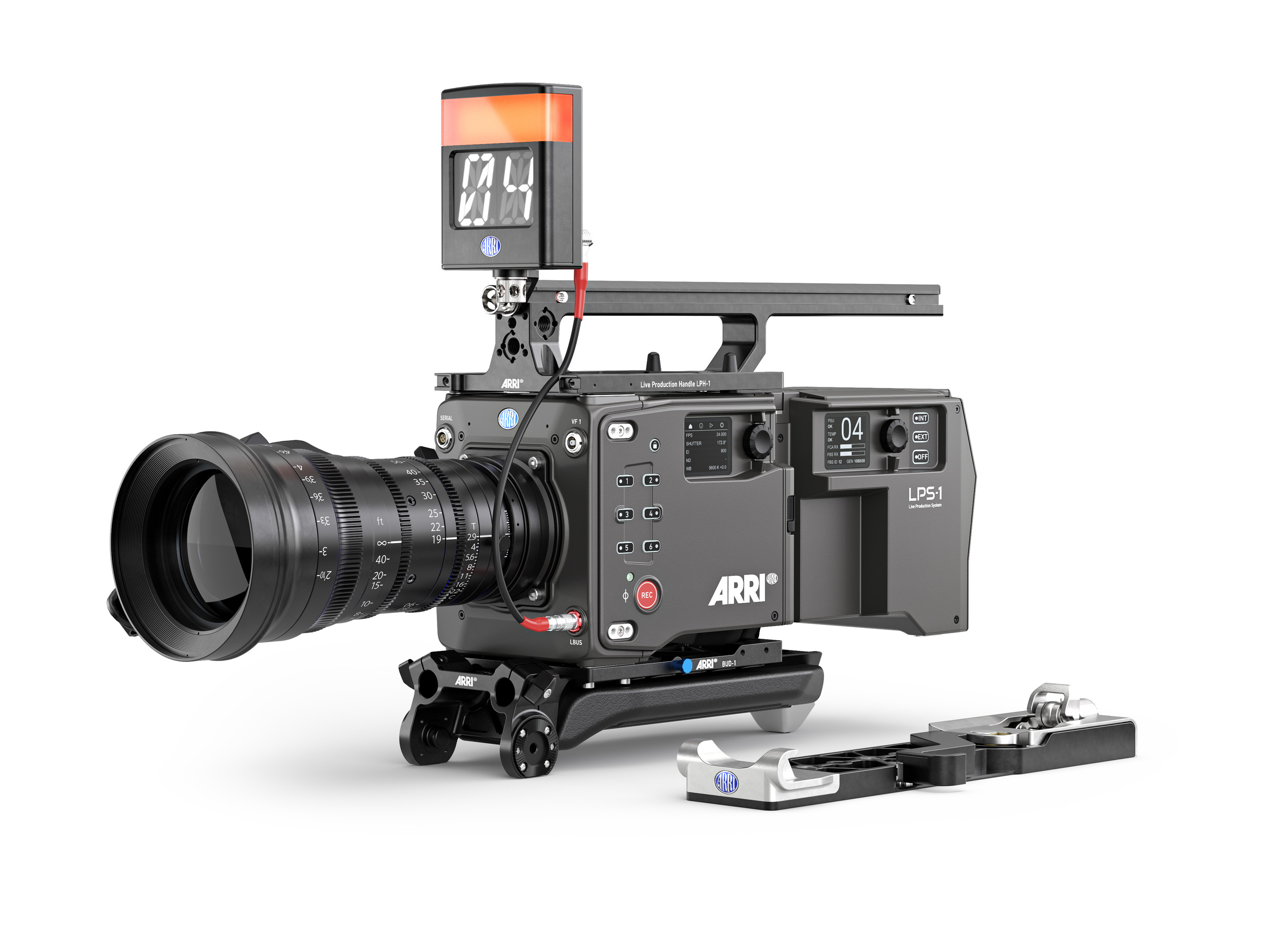

ARRI Touchdown System
The Touchdown System comprises the Touchdown Receiver Plate TRP-1 and the Touchdown Base Plate TBP-1, with built-in long shoulder pad, 15 mm rod support, and ARRI rosettes. Together, they offer a new camera mounting system that is lightweight, self-aligning, super-stable when used on a tripod, and capable of rapid transitions to handheld operation.

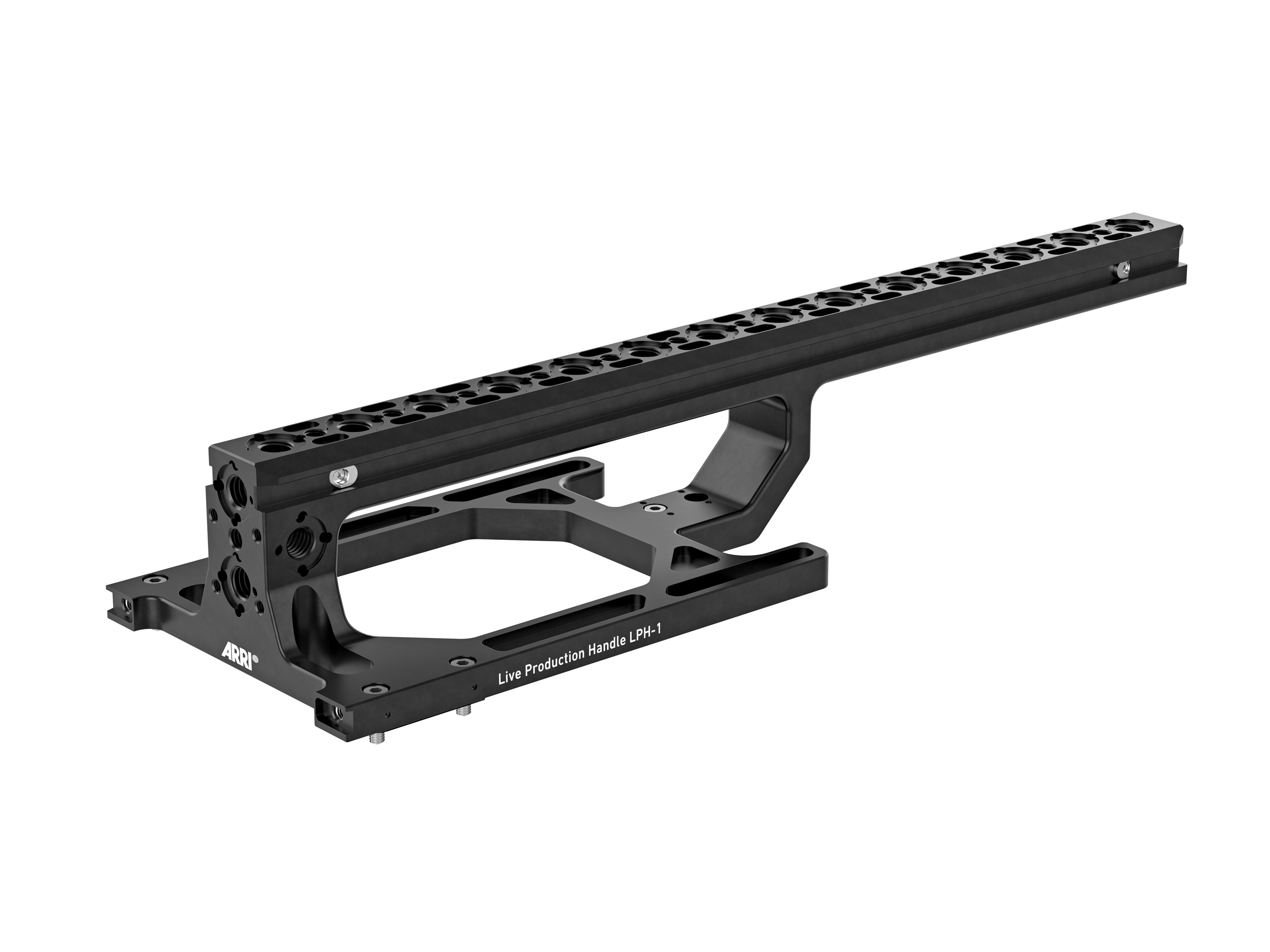

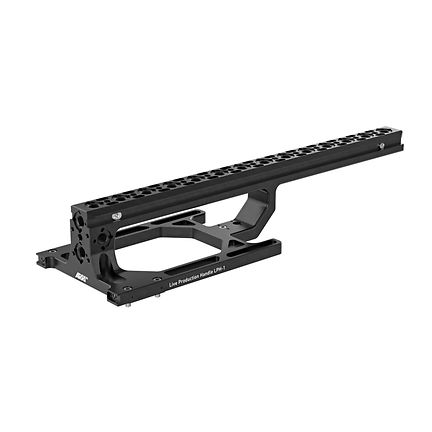

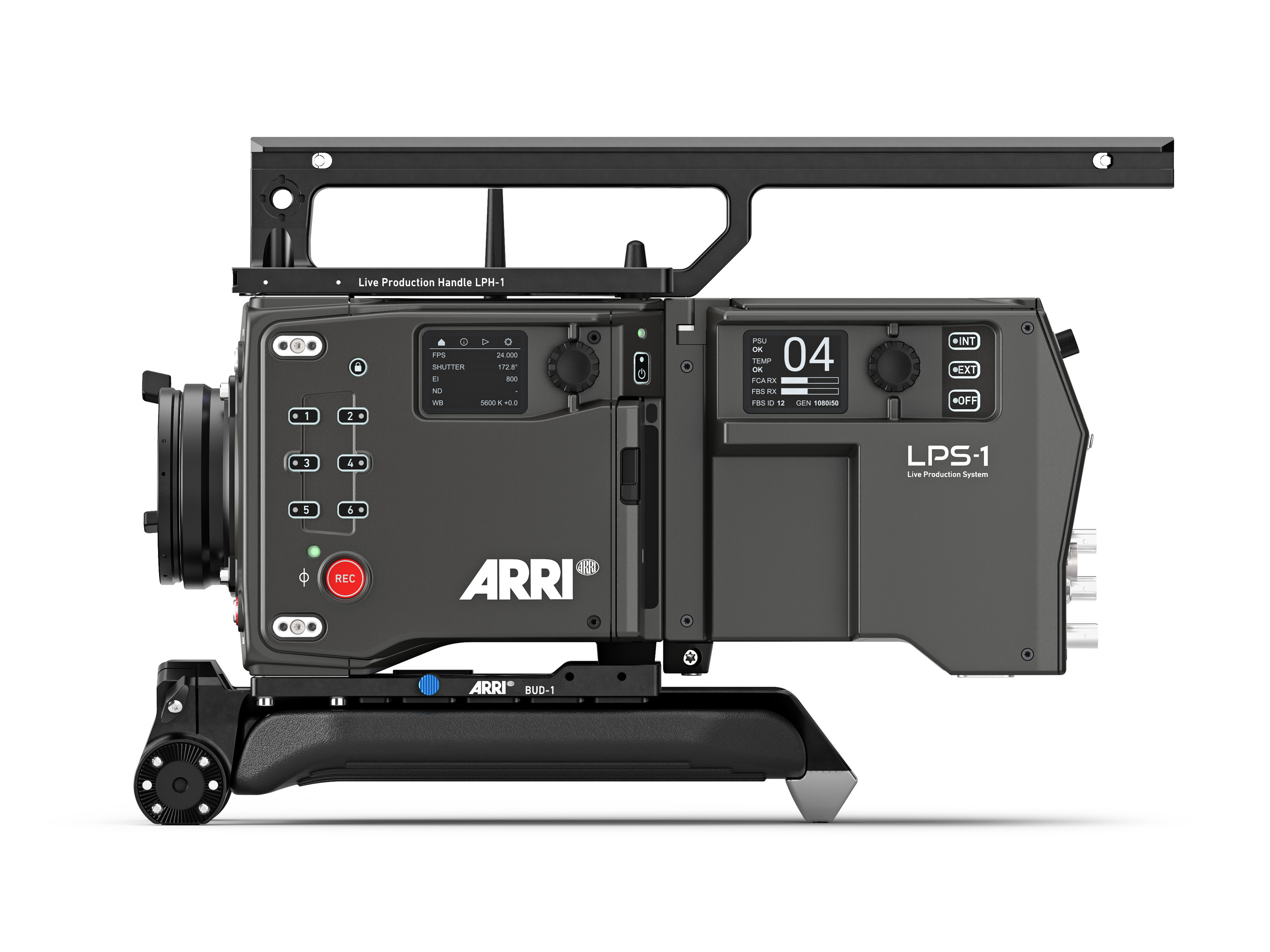

Live Production Handle LPH-1
Combining minimal weight with exceptional strength, the LPH-1 perfectly complements the ALEXA 35 Live camera, extending over the Fiber Camera Adapter for better monitor ergonomics and offering numerous accessory mounting points. The LPH-1 is compatible with the LWS-6 for 15 mm rod support and with various viewfinder mounting brackets, including the MVB-1 and VMB-5.

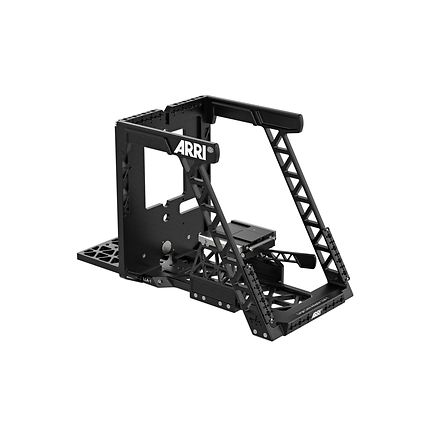

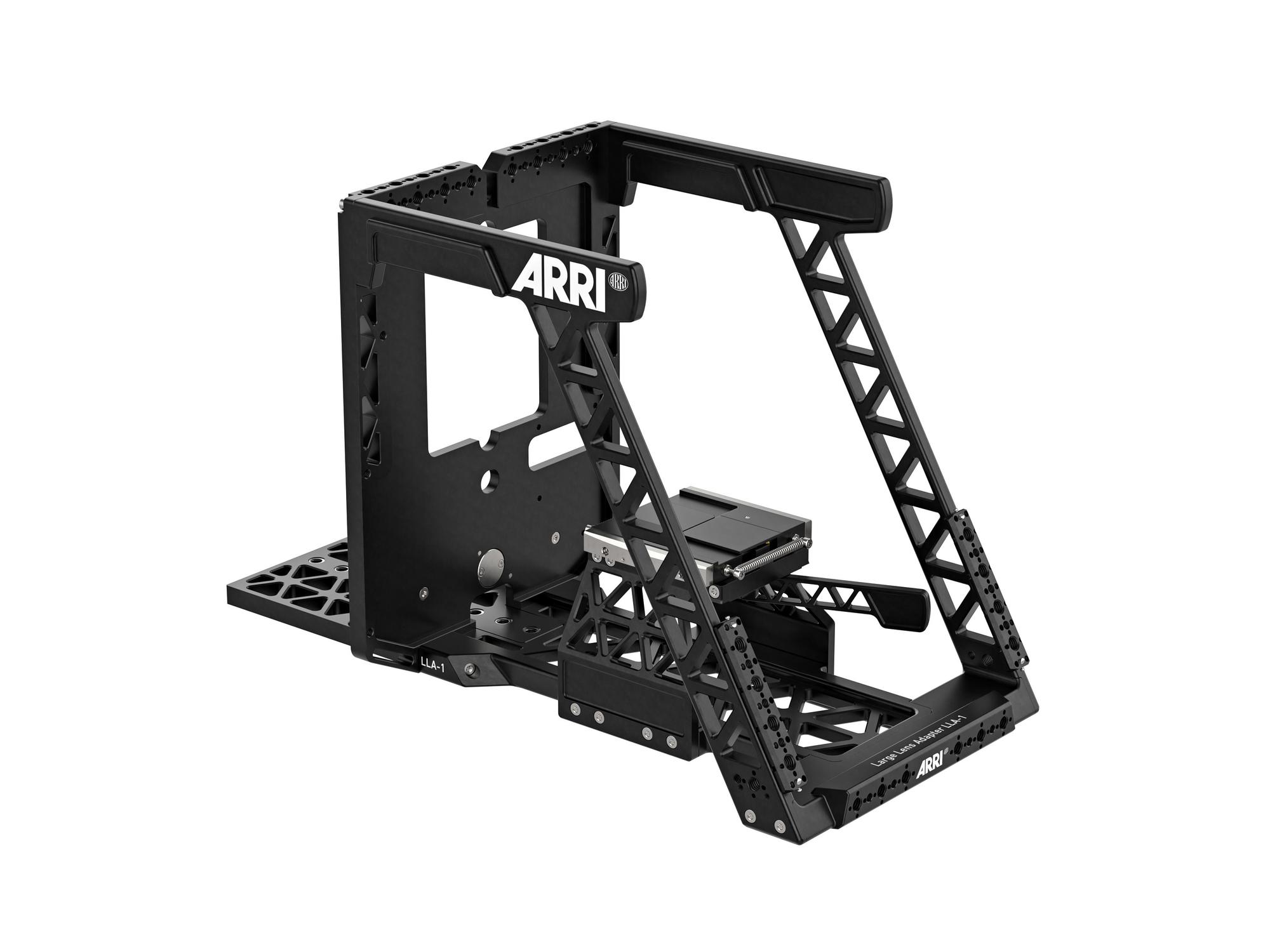

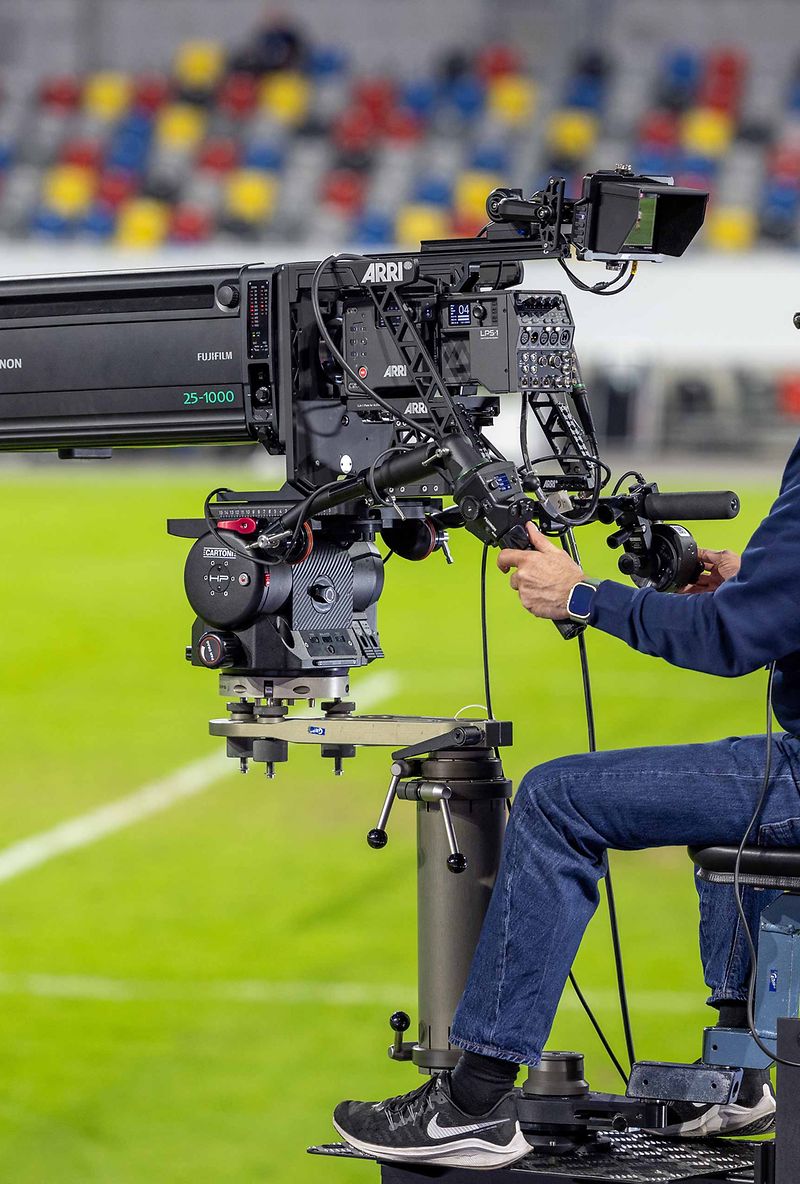

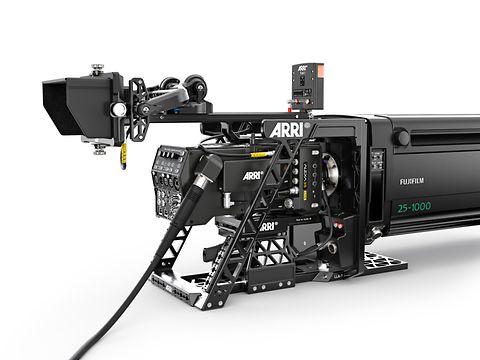

Large Lens Adapter LLA-1
ARRI's Large Lens Adapter offers a completely new way of working. It allows instant mounting of ARRI cameras to large box lenses, without tedious alignment procedures. The LLA-1 is lightweight and strong, providing multiple mounting options for accessories and cable management. Compatible with all PL and B4 box lenses, it is available with a cable to connect a PL mount (Hirose) to a box lens, as well as a rain cover and a flight case.

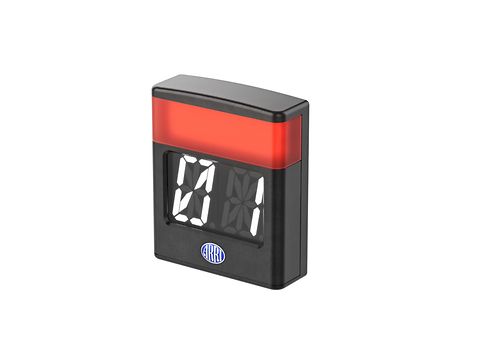

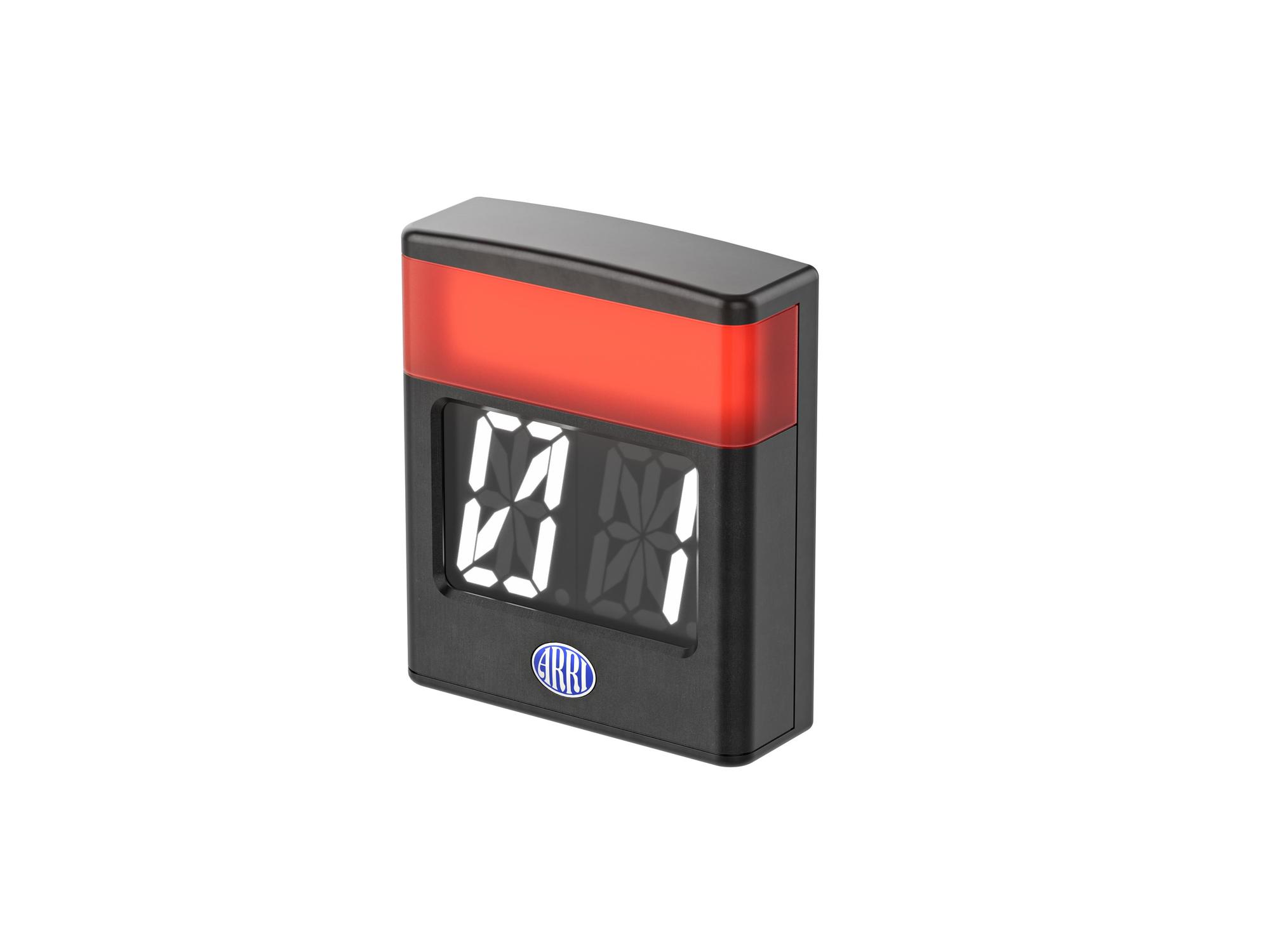

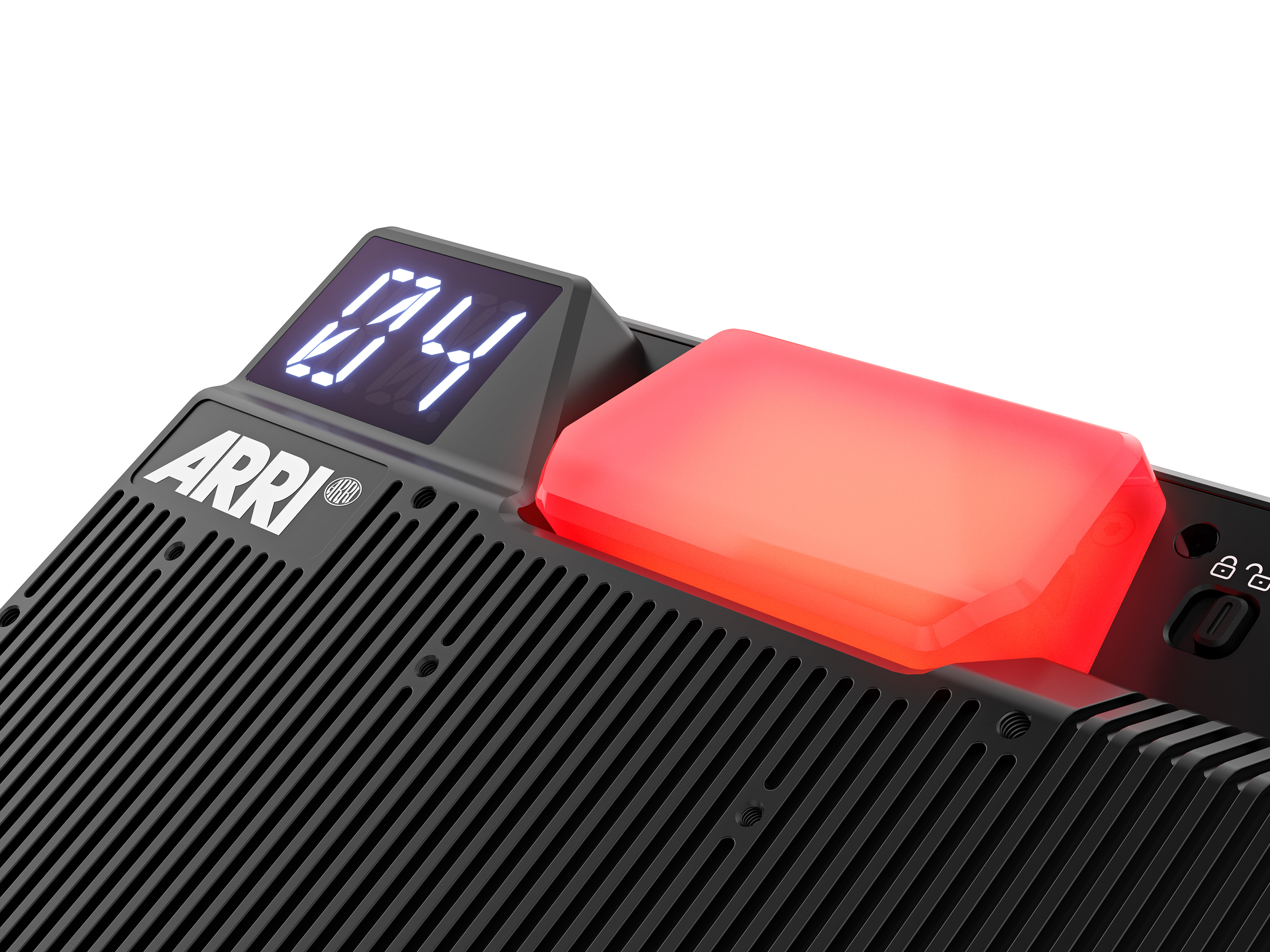

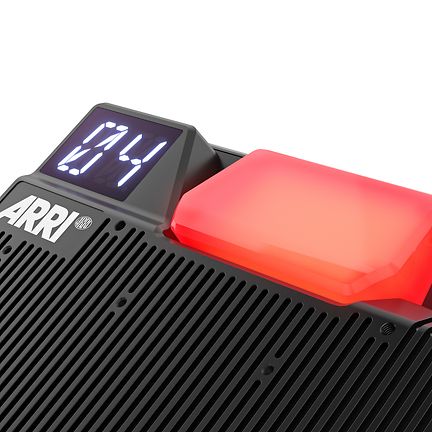

Tally Light Module TLM-1
This LBUS tally light with 16-segment, alphanumeric camera ID display has a versatile mounting interface and connects to the camera via an LBUS cable. Rugged and durable, the TLM-1 offers daisy-chainable LBUS connectivity.

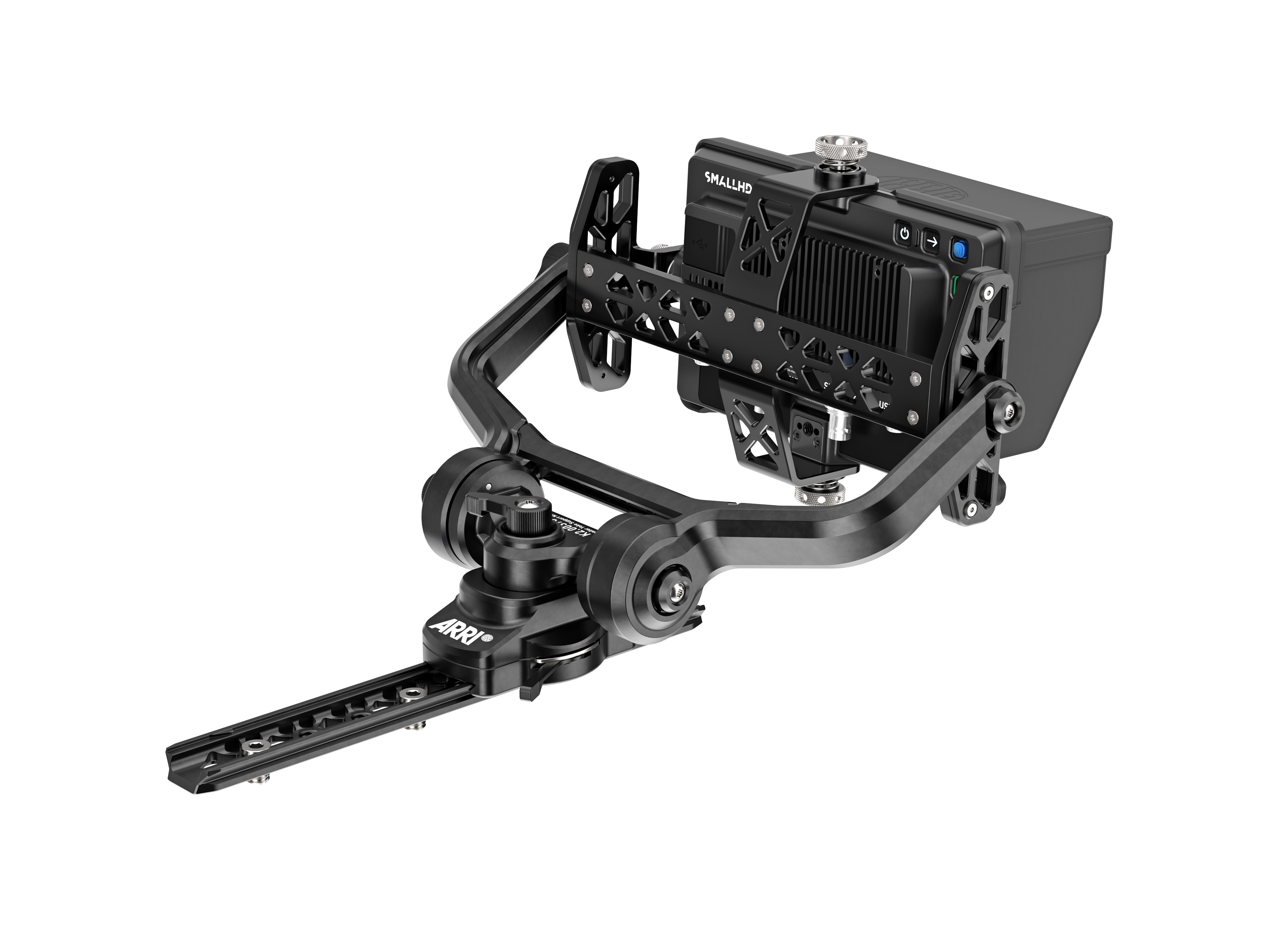

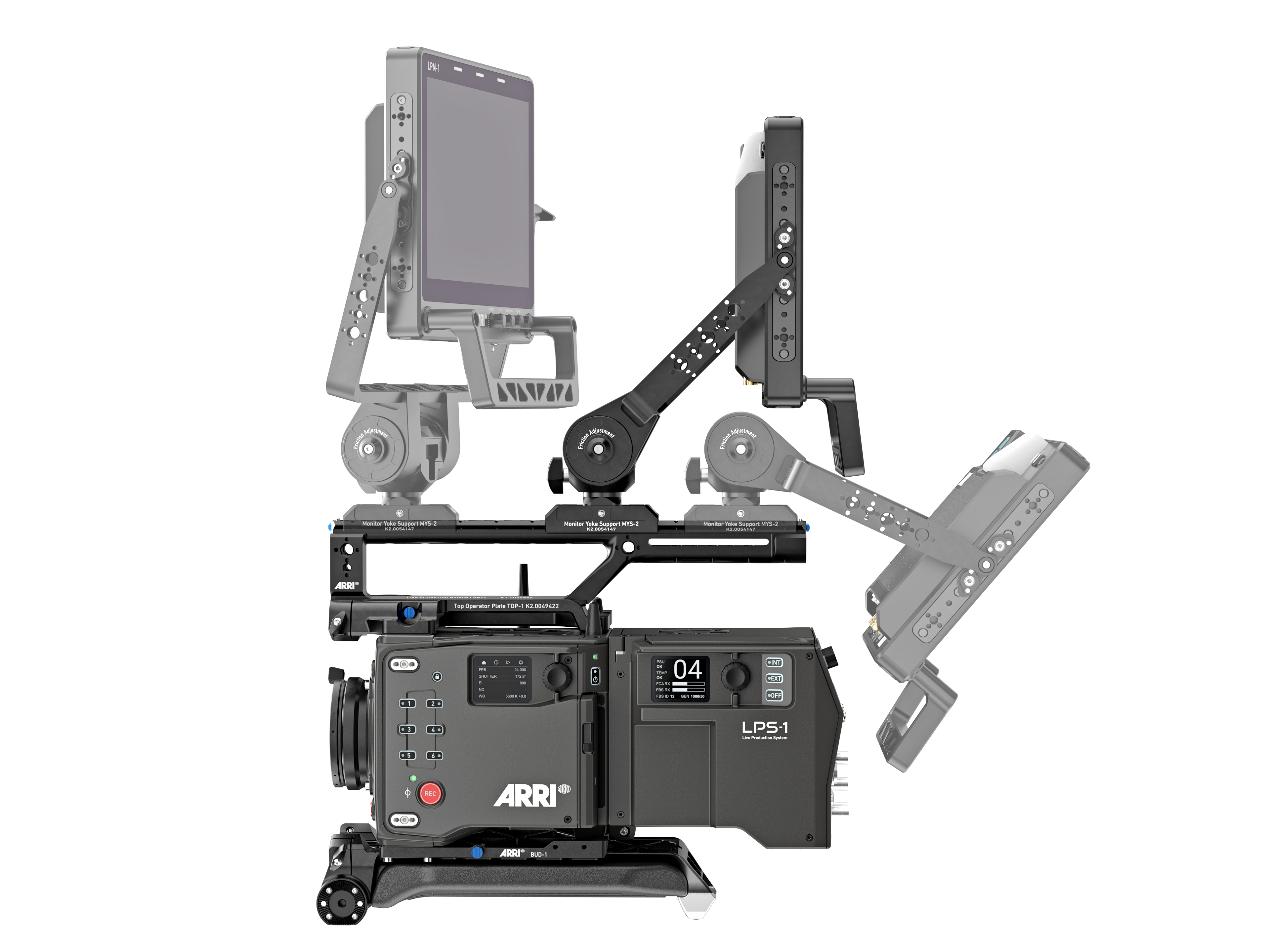

Monitor Yoke Support MYS-1L
The Monitor Yoke Support MYS-1L supports the ARRI Camera Control Monitor CCM-1, and allows for one-handed, counterbalanced, four-axis adjustment of the monitor, which is lockable in any position.

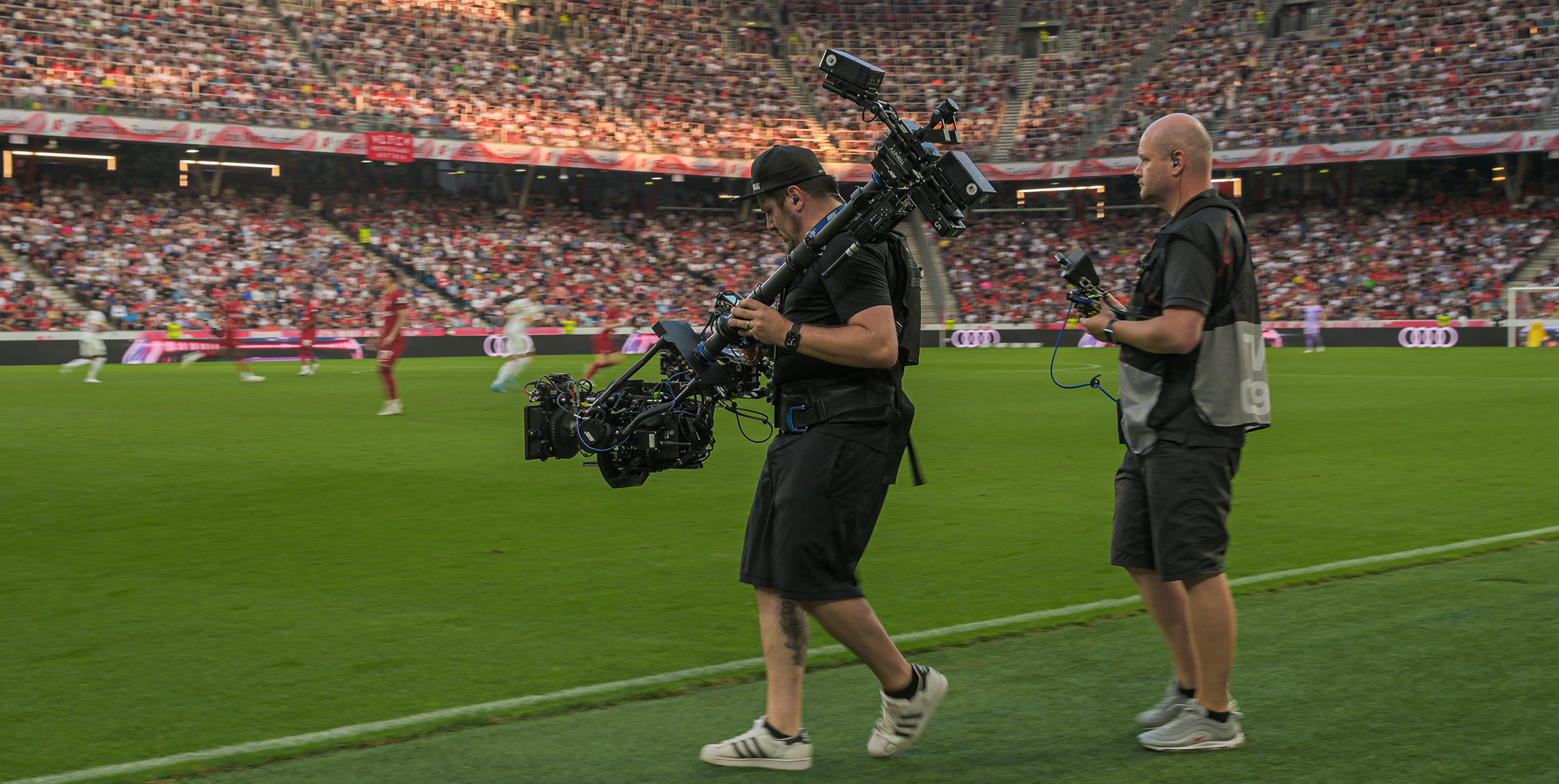

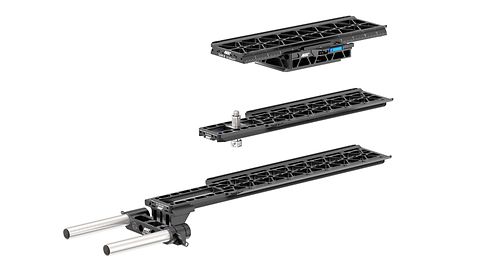

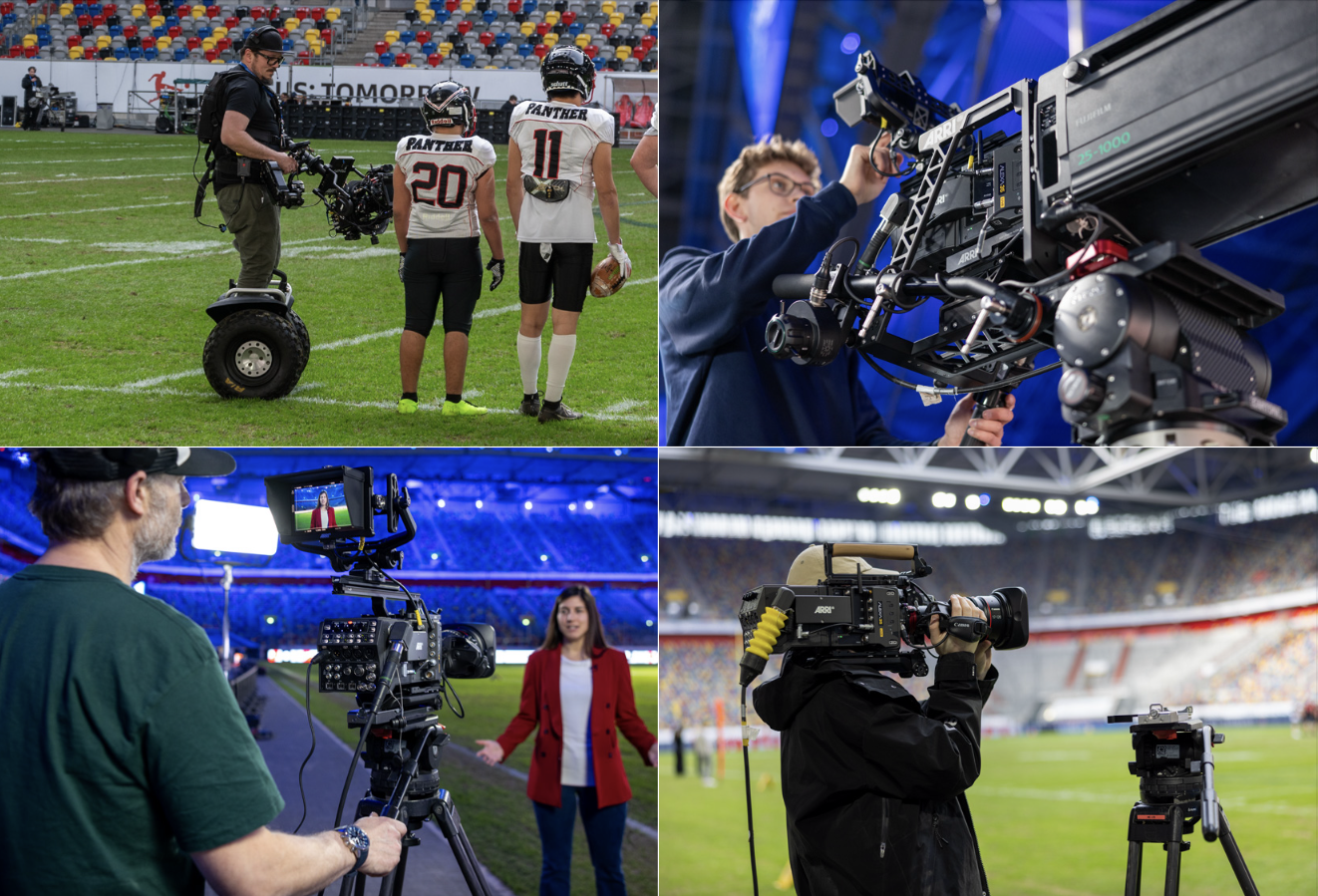

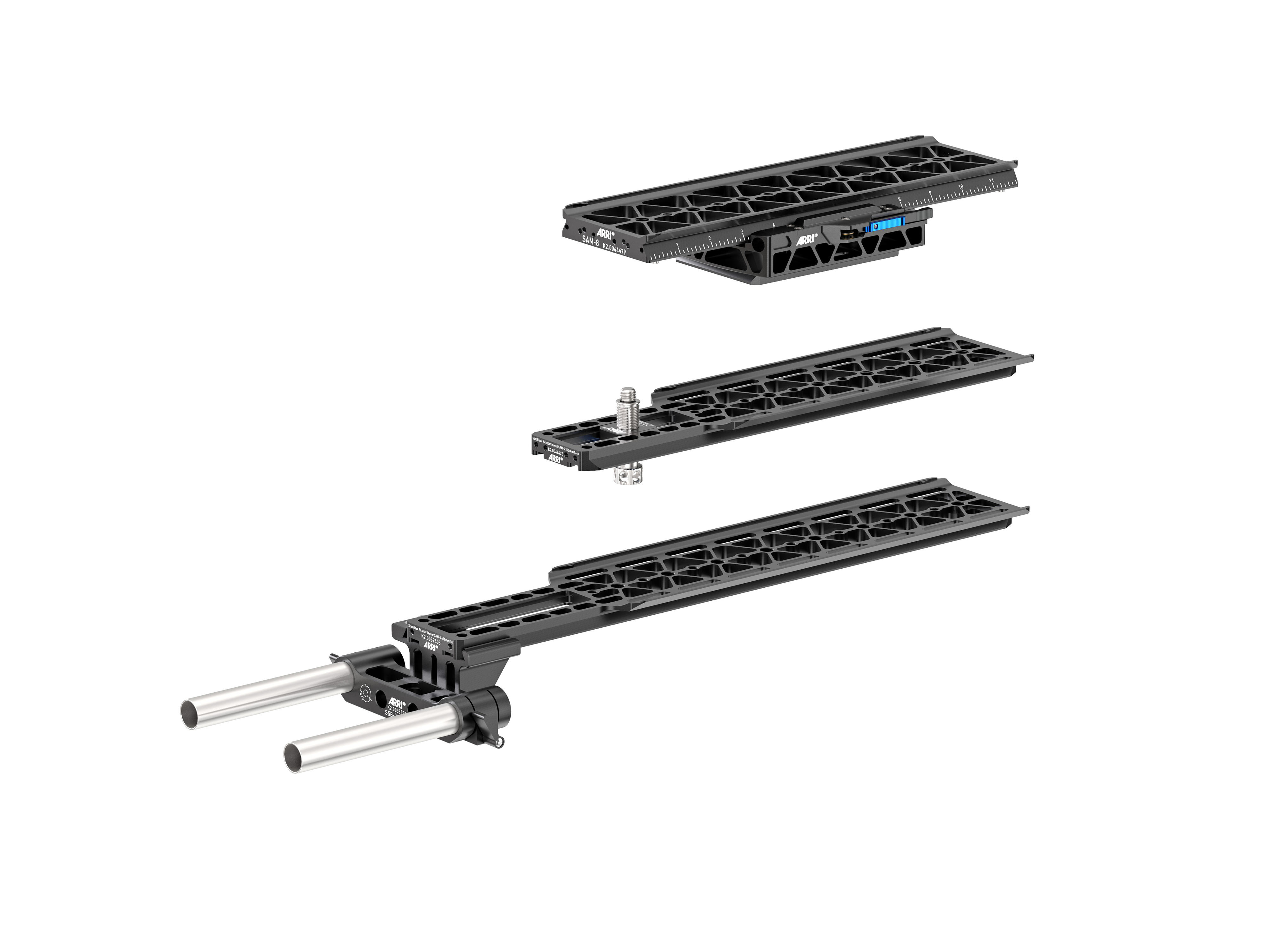

Stabilizer Adapter Mounts
A wide range of SAM plates are available to allow the ALEXA 35 Live to mount quickly, without tools, to a range of stabilization systems from ARRI and third-party suppliers. Accessories for SAM plates offer a variety of lens support and counterweight options.
