Alura Extender

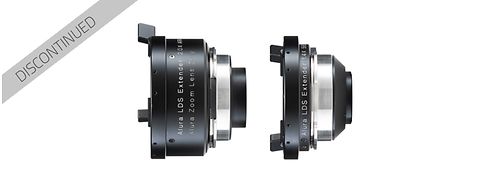

The new ARRI Alura LDS Extender 1.4x and 2.0x are the perfect products to extend the focal length range of zoom and prime lenses. These additional lens systems which can be easily mounted between the camera's PL mount and the zoom or prime lens PL mount are small and lightweight and have the ability to transfer lens metadata from appropriate lenses based on the protocol of the ARRI Lens Data System (LDS) to the camera. Most Alexa cameras can identify the extender type automatically and show the right lens data.

The two extenders are specially designed for the ARRI/Fujinon Alura zoom lenses and multiply the focal length of the base lens by a factor of 1.4 or 2.0 with only one or two T-stops loss at full aperture. The combination with the ARRI Alura zoom lenses gives a highly competitive solution over expensive long range zoom lenses with only little or no influence to the optical quality of the Alura zoom lenses.

Features

  • Multiplies the focal length by a factor of 1.4x or 2.0x with only one or two T-stops loss at full aperture
  • Transfer of LDS metadata signal
  • Automatic extender identification with most Alexa cameras
  • Matches other ARRI/Fujinon or ARRI/Zeiss Lenses

Technical Data

Alura Zoom

Alura Extender

Resulting Combination

Alura T2.6/18-80mm

Alura LDS Extender 1.4x

Alura T3.7/25-112 mm

Alura T2.6/18-80mm

Alura LDS Extender 2.0x

Alura T5.2/36-160 mm

Alura T2.6/45-250mm

Alura LDS Extender 1.4x

Alura T3.7/63-350 mm

Alura T2.6/45-250mm

Alura LDS Extender 2.0x

Alura T5.2/90-500 mm

Alura T2.8/15.5-45mm

Alura LDS Extender 1.4x

Alura T4.0/22-63 mm

Alura T2.8/15.5-45mm

Alura LDS Extender 2.0x

Alura T5.6/31-90 mm

Alura T2.8/30-80mm

Alura LDS Extender 1.4x

Alura T4.0/42-112 mm

Alura T2.8/30-80mm

Alura LDS Extender 2.0x

Alura T5.6/60-160 mm


Name

Alura LDS Extender 1.4x

Alura LDS Extender 2.0x

Weight

300 g / 0.66 lb

530 g / 1.17 lb

Diameter without knobs

77 mm / 3.03”

77 mm / 3.03”

Length without knobs

44 mm / 1.73”

60 mm / 2.36”

Item number

K2.47926.0

K2.47927.0
