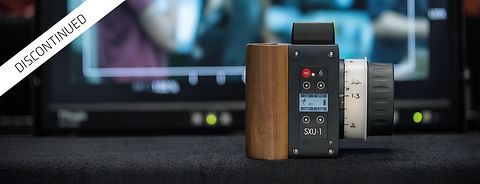

SXU-1 | Electronic Control System | Camera Systems

A separate iris control unit

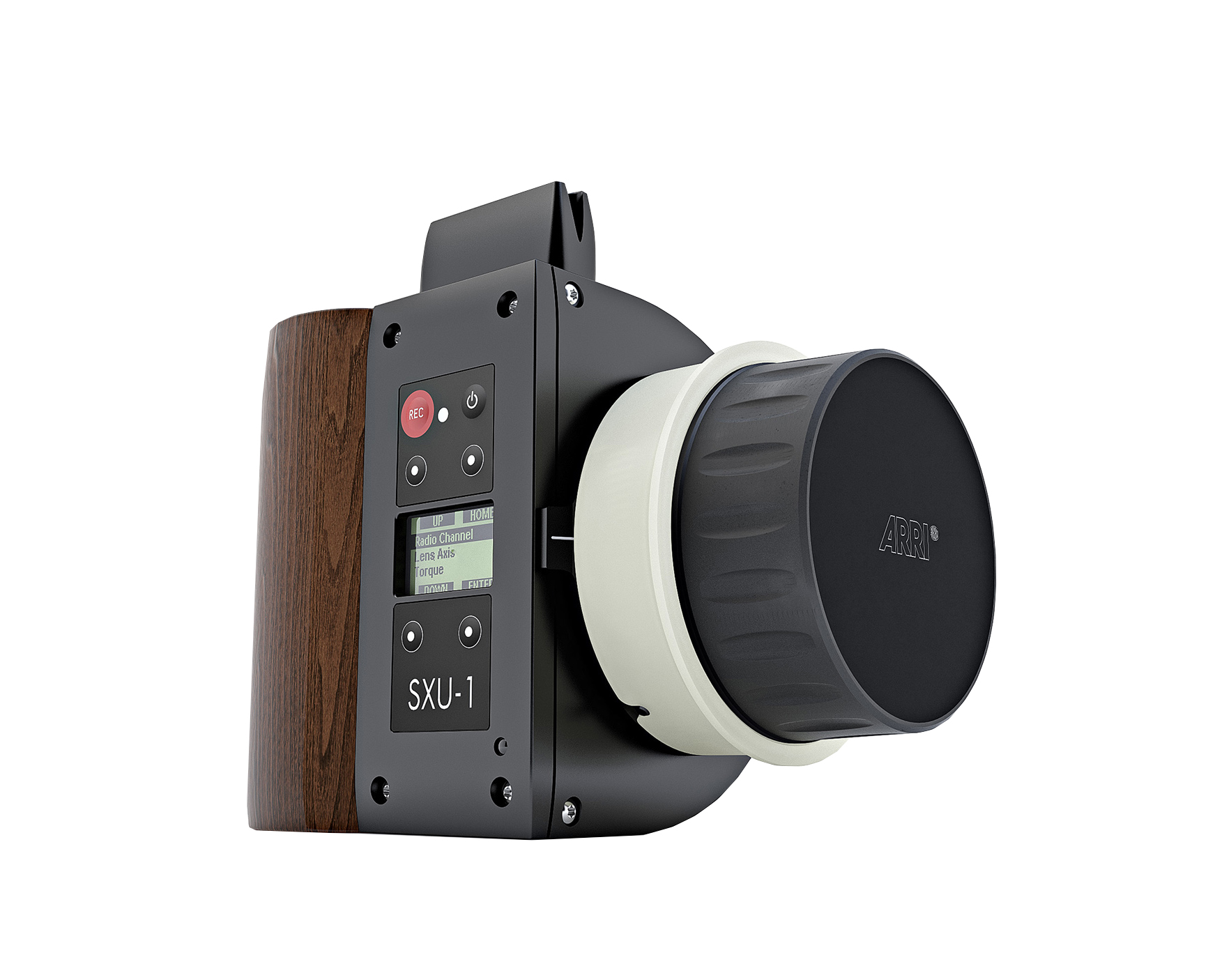

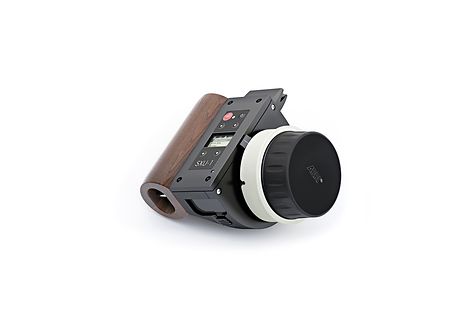

The Single Axis Unit SXU-1 is a simple, single-channel hand unit that can be set up to control focus, iris or zoom. The SXU-1 can be used alongside the Hi‑5 and WCU‑4 for separate iris control, operated by the DIT or cinematographer in situations where subtle exposure adjustments are required during travelling shots.

Features

Best overall production value

One-axis lens control
Backlit focus knob
Supports motor and knob limits

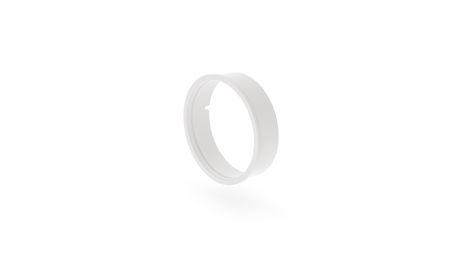

Optional mounting gear

Credits

Dark

Gentefied

Quotes

I like this remote unit for simplicity, flexibility and the wooden grip.

Camera Operator & 1^st AC Etienne Burguy (Known for: Secret d’hiver, AL, La balle de trop, L’antisémite and many more)

Compatibility

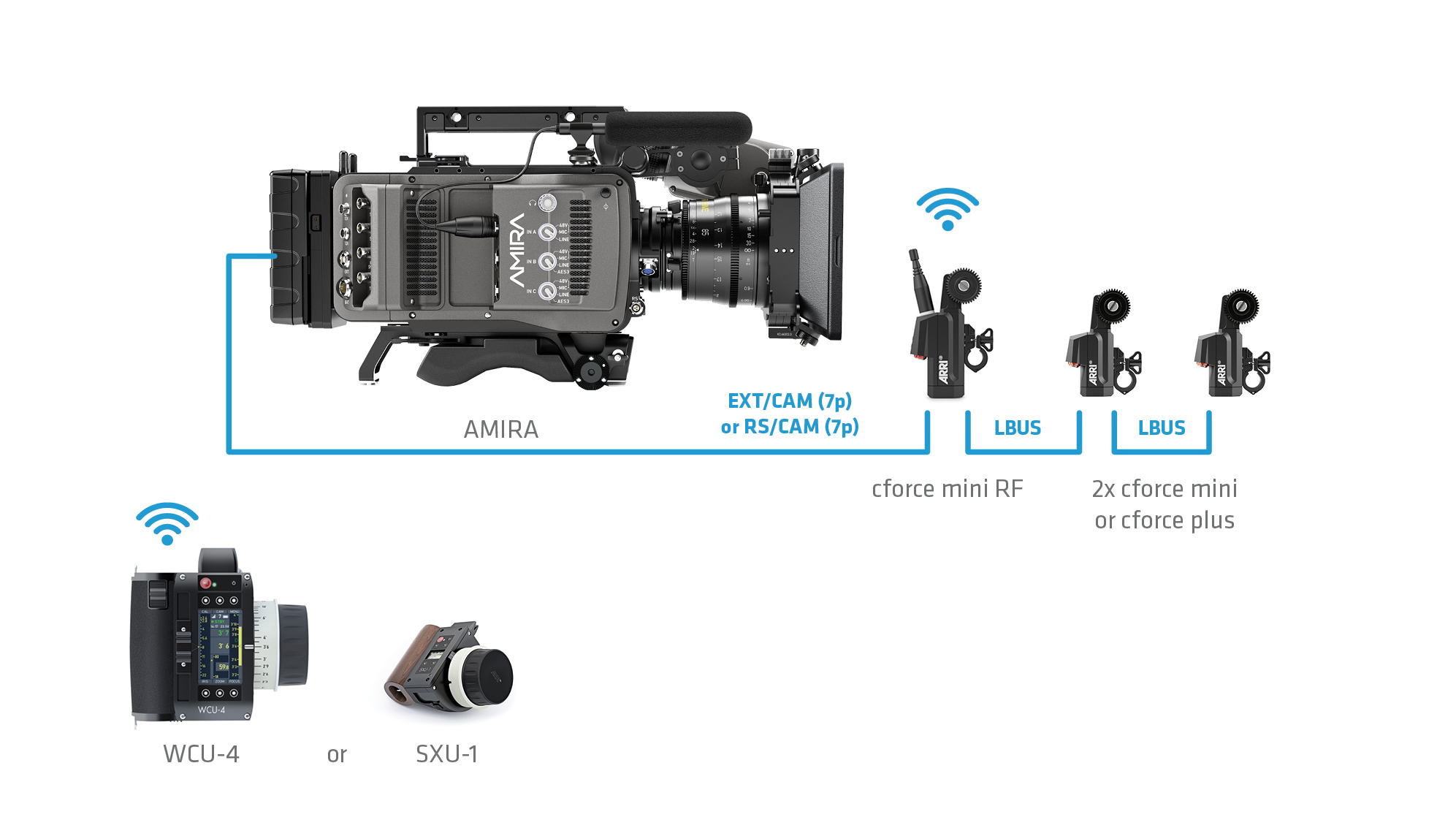

WCU‑4 or SXU-1 + cforce mini RF + cforce mini/plus motors + AMIRA

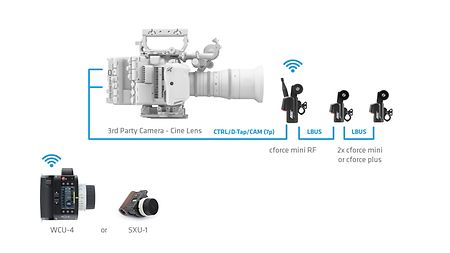

WCU‑4 or SXU-1 + cforce mini RF + cforce mini/plus motors

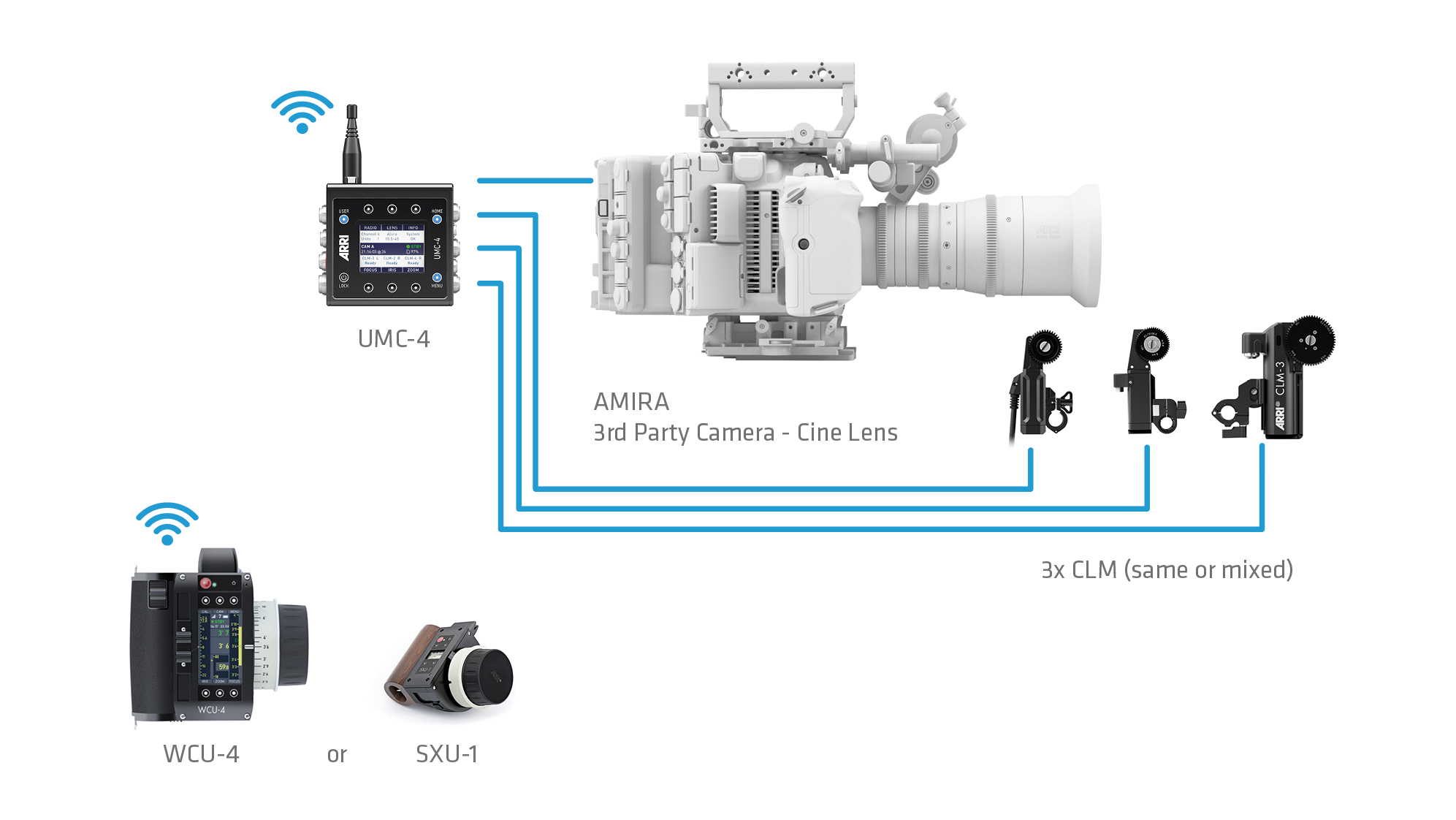

WCU‑4 or SXU-1 + UMC-4 + CLM motors

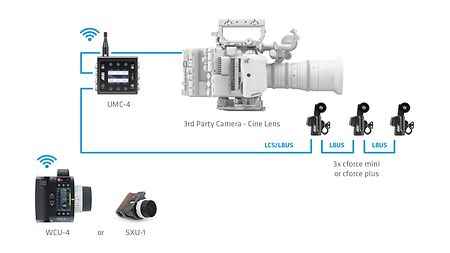

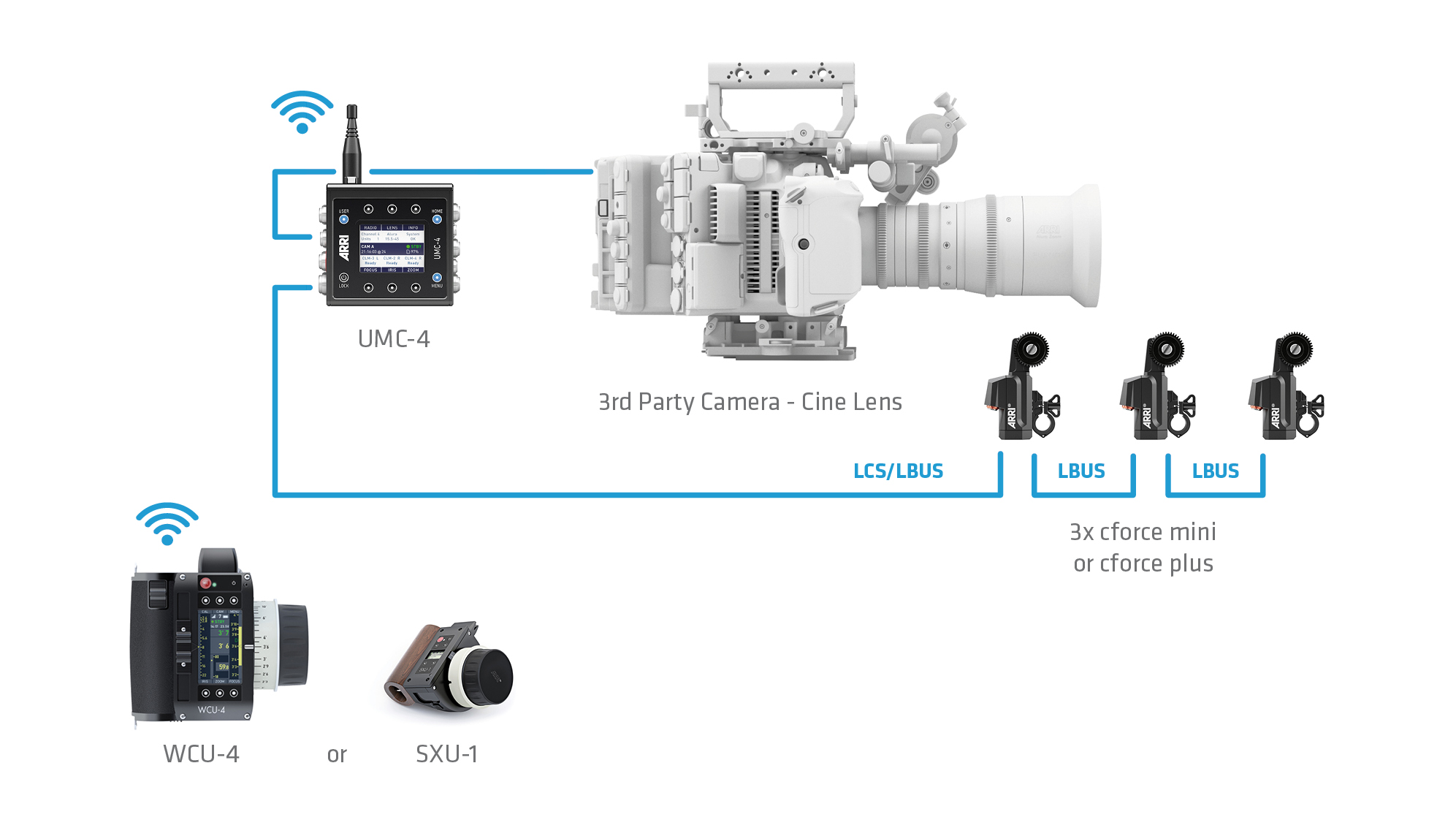

WCU‑4 or SXU-1 + UMC-4 + cforce mini/plus

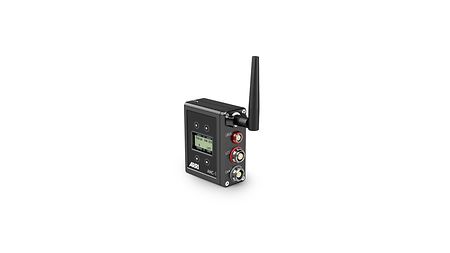

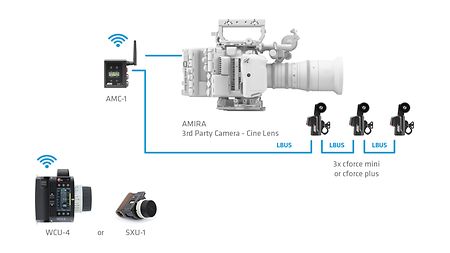

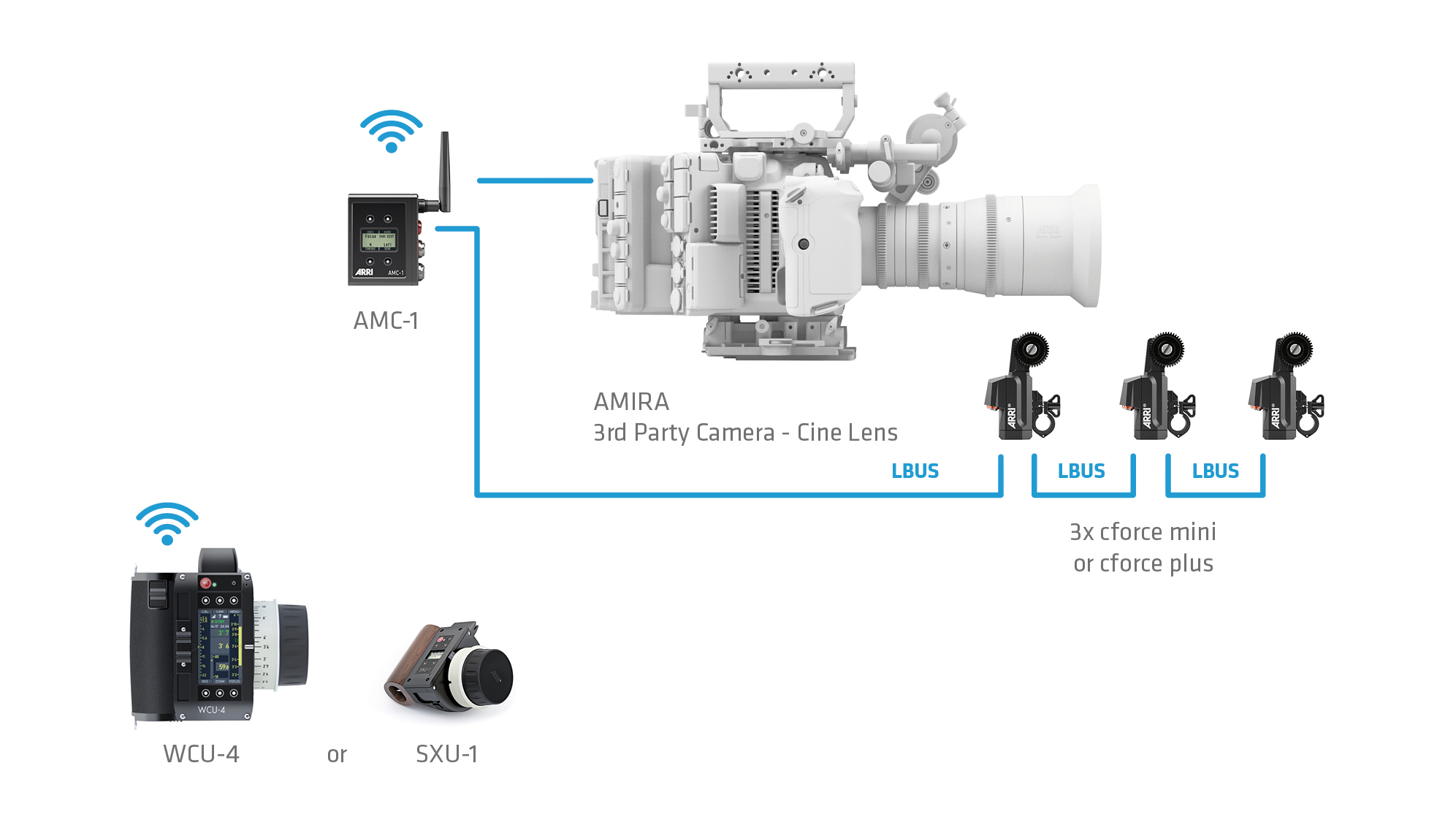

WCU‑4 or SXU-1 + AMC-1 + cforce mini/plus motor

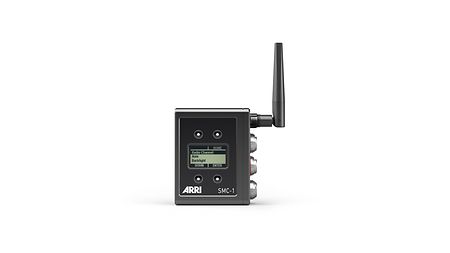

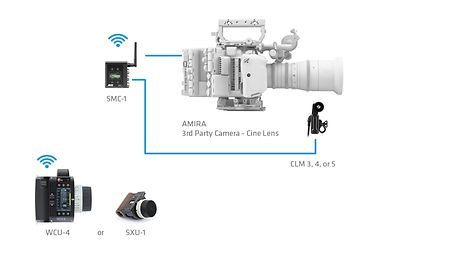

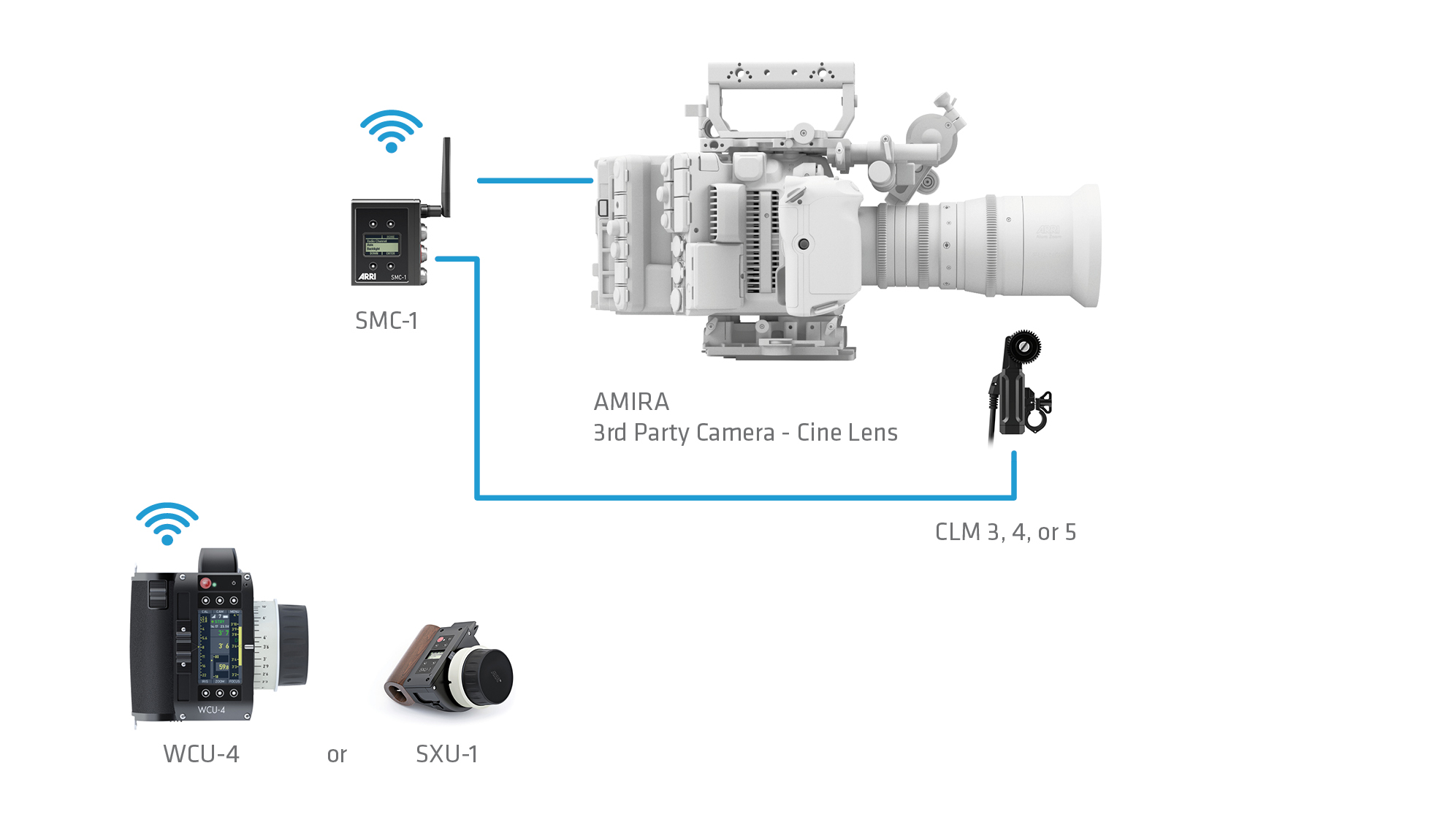

WCU‑4 or SXU-1 + SMC-1 + CLM motor

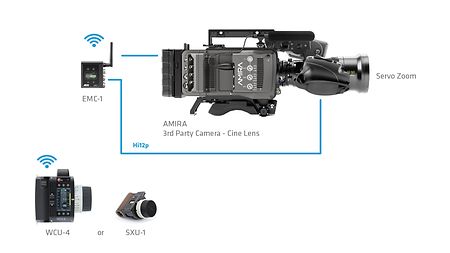

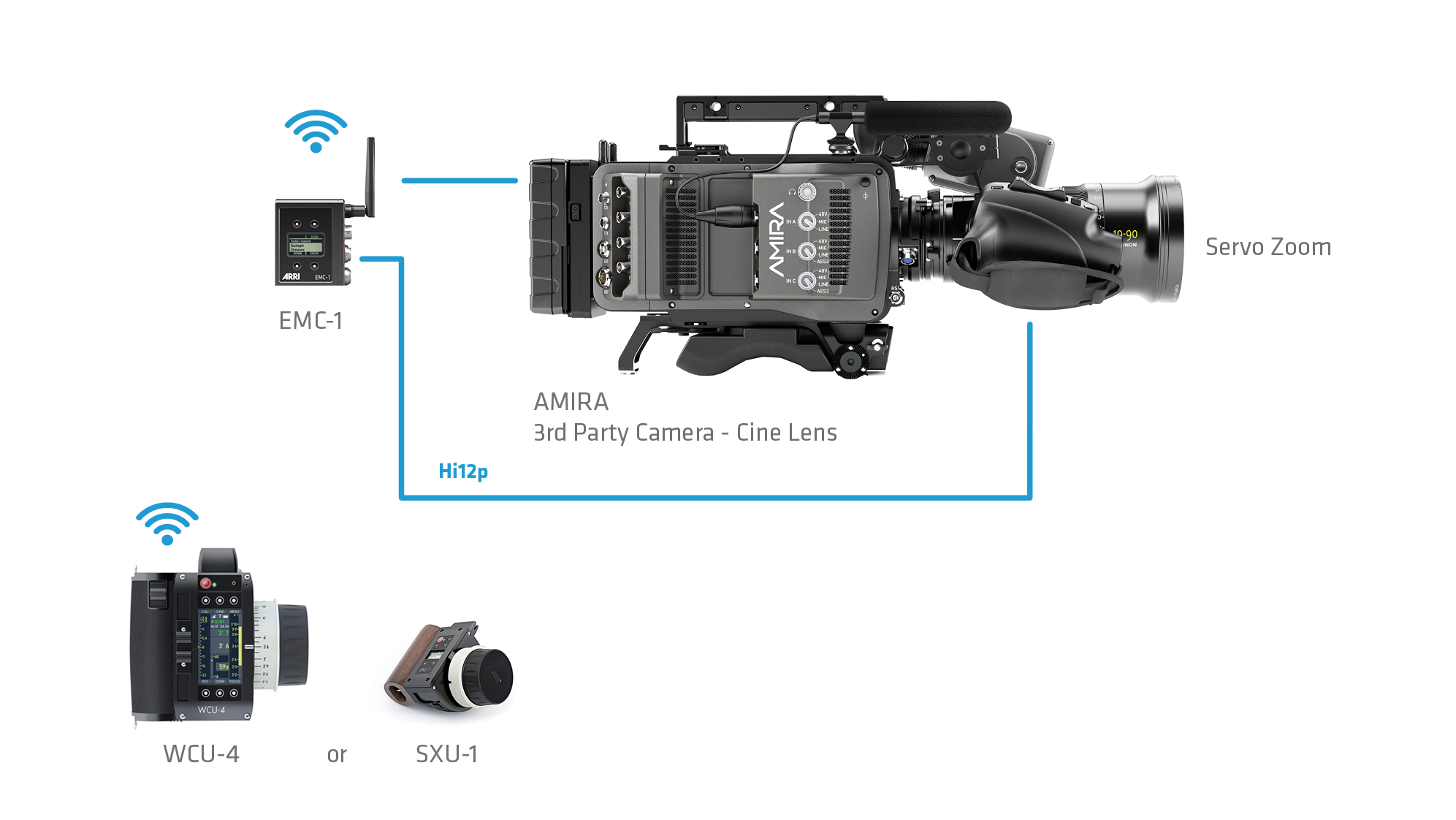

WCU‑4 or SXU-1 + EMC-1 + Servo Zoom lens

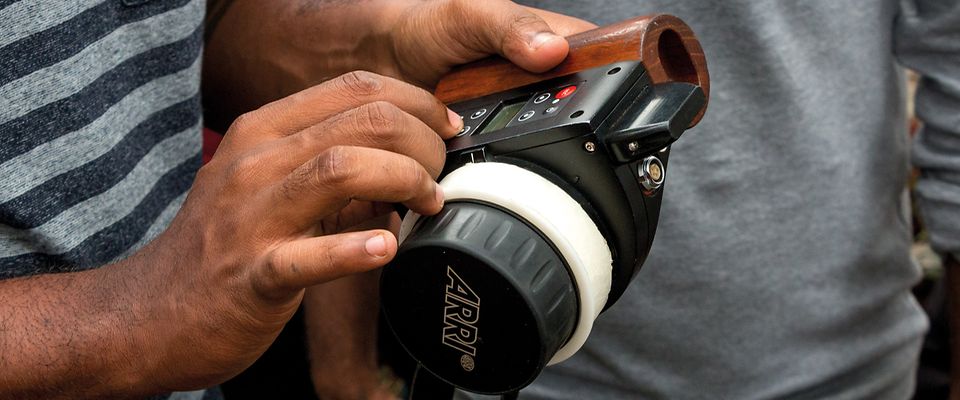

2019 10-14 ECS SXU-1 Appl.Shot für Website_M26_Annalena

Single Axis Unit

SXU-1 FAQ

For wireless operation, you can combine up to three SXU-1 handsets per motor controller.

Yes, you can operate the SXU-1 hardwired with a LCS cable connected to the camera (e.g. K2.0007624 Cable EXT (7p) - LCS (5p).

Yes, you can limit the motor range to allow a more sensitive lens control.

Tech Talks & Videos

Feb. 4, 2021

ARRI TECH TALK Live: Electronic Control System

New possibilities for DPs, 1st ACs and DITs with the latest ECS accessories.
In this TECH TALK Live event, you will discover new possibilities with the latest ECS accessories, including the ERM-2400 LCS radio module and the Operator Control Unit OCU‑1.
Learn how to use the ERM-2400 LCS as a range extender solution for various devices like the WCU‑4 and SXU-1 hand units, ALEXA Mini LF and ALEXA LF, and the OCU‑1.

Dec. 13, 2019

ALEXA Mini LF Tech Talk: ECS Accessories

Dec. 13, 2019

ARRI Electronic Control Systems

Dec. 13, 2019

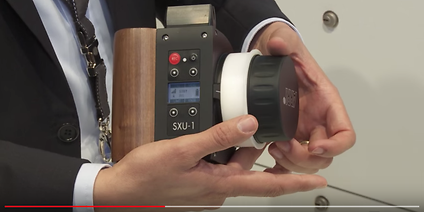

IBC 2013: SXU-1

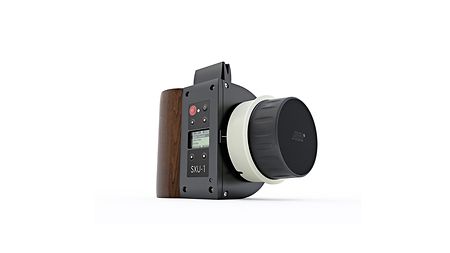

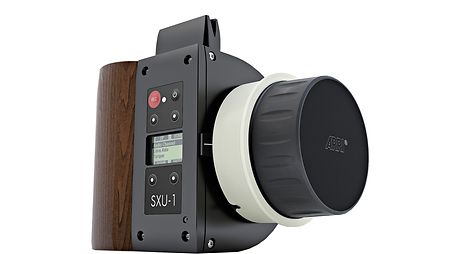

Single Axis Unit SXU-1

Single Axis Unit SXU-1

K2.0000071

Single-axis wireless hand unit for iris, focus or zoom control. Works with ALEXA Mini, ALEXA Plus, ALEXA Studio, ALEXA SXT W, ALEXA LF, ALEXA Mini LF and ALEXA 65 cameras a...

Cables & Power Supplies

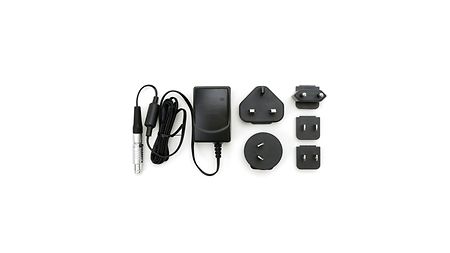

Hand Unit AC Power Supply HPS-1

K2.0000425

AC power supply adapter for SXU-1 and WCU-4.

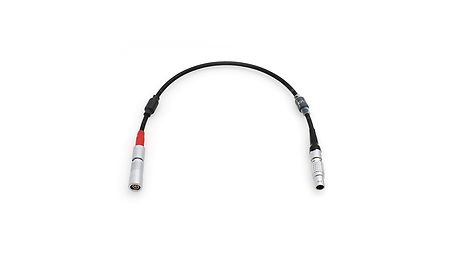

Cable EXT (7p) - LCS (5p)

K2.0007624

Adapts ALEXA Mini, ALEXA Mini LF EXT connector to LCS cables.

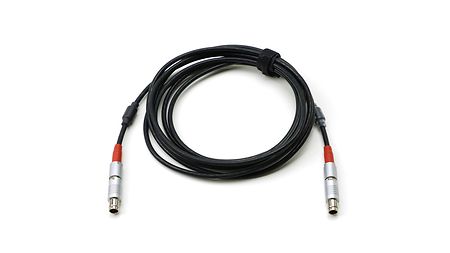

Cable LCS (5p) - LCS (5p) (3.5m/11ft)

K2.0002136

Connects ARRI hand units and motor controllers for wired operation.

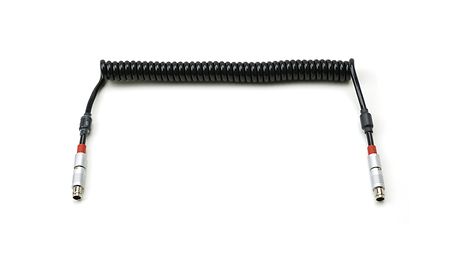

Cable LCS (5p) - LCS (5p) (coiled)

K2.0002141

Connects ARRI hand units and motor controllers for wired operation.

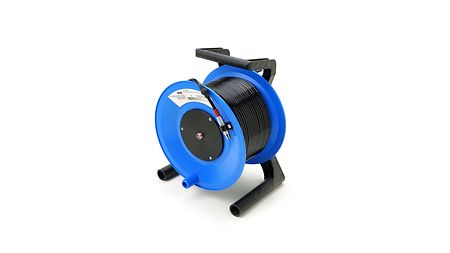

LCS Cable Drum Extension (75m/250ft)

K2.41389.0

Connects ARRI hand units and motor controllers for wired operation. Use with cable LCS to LCS (K2.0002136)

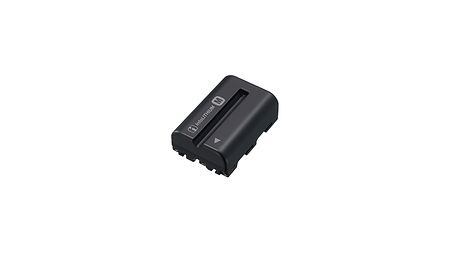

SONY NP-FM500H Battery

K2.47851.0

Powers Wireless Compact Unit WCU-4 and Single Axis Unit SXU-1.

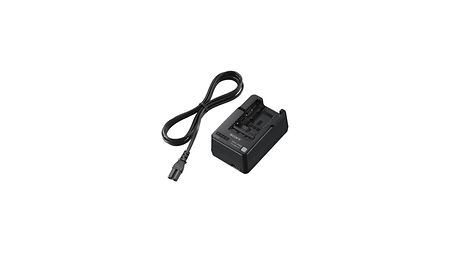

SONY BC-QM1 Battery Charger

K2.0002065

Charges NP-FM500H battery.

Downloads

Language Download Type

Reset

Product Highlights and Solutions, April 2024 | Brochure

SXU-1 SUP 2.0

SXU-1 SUP 2.0 Release Notes

SXU-1 SUP 1.1.5

SXU-1 SUP 1.1.5 Release Notes

SXU-1 SUP 1.1.4

SXU-1 pre1.1

Please ensure that your firmware is installed in the correct order. If you cannot install version 1.1.4 or 1.1.5 then install pre1.1 first. Then install 1.1.4 then 1.1.5. Download (upd, 109 KB)
