Frame Line & Lens Illumination Tool

What is the Frame Line & Lens Illumination Tool?

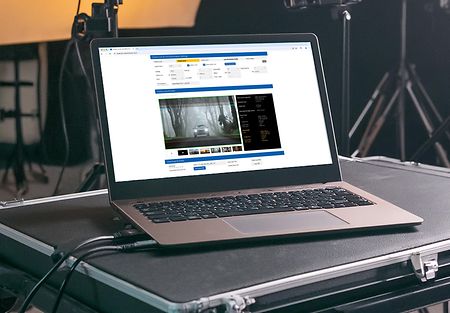

ARRI's Frame Line & Lens Illumination Tool (FLLIT, currently Version 5.2) is a two-in-one webtool for creating custom frame lines for ARRI cameras and a verifying tool to see how different lenses illuminate the cameras' sensor, your selected recording format or target aspect ratio.

Please delete your browser cache from time to time to ensure you are running the latest version of the tool.

Launch FLLIT

Frame Line & Lens Illumination Tool

Known issues we are working on:

SVG can not be imported into Adobe Illustrator, but SVG is valid

In case you have questions, please contact digitalworkflow@arri.de

ARRI Tech Tips Frame Lines

Nov. 7, 2019

ARRI Tech Tip: How to create your custom ALEXA Mini LF Frame Line to fit ALEXA Mini resolution

Want to know how to create your custom ALEXA Mini LF Frame Line to fit ALEXA Mini resolution?

Nov. 7, 2019

ARRI Tech Tip: How to create a custom 4K DCI Frame Line for Mini LF with additional space for VFX

Want to know how to create a custom 4K DCI Frame Line for 2.39:1 for Mini LF with additional space for VFX?

Nov. 7, 2019

ARRI Tech Tip: How to import a Frame Line into ALEXA Mini / AMIRA?

Want to know how to import a Frame Line into ALEXA MINI / AMIRA? See for yourself!

Nov. 7, 2019

ARRI Tech Tip: How to import a Frameline into ALEXA SXT / ALEXA LF?

Want to know how to import a Frame Line into ALEXA SXT / ALEXA LF? See for yourself!
