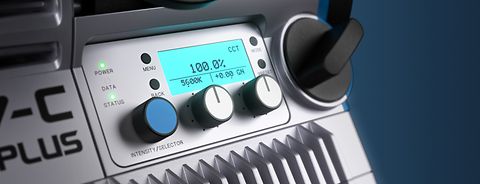

031_onboard_display_header_M210

Control and connectivity

Ease of use, familiar interface

Ease of use, familiar interface

Taking the renowned and proven benchmark of LED Fresnel fixtures to the next level, L-Series Plus offers enhanced connectivity by implementing network data input and lighting control via the ArtNet and Streaming ACN industry standards. Workflows are simplified by the familiar onboard control and user interface of the Classic SkyPanel.

L7-C-Plus

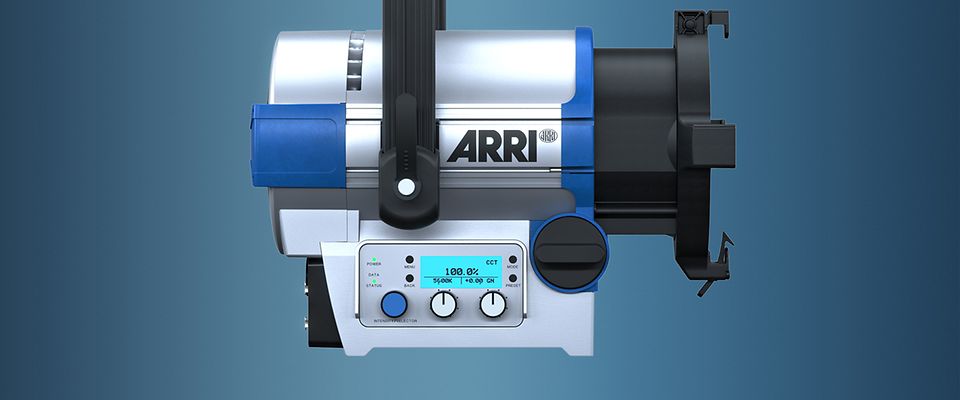

L7-C-Plus55
Controlling creativity at your fingertips

At the heart of the L-Series are a few core concepts: tuneability, color fidelity, built to last quality, and ease of use. Three simple knobs allow the brightness, color temperature, and green/magenta point to be fine-tuned, while a focus knob on the side of each fixture allows for smooth adjustment of the beam spread, just like conventional sources.

L7-C-Plus5667

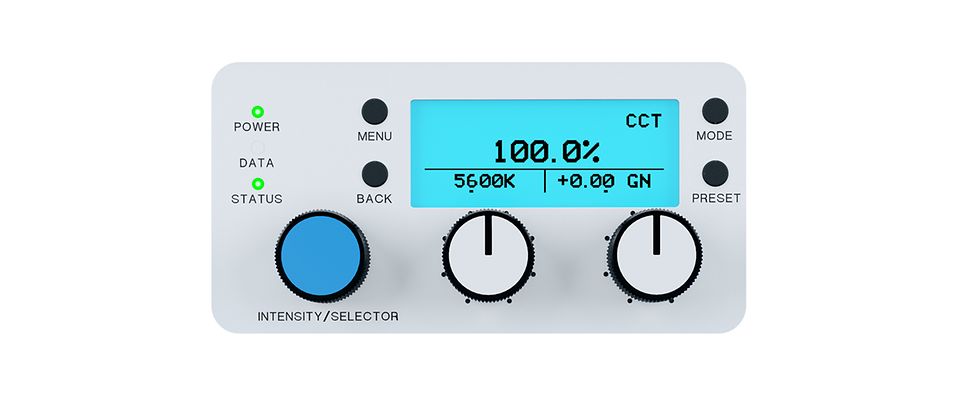

On-board control

Being able to quickly access all lamphead parameters directly on the fixture is important. For this reason, an on-board controller for manual control and setting adjustments is available. Additional controls for color temperature and plus/minus green can be switched at the touch of a button to adjust hue and saturation, as well as two quick presets, that can be saved and recalled easily, anytime.

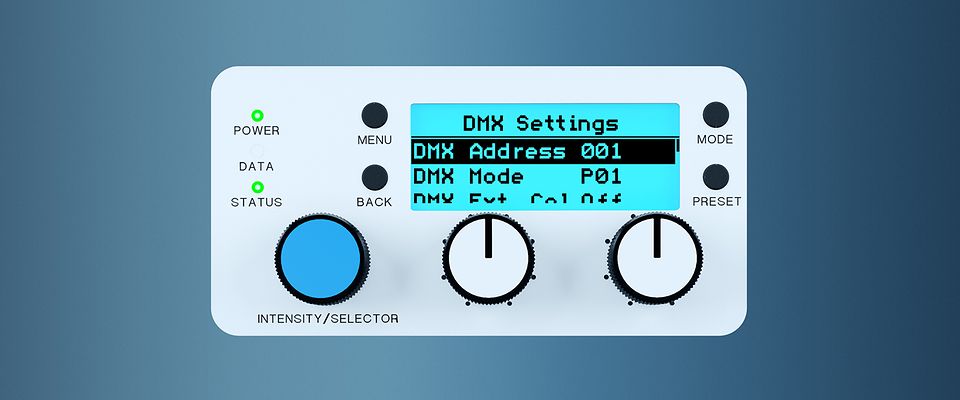

L7-C-Plus3524
DMX control & Streaming ACN

The L-Series Plus, including the L5-C Plus and L7-C Plus, offer advanced DMX control capabilities. Both LED fixtures are fully RDM compatible and provide bi-directional feedback and reporting of key parameters such as system status, light engine operating hours, and DMX settings, which can be used to remotely assign and address all fixtures within a DMX network. Furthermore, Streaming ACN and ArtNet control is also implemented.

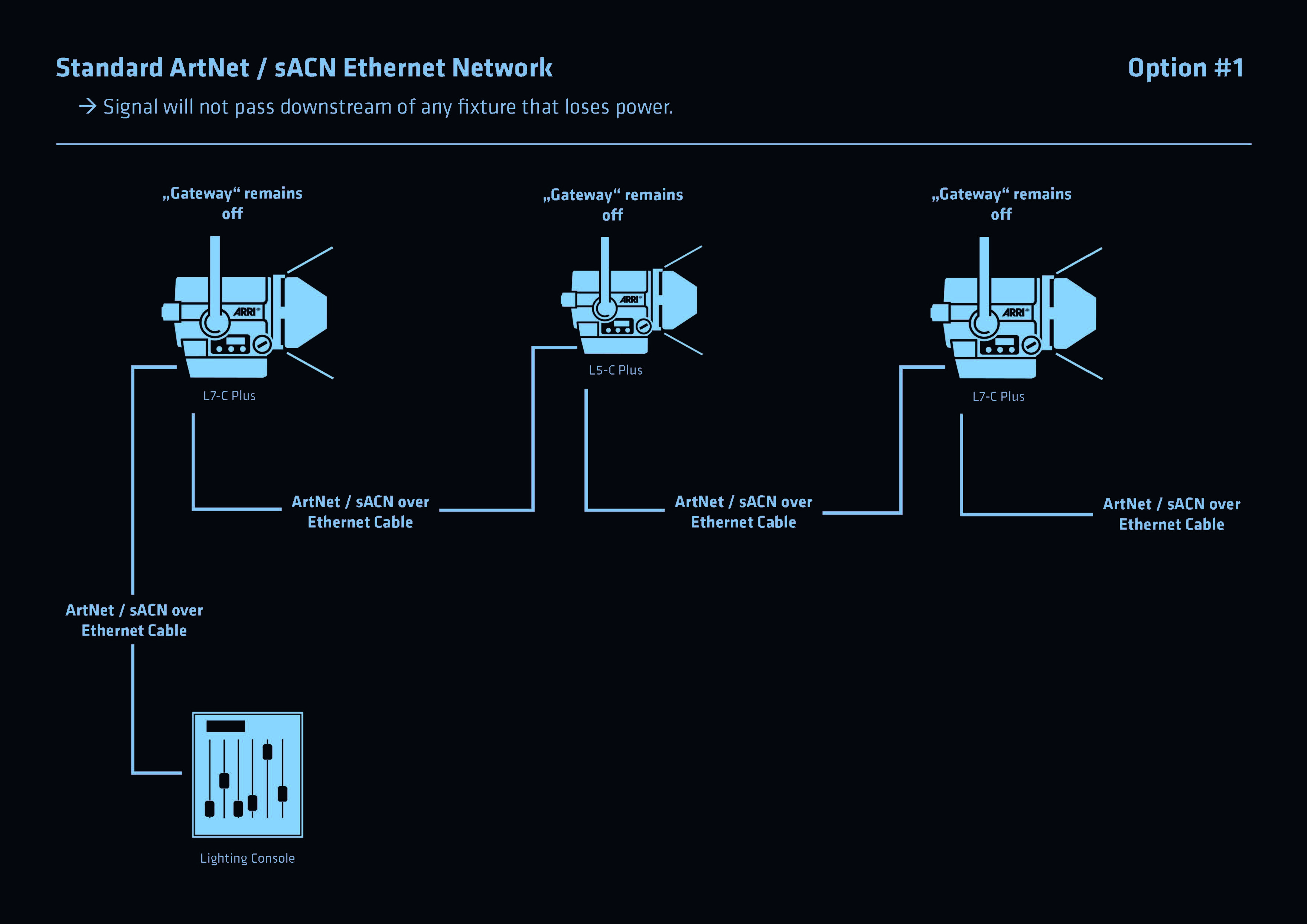

Flexible Networking

The L-Series Plus networking and connectivity options are expanded with the addition of Ethernet and 5-pin DMX adapters.

  • Option #1

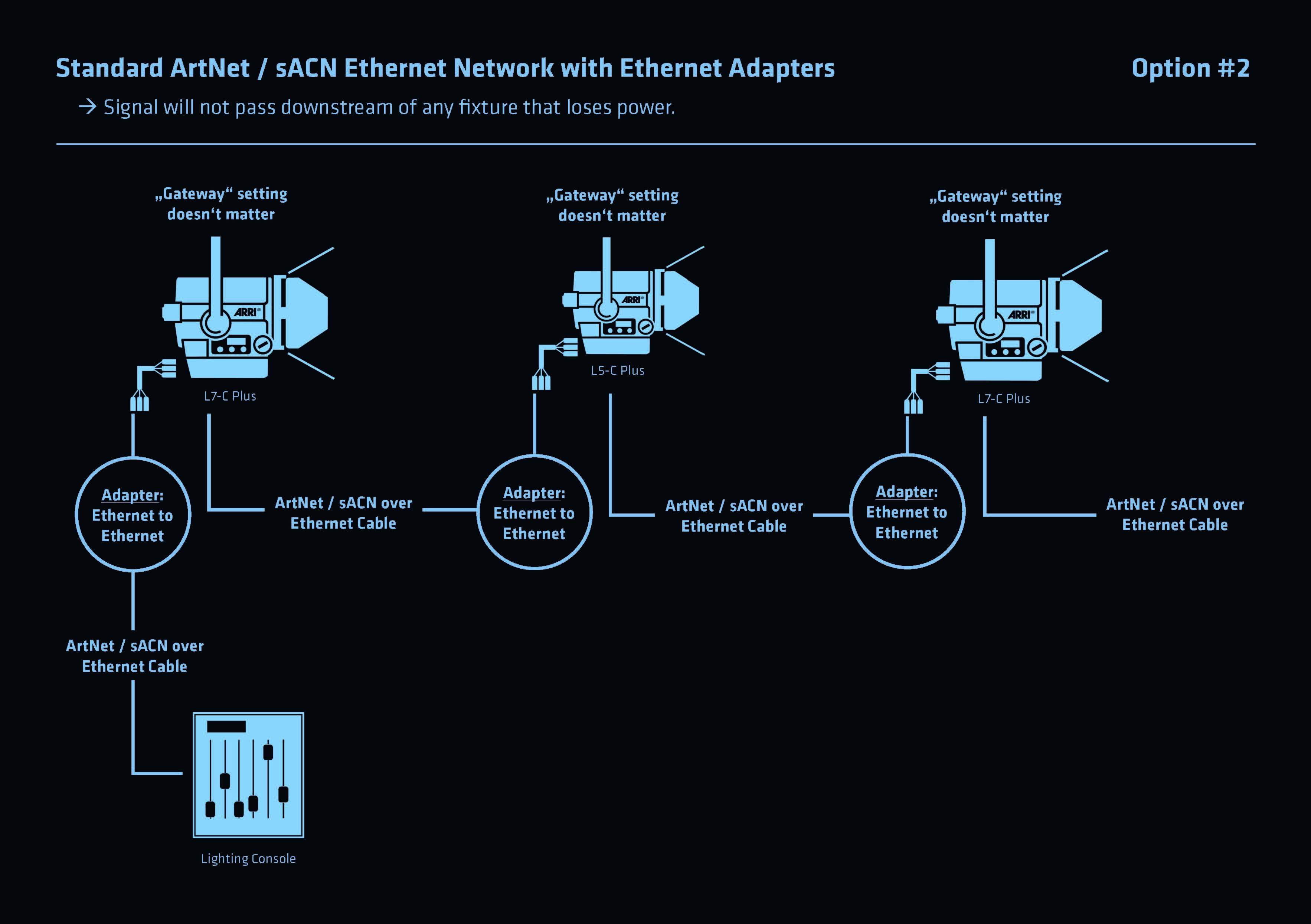

  • Option #2

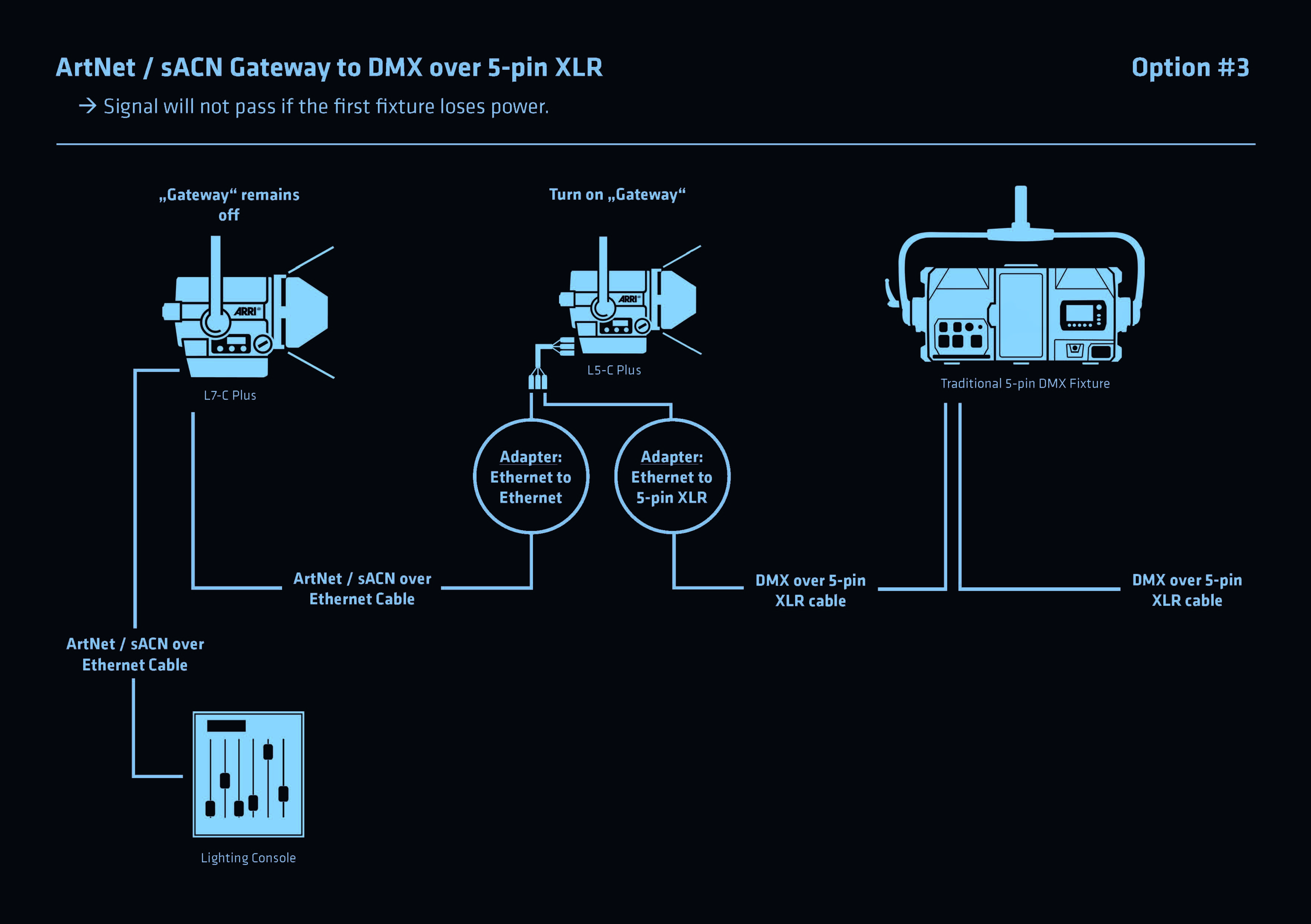

  • Option #3
  • Option #4

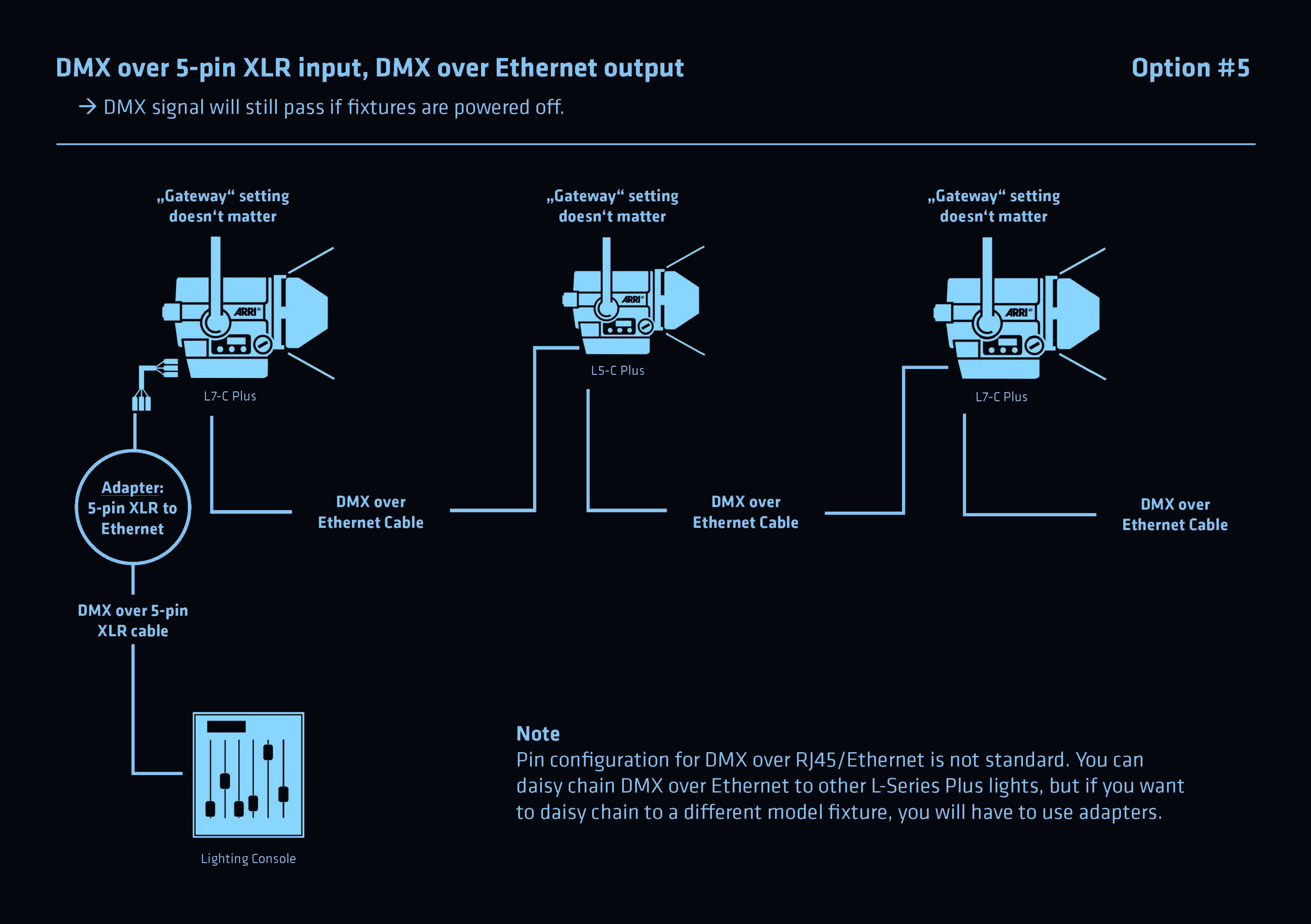

  • Option #5

Prepared for wireless operation

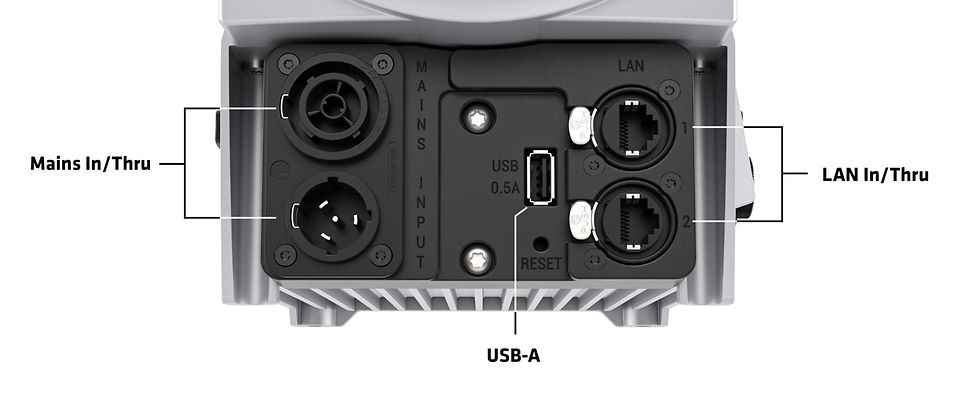

Did you know: Via the USB-A port, all L-Series Plus advices can also supply host power to third-party devices, such as portable wireless routers and CRMX receivers.

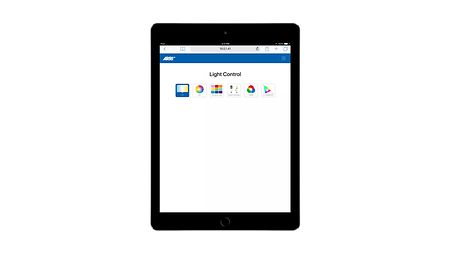

Web portal view

The Web Portal is an easy way to make adjustments to your L-Series Plus over an Ethernet or WiFi network. This Web Portal allows for fast navigation and comprehensive control interfaces offer complete control over all aspects of the fixture directly from any web browser. DMX functions are also monitored in detail.

New SkyPanel Web Portal

Upgradable technology

As LED technology advances, so does L-Series' firmware. The L-Series Plus is based on the same proven firmware platform as the Classic SkyPanel.  The ability to upgrade and update via a simple USB connection ensures the LED Fresnel is always running at peak performance.

Learn about features
Firmware4.5

Browse further useful information

A blue file folder

Downloads
Pencil on a technical specs of the ARRI Orbiter

Tech specs
ARRI Lighting updates shown in an ARRI App

Newsletter

Interested?

If you would like to receive further information and offers, or you have a specific request regarding L-Series Plus, fill in the form and we will get back to you.

This device has not yet been authorized by the rules of the Federal Communications Commission. This device is not, and will not be, offered for sale or lease within the United States, until authorization is obtained.
