Save time and simplify your facility's virtual production pipeline
Matching the colors envisioned in preproduction when that content is filmed from an LED wall can be complex and time-consuming.
ARRI Color Management for Virtual Production allows the precise calibration of LED walls in ICVFX environments, significantly reducing the work needed on set and in post to recover missing color information.
Maximize shoot days and give creative teams the assurance of high-quality, authentic image production in your studio facility.
ARRI Color Management for Virtual Production has been developed through our specialists’ extensive knowledge of the graphics pipeline and how the camera sensor picks up color on set.
Available as a license model for virtual production facilities, it enables the use of our LED Calibration plug-in for Unreal Engine. Productions using ARRI cameras will be able to achieve the best image quality, when recording in front of an LED wall or any other screen.

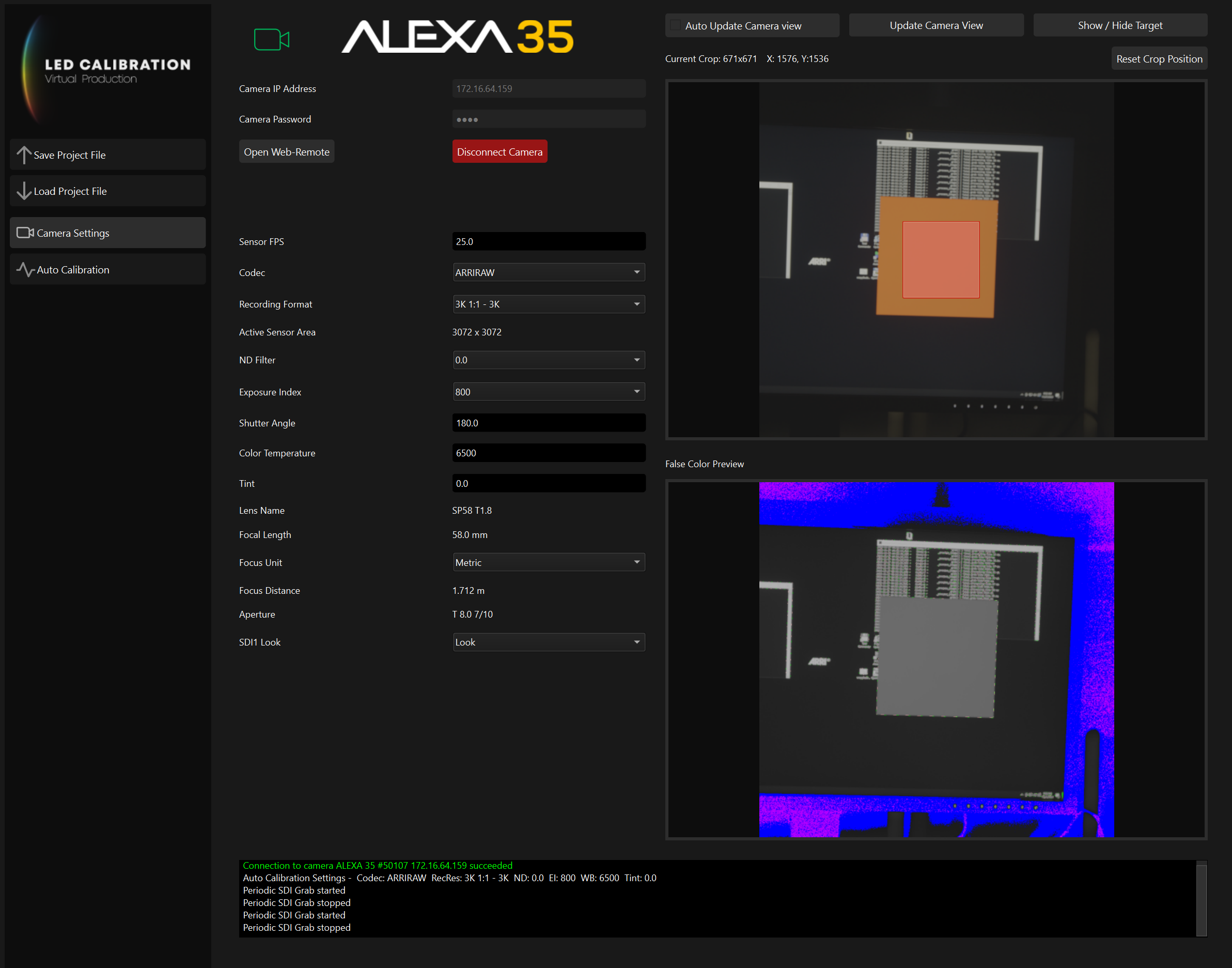

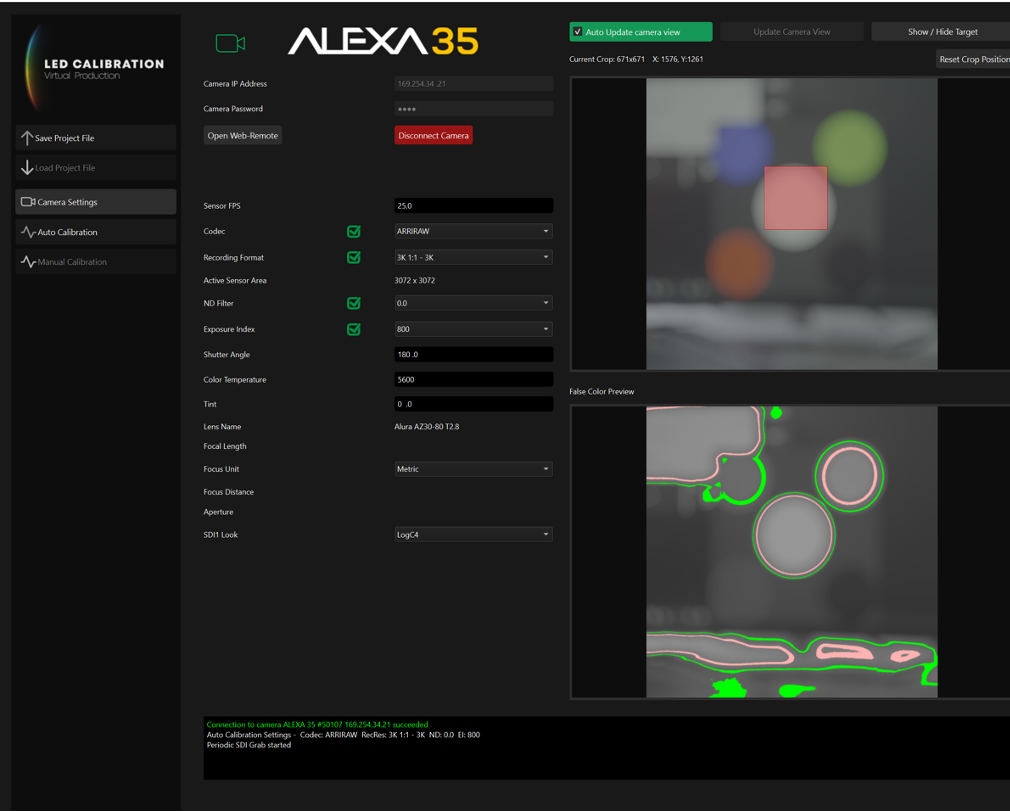

ARRI’s LED Calibration software communicates with compatible ARRI cameras via CAP and generates a calibration file for your studio’s chosen LED panel and camera combination, based on how RGB values are interpreted by the camera sensor.
This is imported into an Unreal Engine plugin, where we utilize our knowledge of the ARRI camera sensor, allowing for a single calibration for global color adjustments.

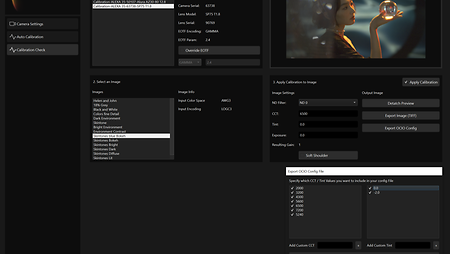

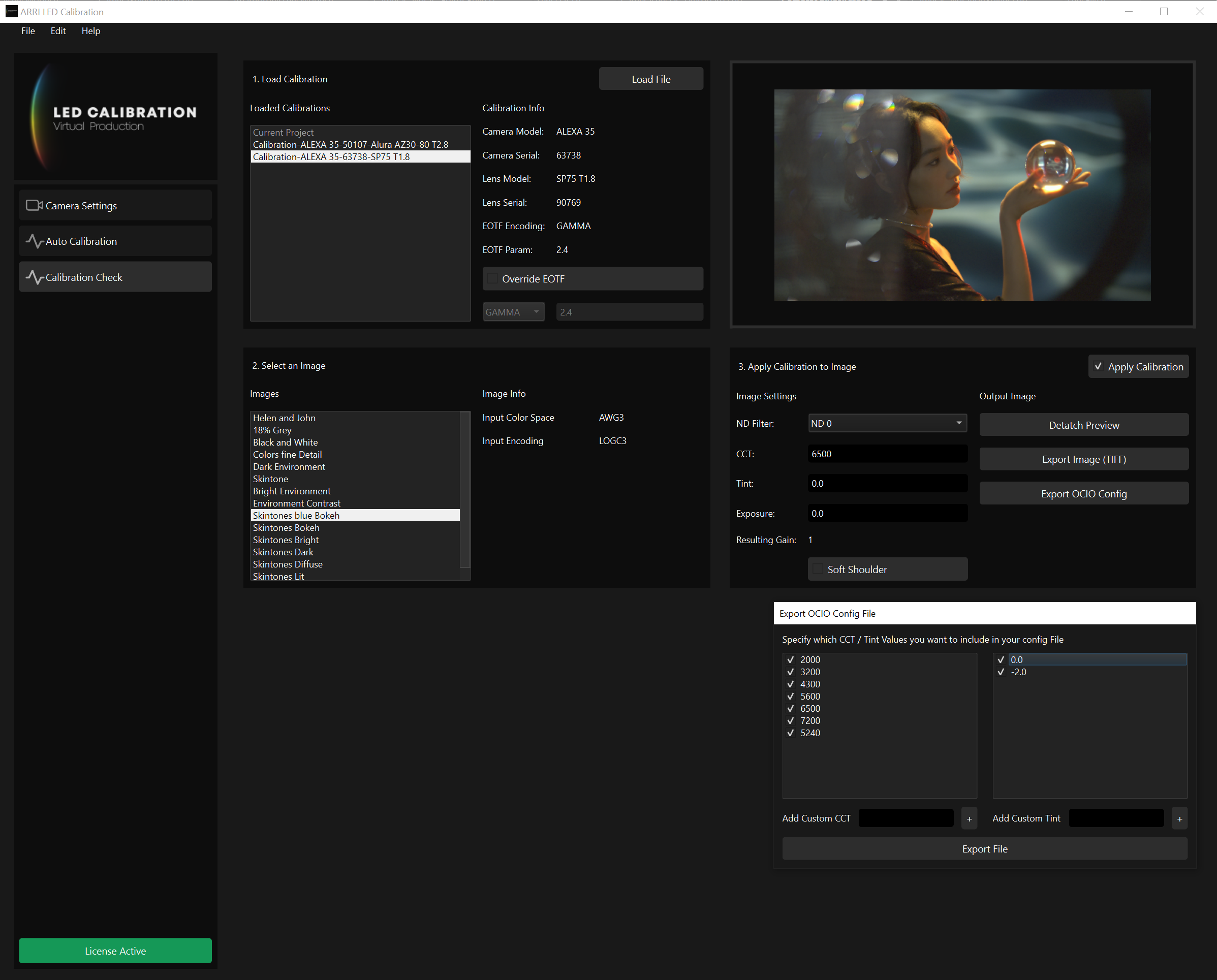

Version 1.1 of the LED Calibration software features OCIO export configuration. Select from pre-set or custom CCT and Tint values to be included in a config file, which can then be uploaded into your playback system.
Product Name | SUP |
ARRI AMIRA | SUP 6.1 |
ARRI ALEXA Mini | SUP 6.1 |
ARRI ALEXA Mini LF | SUP 7.3 |
ARRI ALEXA 35 | SUP 1.2.0 |
Unreal Engine | Version 5 |
OCIO Compatible Playout Systems |
Why do we need color management in LED volumes? And how should an environment be best prepared, to ensure the best results for your color pipeline. Andreas Oestreich, Virtual Production Software Developer introduces ARRI Color Management for Virtual Production.
ARRI Color Management for Virtual Production is offered as an annual subscription license. To begin a free 30-day trial, simply complete the form below. You'll receive a link to start your trial. Ready to purchase? You can activate your subscription at any time. After purchase, you’ll be provided with a license key needed to access the products, which will be available through the Canto Portal.
For studios wanting further, bespoke guidance on their facility’s color pipeline from pre- through to postproduction, consultancy services are also available via ARRI Solutions' team of virtual production and on-set workflow specialists.
We had worked on the studio’s R&D for around 12 months before we started opening up for productions, and color was the missing puzzle piece. Implementing ARRI’s Color Management and sharing our findings with the team was exciting and rewarding for us all. We’ve been able to extend the functionality even further, and this will now support all future productions within the volume.
Markus Helminen
Technical Director, FireFrame Studios
