ARRI LED Panel Lights

Different SkyPanels for different applications

ARRI’s SkyPanel family is well established as the gold standard for industry lighting professionals. For over eight years, creatives and technicians have chosen SkyPanel as a dependable solution for projects of all kinds. Its award-winning quality, outstanding lumen efficiency, and native soft light technology have made it an ubiquitous presence on film sets worldwide.

We are continuously expanding our SkyPanel family to offer you the latest technology and most efficient solution for your use case. Get to know our newest family members now!

The ARRI SkyPanel family consists of:

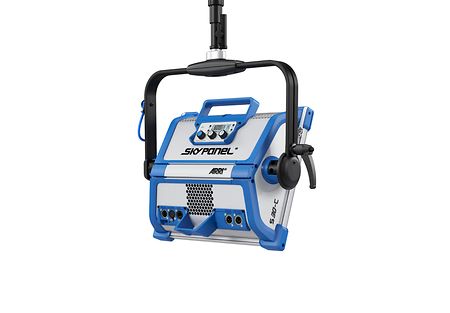

SkyPanel Classic

  • The LED soft light panels that redefined industry standards, available in S30-C, S120-C, and S360-C models

SkyPanel Pro

  • The next generation of the S60-C, with customer-focused improvements and enhanced controllability that optimize workflows

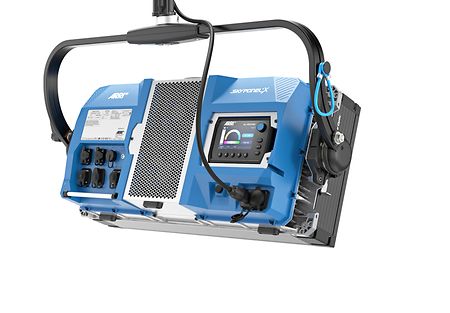

SkyPanel X

  • The modular, all-weather LED panel that delivers both native hard light for long throws and native soft light for close distances

All SkyPanels are available in two housing colors: iconic blue/silver and all-black.

SkyPanel-Overview-M26

Compare SkyPanel family


SkyPanel X21

SkyPanel S60 Pro

SkyPanel S60-C

SkyPanel-X-logo---POS---2C1

SkyPanel_Pro_logo-POS_RGBa

SkyPanel-logo---POS2

Type of Lamphead

Native hard and native soft light

Native soft light

Native soft light

Power Supply

Internal PSU

Internal PSU

External PSU

Weight with Manual Yoke

Approx. 18 kg / 39.7 Ibs (Internal PSU)

Approx. 15 kg / 33 lbs (Internal PSU)

Approx. 12.6 kg / 27.8 Ibs (without PSU)
Approx. 16.6 kg / 35.5 lbs (with PSU)

IP Rating

IP66

IP20

IP20

Accessory Compatibility

All SkyPanel X accessories
All Classic S60-C front accessories

All Classic S60-C front and mounting accessories

All Classic S60-C accessories

LEDs

RGBACL

RGBW

RGBW

CCT Range

1,500 K to 20,000 K

2,800 K to 10,000 K

2,800 K to 10,000 K

Pixel Zones

8

4

2

Camera Sensor Matching

Yes, via ARRI ALEXA Mode

Yes, via ARRI ALEXA Mode

No

Digital Twin

Yes

Yes

No

Dimming

Continuous high-resolution low-end dimming

Continuous high-resolution low-end dimming

Best results with Low-End Mode and Stage Mode

On-Board Control

Removable ALL-WEATHER Control Panel

On-board Control Panel on bottom of fixture

On-board Control Panel on top of fixture

Wired Control

5-Pin DMX/RDM In and Through
2x LAN/EtherCon for Art-Net, sACN, HTTP
Control Panel via cable and USB-C port
5-Pin DMX/RDM In and Through
2x LAN/EtherCon for Art-Net, sACN, HTTP.
Data Continues to Pass While Fixture is Powered Off.
5-Pin DMX/RDM In and Through
1x LAN/EtherCon for Art-Net, sACN, HTTP
Remote Control via cable & USB-A port

Built-in Wireless

Yes, via CMRX & Bluetooth

Yes, via CMRX & Bluetooth

No

CloudIO Remote Maintenance Tool

Yes

Yes

No


Software Platform

LiOS

LiOS

SkyPanel Classic firmware

Panel-Lights-Page-Accessories-M26
Enhance your lighting setup with SkyPanel accessories

Explore a wide selection of accessories for our SkyPanels, designed to enhance your lighting setup. Whether you’re working on a film set or in a TV studio, these accessories offer versatile solutions to achieve the perfect lighting for your needs.

asdHighM26
SkyPanel - beyond lighting

With many years of experience serving the industry, the ARRI SkyPanel has proven itself to provide a great return on investment.

Certificates

The ARRI SkyPanel family: meticulously crafted for quality and reliability. Its enduring LED engine shines for 50,000+ hours, providing reliable long-term performance on the most demanding production sets. Enjoy unmatched returns on your investment in ARRI technology and rest assured with a 100% manufacturer's warranty, securing your investment with our three-year coverage.

FAQ

  • The SkyPanel S60 Pro is IP20 rated and equipped with a RGBW LED light engine, whereas the SkyPanel X21 has an IP rating of 66 and a RGBACL full-spectrum color engine. Both are running on our latest software system LiOS and can also be perfectly combined with each other. The S60 Pro is a pure soft light panel, whereas the X21 can be used as both a soft and a hard light panel with the HyPer Optic and configurared into different sizes (X22, X23). SkyPanel X features a removable full-color control panel, whereas S60 Pro has a simplier integrated control panel.

  • Features: The SkyPanel Pro model offers several advanced features that set it apart from the SkyPanel Classic version. The Pro comes with a built-in power supply unit (PSU), CRMX, and Bluetooth, providing seamless connectivity and ease of use. The Pro also has four pixel zones, compared to the Classic's two, allowing for more intricate lighting control.

    Control Panel: For added convenience, the SkyPanel Pro's control panel is located at the bottom for easier access when mounted on a stand, whereas the Classic's is on top. The Pro model further enhances reliability with fail-safe Ethernet in and out, while the Classic only supports Ethernet in.

    Real-time monitoring: A significant advantage of the Pro is its integration with CloudIO, enabling real-time monitoring of your lighting grid’s health and batch firmware updates, features not available with the Classic. Additionally, the Pro model excels in dimming, achieving smooth dimming down to zero without color shift or snap-off, and without requiring special settings.

    Software: The SkyPanel Pro is based on ARRI's LiOS platform and therefore also supports camera-focused ALEXA Mode options, catering to professional filming needs, which are not available on the Classic. It's worth noting that the Pro requires a regulated DC supply of 48V to 52V, compared to the Classic's 23V to 36V, making it less compatible with simple battery adapters.

    If price is a consideration, it's important to weigh these enhanced features against the cost difference between the Pro and Classic models.

  • The S60-C will be discontinued by September 12th, 2024. The S60 Pro has been designed to seamlessly integrate into existing S60-C inventories.
