Ensō Vintage Elements

One lens set, multiple looks

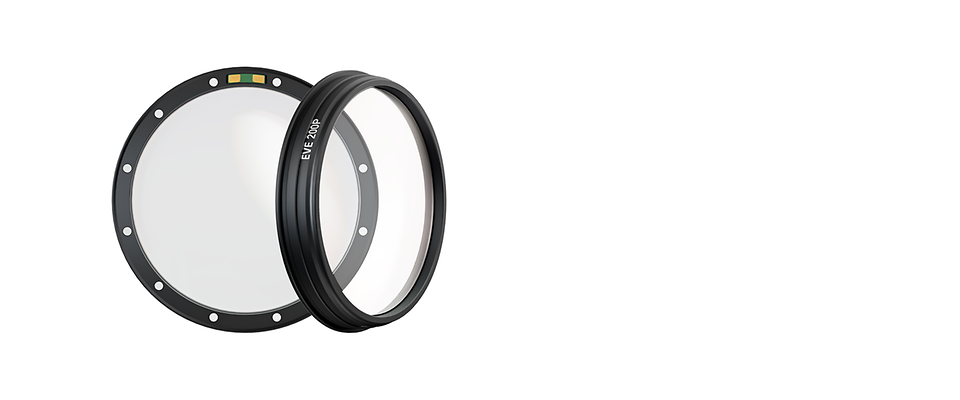

Ensō VE 200P Collage Kopie (1)
External lens tuning

Ensō Vintage Elements (EVE) are interchangeable optics that attach magnetically to the back of Ensō lenses, offering quick and easy external lens tuning that changes the look of your images. Metadata about slight shifts to focus scale, T-stop, and focal length goes to on-set monitors and postproduction, and allows automatic focus compensation with ARRI's Hi‑5 hand unit. The set of six Vintage Elements also comes with a Creative Adapter that lets you invent your own unique Elements.

Ensō Vintage Elements

Create diverse vintage looks with a single lens set
Adapt bokeh and fall-off to your creative needs
Quick and easy external lens tuning, with metadata

Positive Vintage Elements

Included in the set of six Ensō Vintage Elements are three positive Elements of different strengths. These produce smeary, soft-edged bokeh in the background with Petzval-like swirl at the frame edges.

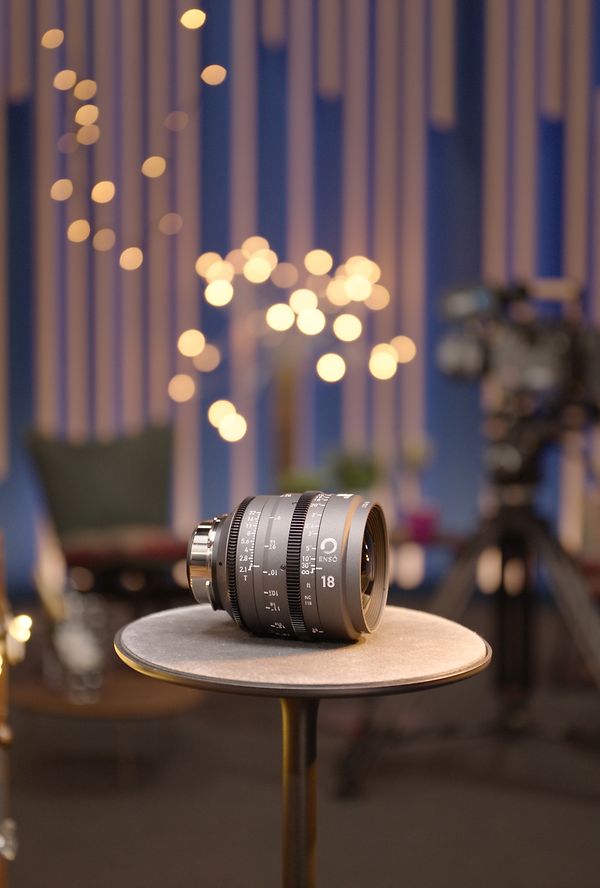

1_VE100P (1)

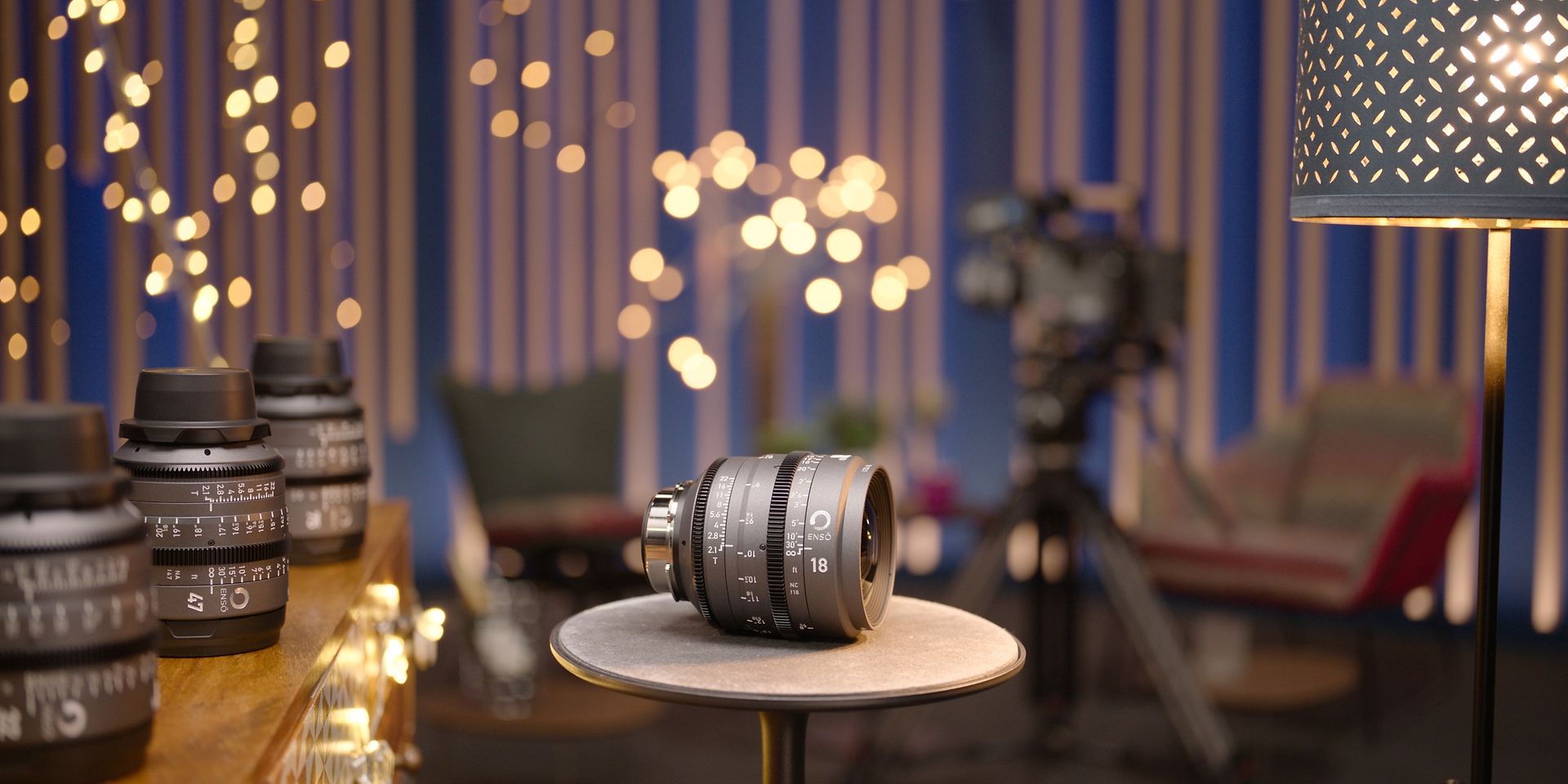

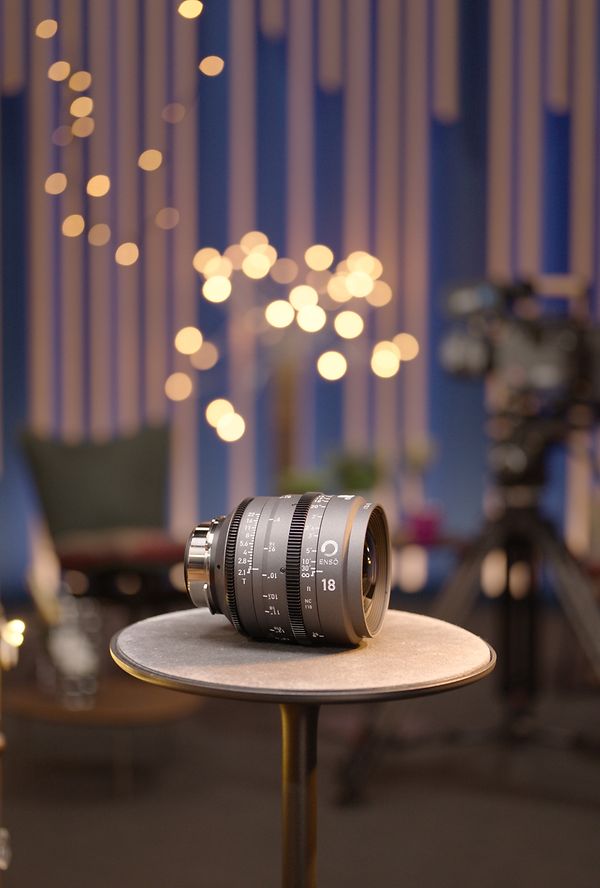

0_No_Filter
Original image
Vintage Element 100P

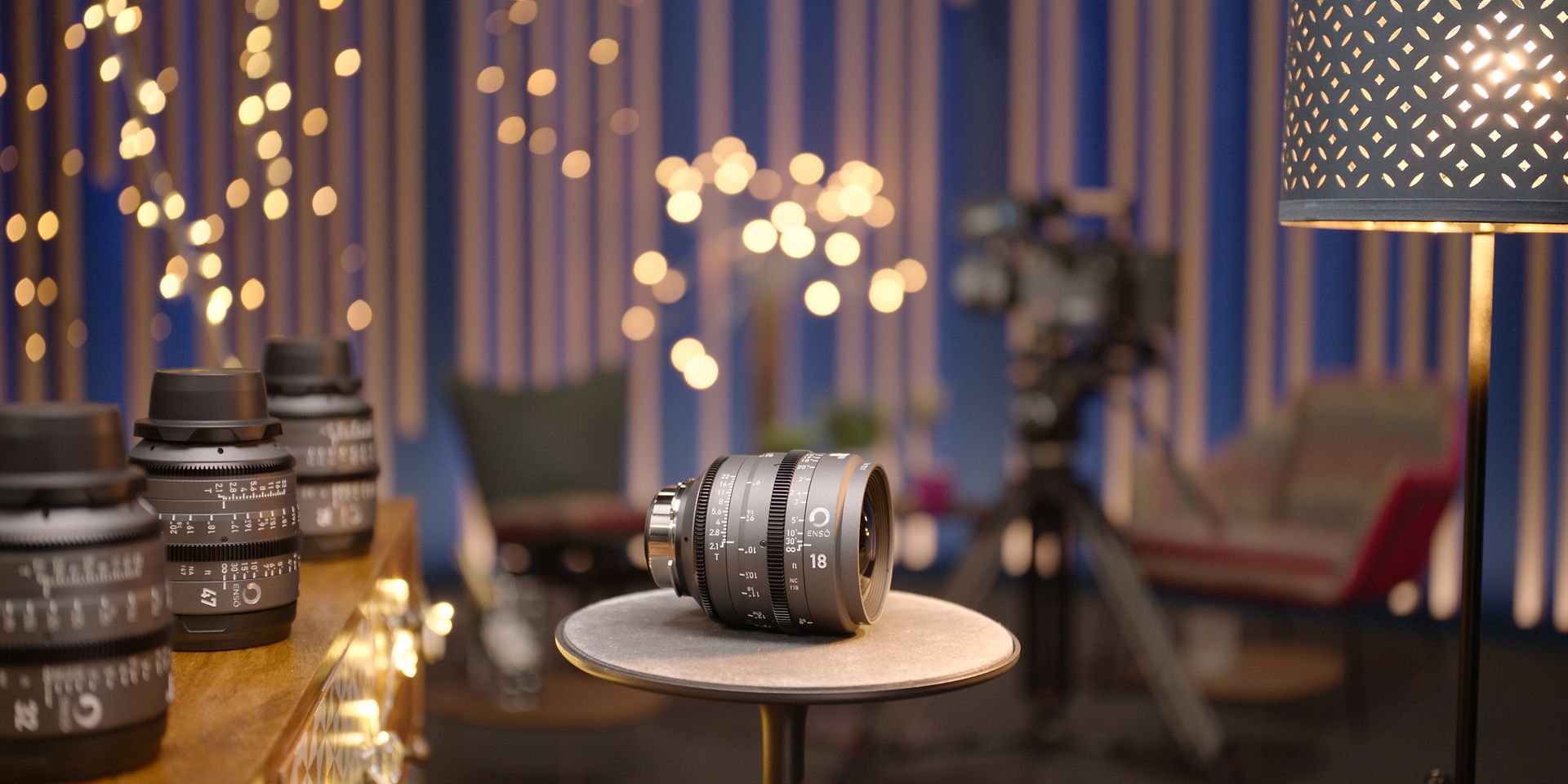

1_VE100P (1)
0_No_Filter
Original image
Vintage Element 100P
Still 2024-10-09 134120_1.2.1
Still 2024-10-09 134102_1.9.1

Negative Vintage Elements

Negative Vintage Elements have the opposite effect to positive Elements. In the background, out-of-focus highlights have diffuse centers and bright outlines that overlap to create an edgier, more intrusive feel.

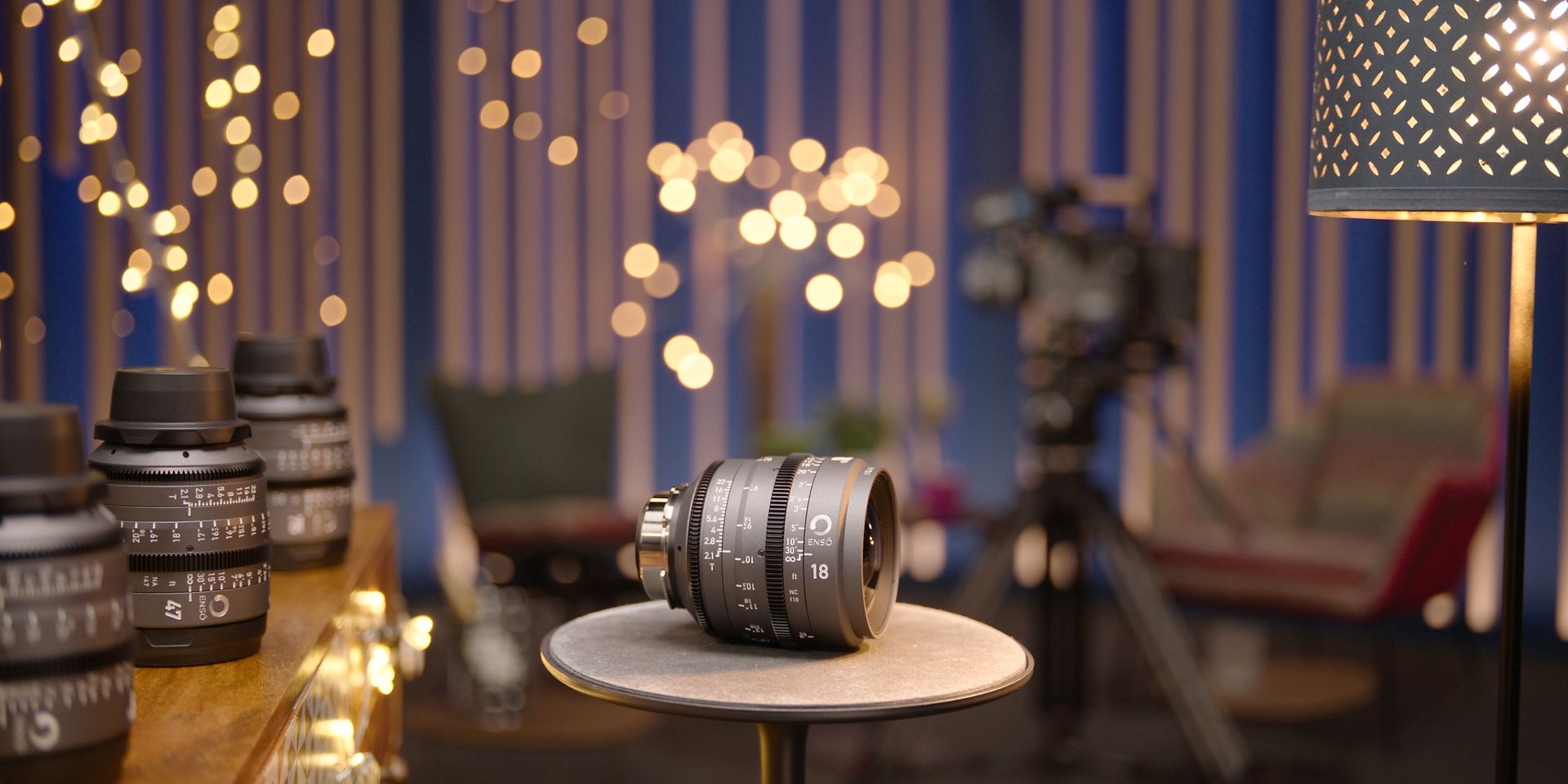

4_VE100N
0_No_Filter
Original image
Vintage Element 100N

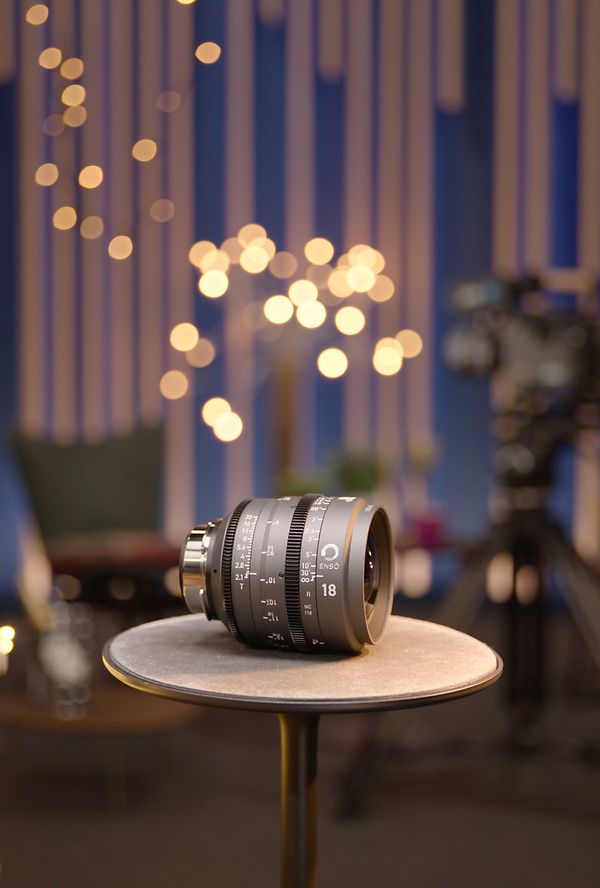

4_VE100N
0_No_Filter
Original image
Vintage Element 100N
Still 2024-10-09 134102_1.7.1
Still 2024-10-09 134102_1.5.2
Still 2024-10-09 134102_1.4.1

Technical data



Ensō Vintage Elements

Focal Length

multiplier

Focal Length

multiplier [%]

Exposure change

(stops)

Open aperture

for T2.1 lens

Ensō VE 350P0.9346.60.201.96
Ensō VE 200P0.9594.10.132.01
Ensō VE 100P0.9792.10.062.06
No Filter1102.1
Ensō VE 100N1.033-0.082.16
Ensō VE 200N1.0636.3-0.172.23
Ensō VE 350N1.0999.9-0.282.31
