Orbiter Beam

Brightest full-color LED spot light

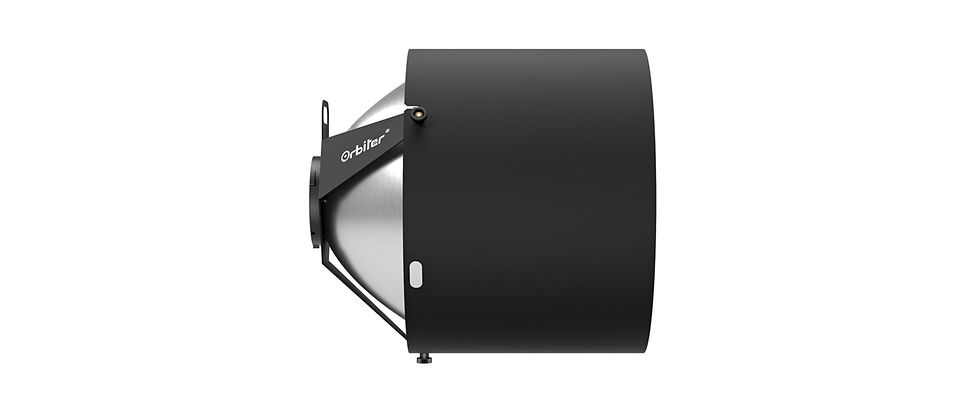

Beam-Intro-M26
Get drawn into Orbiter's Beam ...

The Orbiter Beam provides a punchy and defined 4° shaft of parallel and homogeneous light. This Beam optic transforms the Orbiter into the brightest full-color LED spot light on the market, thanks to it's new reflector-focused optical concept and the Orbiter's Spectra light engine. The Orbiter Beam produces an illuminance level that is comparable to the Daylight M-Series M18, enabled by its tighter beam angle.

L2.0048438

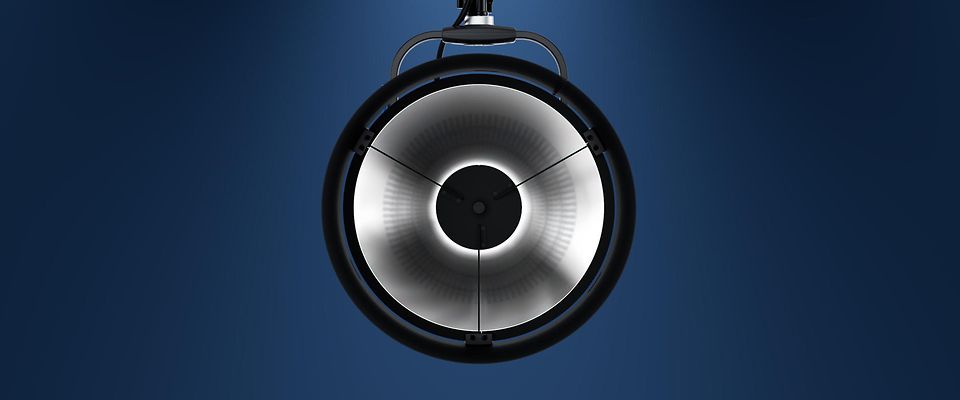

Orbiter Black + Beam - Front - USP_update
Features:
  • High intensity output thanks to new optical concept
  • 4° parallel beam
  • Reflector and snoot can be easily separated and stacked for convenient storage and transport
  • Manual focus adjustment for a soft or hard beam edge
  • Effortless mounting thanks to Orbiter's QLM
  • Can be attached to any Orbiter color version

"The first test with the Orbiter‘s new parallel Beam Reflector revealed an exciting light output, exceeding the Orbiter‘s fresnel lens at full spot by 1,5 stops."

In my eyes, ARRI’s projection optics have already brought the Orbiter a giant leap forward—I am sure the Beam will become a further accessory that reinforces the Orbiter‘s position as a versatile every-day set tool. It will become a future standard in my lighting package."

Timm Brückner
Gaffer, Germany

3592

Tech Specs

The Orbiter Beam has a large aperture, yet its housing is compact (approx. 573 mm x 548 mm x 548 mm / 22.6 in x 21.6 in x 21.6 in) and lightweight (5,9 kg / 13 lbs.). The reflector’s diameter of 530 mm (20.9 in) is similar in size to the M90.

The optic consists of two parts, the reflector and the snoot, which can easily be separated and stacked for convenient storage and transport.

The Orbiter Beam utilizes a unique manual focus adjustment that allows for a soft or hard beam edge.

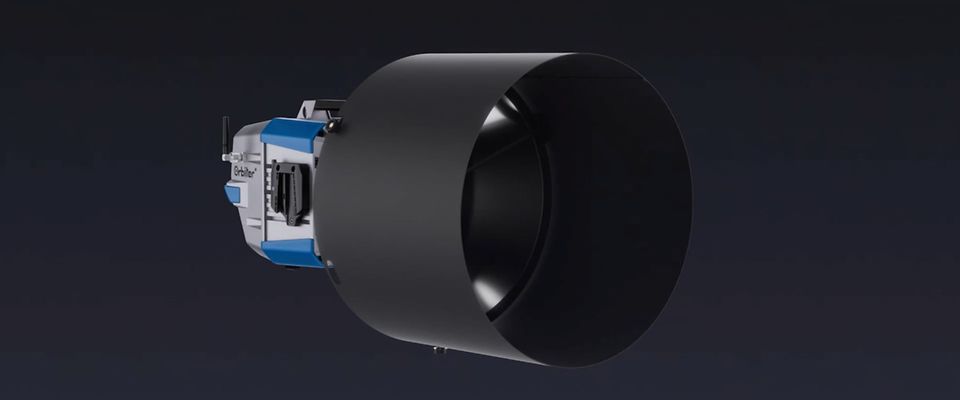

Thumbnail animation

Application possibilities

This parallel beam light is perfectly suited especially within cinematic applications—either for long throw distances or indirectly bounced. The Orbiter Beam optic is an ideal option for creating the illusion of natural light from a distance. The unique and authentic look of this light fixture makes it a go-to choice for filmmakers when simulating sun- or moonlight in film projects.

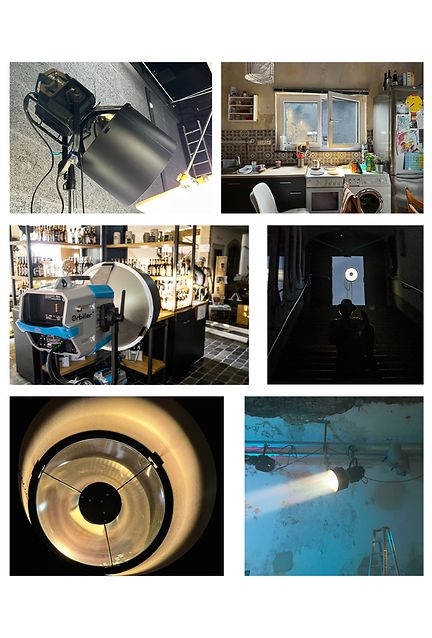

Beam-Gallery

Mounting

Orbiter’s unique Quick Lighting Mount (QLM) system allows the Beam optic to be mounted safely and quickly. The LiOS2 or higher update ensures an automatic recognition of this new optic.

9314-22

Orbiter Beam Set

Get drawn into the punch of Orbiter's latest optic and benefit from the Orbiter Beam Set, which is perfect for long throw distances and cinematic applications.

Click through the set L0.0050676 here.

orbiter_sales_100y_image_map_beam
Orbiter Blue/Silver
1
Manual Yoke
2
Power Cable w. Switch Bare Ends
3
Orbiter Control Panel with Cable
4
Orbiter Beam optic
5
Open Face Optics
6
  • Orbiter Blue/Silver

    1

    The ARRI Orbiter is a versatile, tuneable, and directional LED fixture including a six-color light engine. With its changeable optics, Orbiter can transform into many different types of lamphead.

    L1.0033520


  • Manual Yoke

    2

    The yokes for Orbiter come with a newly developed release system that allows for quick change from a manual version lamphead to a pole operated version. The 28 mm spigot (Junior pin) is already mounted on the yoke. No tools needed for setting up Orbiter.

    • Quick release system
    • No tools needed
    • Manual yoke made of high strength aluminum profile
    • Steel yoke for pole operation (pan, tilt)
    • Includes 28 mm spigot (Junior pin)

    L2.0034025

  • Power Cable w. Switch Bare Ends

    3

    The mains cables connect Orbiter to a mains power outlet (100-240 V~, 50/60 Hz).

    • powerCON TRUE1 TOP connector
    • Line switch
    • Lengths: 3 m / 9.8 ft.
    • Rubber insulated cable H07RN-F 3G1,5, EN

    L2.0024627

  • Orbiter Control Panel with Cable

    4

    Redesigned from the ground up, the Orbiter control panel is an evolutionary step in light fixture control. Including a 4" full-color display, quick navigation buttons, and integrated sensors, the Orbiter control panel allows for easy use with a graphic user interface. Simplified menu structure and reimagined user interfaces provide one-glance operational views and uncluttered screens.

    This intuitive design makes changing colors or finding a setting easier than ever before. In addition, the control panel is removable and can be used handheld with the aid of a control panel cable.

    • Quick navigation, advanced user interface, and simple menus
    • This set includes the Orbiter control panel cable 15 m / 49.2 ft. (L2.0033800)
    • Includes carrying pouch, lanyard & D-ring

    L2.0033732

  • Orbiter Beam optic

    5

    The Orbiter Beam optic is an ideal option for creating the illusion of distant natural lights. The unique and authentic look of this optic in combination with the versatile Orbiter fixture makes it a go-to choice for filmmakers when simulating the natural light of the sun or moon in film projects.

    The two elements of the optic, the reflector and snoot, can be easily separated and stacked for convenient storage and transport. The Orbiter Beam comprises a unique manual hot-spot adjustment allowing variation from hard to soft edge light. No additional accessories for the Orbiter Beam optic such as barndoors or snoots are required as the light beam produced is already nicely focused.

    • Strong 4° parallel light beam with homogenous light
    • Compact aperture (approx. 573 mm x 548 mm x 548 mm / 22.6 in x 21.6 in x 21.6 in)
    • Lightweight housing (5,9 kg / 13 lbs.)
    • Reflector’s diameter of 530 mm (20.9 in)
    • Easy and safe mounting thanks to Orbiters Quick Lighting Mount (QLM) system

    L2.0048438

  • Open Face Optics

    6

    On the occasion of our 100th anniversary of ARRI Lighting in 2024, we are giving you 3 Open Face optics (15°, 30°, 60°) on top of every Orbiter Beam Set.

    The Open Face optics produce a high-output, directional beam of light in several different beam angles including 15°, 30°, and 60°. They are perfect for throwing light long distances or providing a broad swath of light. The accessory slot can be used with modifiers such as barndoors or snoots.

    • Provides powerful, uniform beam of light
    • Attaches to the Quick Lighting Mount (QLM) on Orbiter
    • Contains digital optics identification
    • Fits 4-leaf & 8-leaf barndoors and snoots
    • Accessory slot size: 245 mm / 9.7"
    • Ships in foam insert that can be re-used for safe transportation and storage

    L2.0033540 (15°)

    L2.0033541 (30°)

    L2.0033542 (60°)

FAQ

Order your Beam optic

If you would like to receive an offer or have a specific request regarding the Orbiter Beam, fill in the form and we will get in touch with you.
