L1.33730.B TB D12-1

D12

Highly innovative lampheads for studio and location lighting

Where a lightweight Fresnel spotlight using daylight characteristics with compact size and high efficiency is needed, ARRI True Blue D-Series Fresnels are the preferred choice. ARRI's elegant modular construction, using corrosion-resistant aluminium extrusions and lightweight die castings, offers great structural strength and weather resistance. Together with ARRI flicker-free Electronic Ballasts, the rugged True Blue D-Series is ideal for all types of location lighting.

Features

  • Cross-Cooling System
  • Easy Maintenance
  • Adjustable accessory brackets
  • Barndoor Safety Catch
  • Sliding and lightweight stirrup
  • Tilt lock with disc brake
  • Stainless steel lens protection
  • Robust True Blue barndoors
  • Robust Location Top Latch
  • IP Rating IP23
Technical Data
Category
Daylight
Series
True Blue D
Model
True Blue D12
Mains Plug
VEAM, Schaltbau (GTV-Standard)
Lamphead Type
Fresnel, 1,200 W
Reflector
Spherical specular high purity aluminium
Lamp Type
Metal Halide 1,200 W/SE
Power Consumption
1,200 W
Voltage Range
100 V
Lamp Base
G38
Dimming
yes, 50 to 100 % via ARRI Ballast Unit
Correlated Color Temperature
6,000 K
Beam Angle
7.5° to 50°
Weight in kg net*
approx. 9.4 kg
Weight in kg packed*
approx. 11.6 kg
Weight in lbs. net*
approx. 20.73 lbs
Weight in lbs. Packed*
approx. 25.58 lbs
Measurements (HxWxL) incl. Pin in mm*
644 x 374 x 325 mm
Measurements (HxWxL) excl. Pin in mm*
511 x 374 x 325 mm
Measurements (HxWxL) incl. Pin in inch*
25.3 x 14.7 x 12.8"
Measurements (HxWxL) excl. Pin in inch*
20.1 x 14.7 x 12.8"
Measurements (HxWxL) Packed size in mm*
460 x 400 x 650 mm
Measurements (HxWxL) Packed size in inch*
18.1 x 15.7 x 25.6"
Lens / UV-Protection Glass Diameter in mm
175 mm
Lens / UV-Protection Glass Diameter in inch
6.9"
Accessory Diameter in mm
230 mm
Accessory Diameter in inch
9.1" (Scrim)
Barndoor in mm
245 mm
Barndoor in inch
9.7"
Mounting
Spigot 28 mm / 1 1/8" (1.1")
Housing Color
Blue/Silver, Black
Protection Class / IP Rating
I / IP23
Certifications
CE, UKCA, CB, ENEC, cNRTLus

Note *Weight and dimensions are rounded values.

Show more

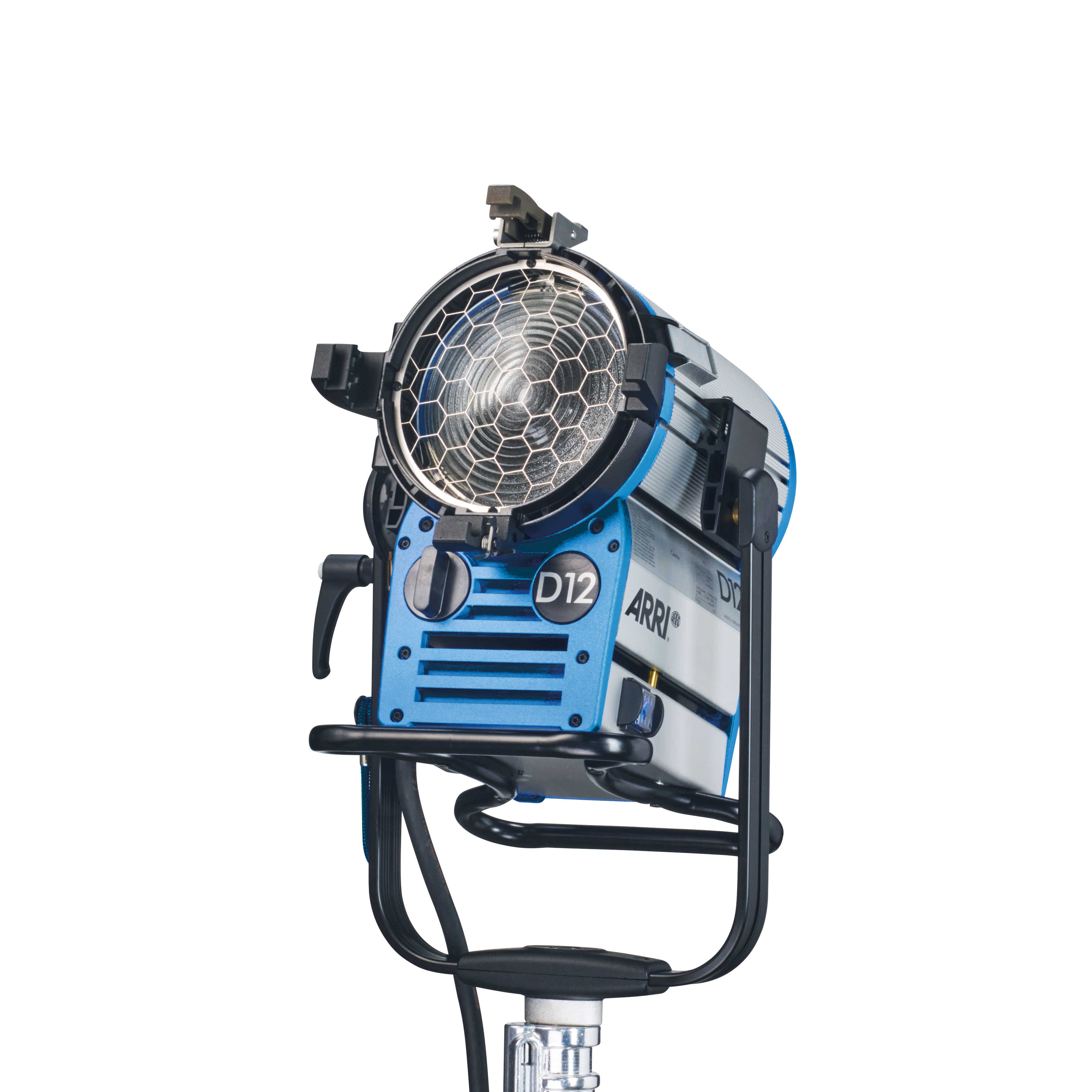

True Blue D12 - View From Left, tilted

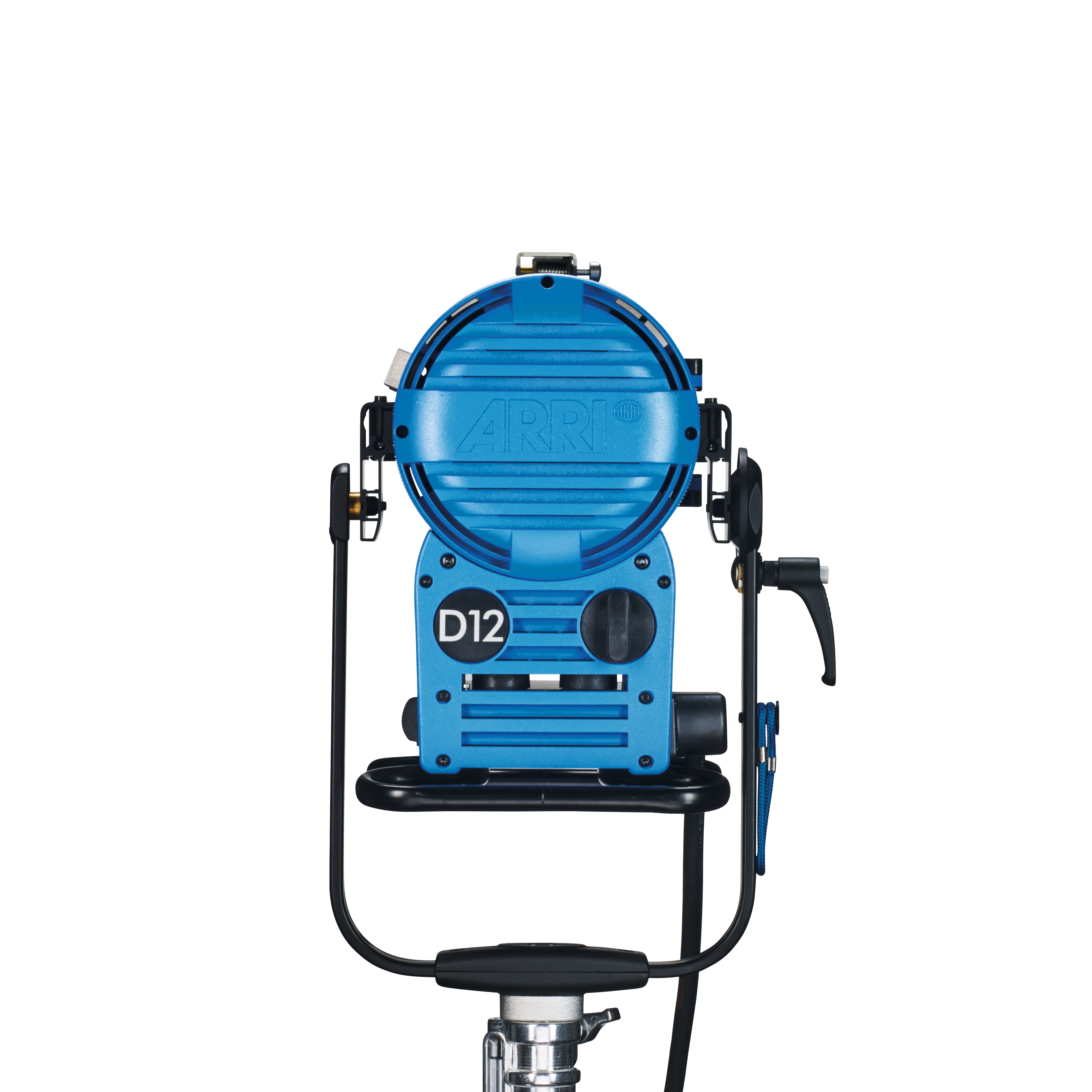

True Blue D12 - Rear View

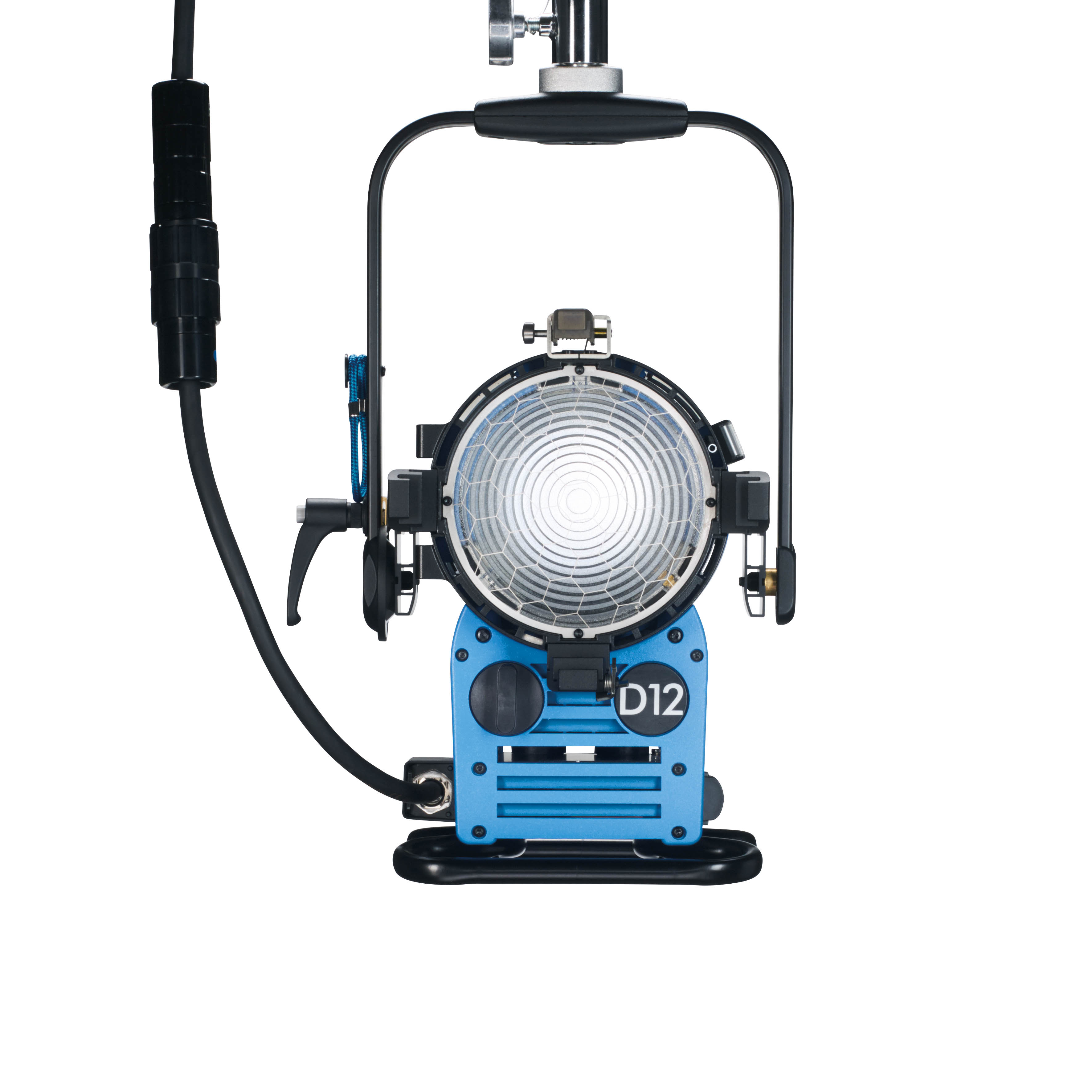

True Blue D12 - Front View

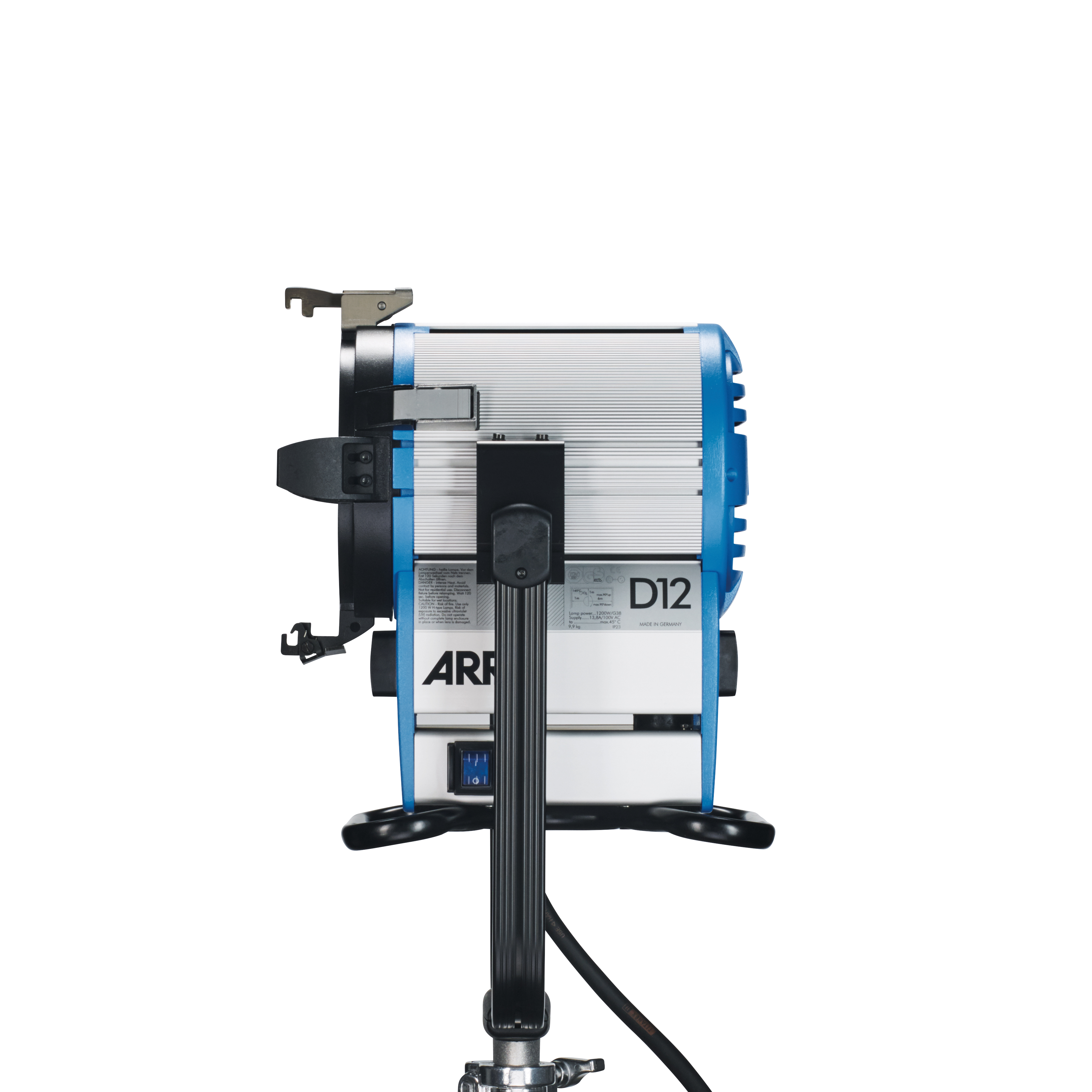

True Blue D12 - View from Left, on Stand

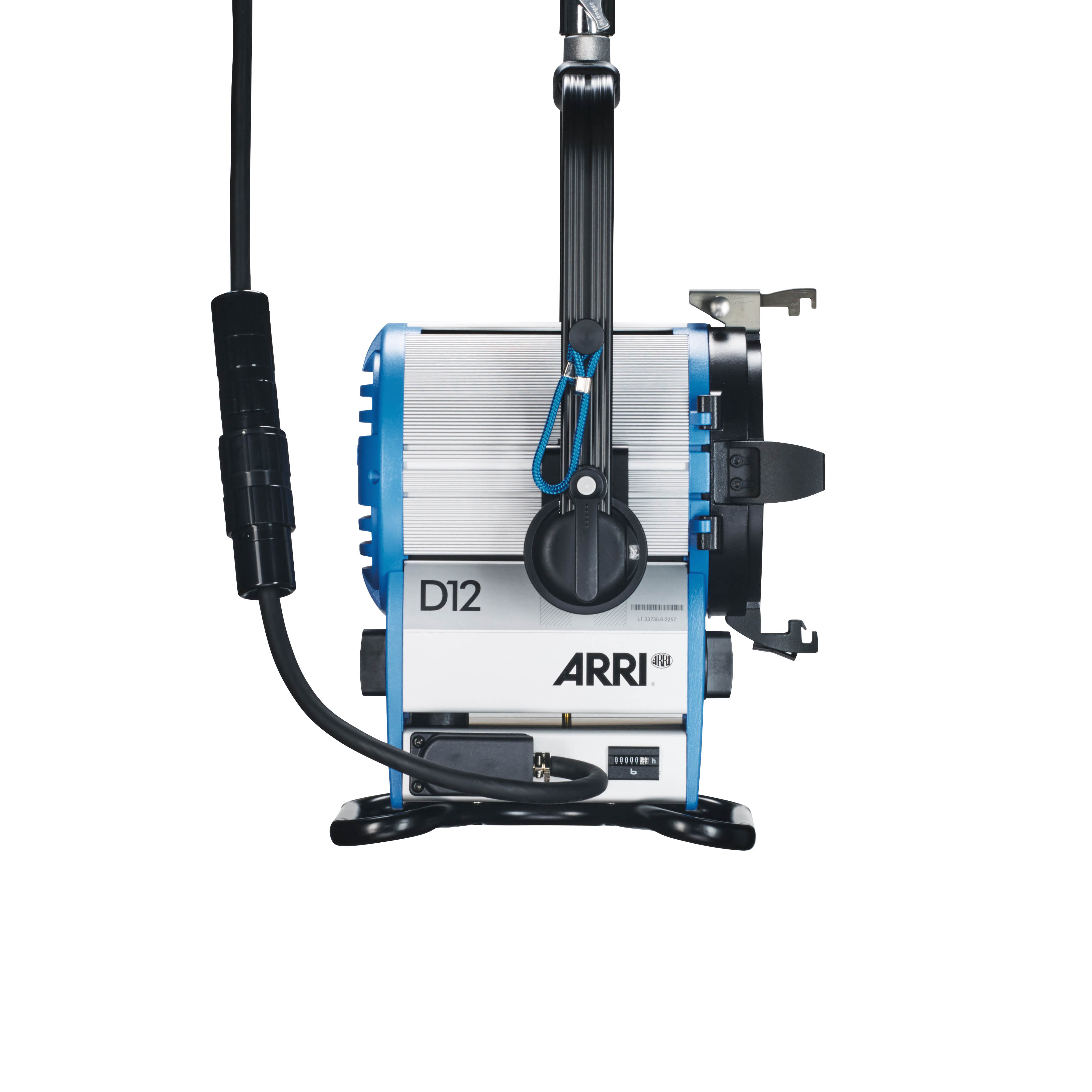

True Blue D12 - View from Right, hanging
