ARRI Daylight 18/12

Ideal for all types of location lighting

Where a lightweight Fresnel spotlight using daylight characteristics with compact size and high efficiency is needed, ARRI Daylight Fresnels are the preferred choice. ARRI's elegant modular construction, using corrosion-resistant aluminium extrusions and lightweight die castings, offers great structural strength and weather resistance. Together with ARRI Electronic High Speed Ballasts, this rugged HMI Fresnel is ideal for all types of location lighting.

Features

  • Large, high efficiency wide-angle lenses
  • Corrosion-resistant aluminium construction
  • Extremely even light distribution
  • Focus knob on front and rear
  • Easy service access
Technical Data
Category
Daylight
Series
Daylight Fresnel
Model
ARRI Daylight 18/12
Mains Plug
VEAM
Lamphead Type
Fresnel, 18,000 W
Reflector
Spherical specular high purity aluminium
Lamp Type
Metal Halide 18,000 W/DE; Metal Halide 12,000 W/DE
Power Consumption
18,000 W / 12,000 W
Voltage Range
225 V / 160 V
Lamp Base
S30
Dimming
yes, 50 to 100 % via ARRI Ballast Unit
Correlated Color Temperature
6,000 K
Beam Angle
15° to 50°
Weight in kg net*
approx. 70 kg
Weight in kg packed*
approx. 114 kg
Weight in lbs. net*
approx. 154 lbs
Weight in lbs. Packed*
approx. 251 lbs
Measurements (HxWxL) incl. Pin in mm*
1236 x 1040 x 825 mm
Measurements (HxWxL) excl. Pin in mm*
-
Measurements (HxWxL) incl. Pin in inch*
41.7 x 40.9 x 32.5"
Measurements (HxWxL) excl. Pin in inch*
-
Measurements (HxWxL) Packed size in mm*
1135 x 1170 x 1050 mm
Measurements (HxWxL) Packed size in inch*
44.7 x 46.1 x 41.3"
Lens / UV-Protection Glass Diameter in mm
625 mm
Lens / UV-Protection Glass Diameter in inch
24.6"
Accessory Diameter in mm
740 mm
Accessory Diameter in inch
29.1"
Barndoor in mm
740 mm
Barndoor in inch
29.1"
Mounting
Spigot 28 mm / 1 1/8" (1.1")
Housing Color
Blue/Silver, Black
Protection Class / IP Rating
I / IP23
Certifications
CE, UKCA, CB, ENEC, cNRTLus

Note *Weight and dimensions are rounded values.

Show more
ARRI Daylight 18/12 - View from Left
ARRI Daylight 18/12 - Rear View
ARRI Daylight 18/12 - Front View
ARRI Daylight 18/12 - View from Left

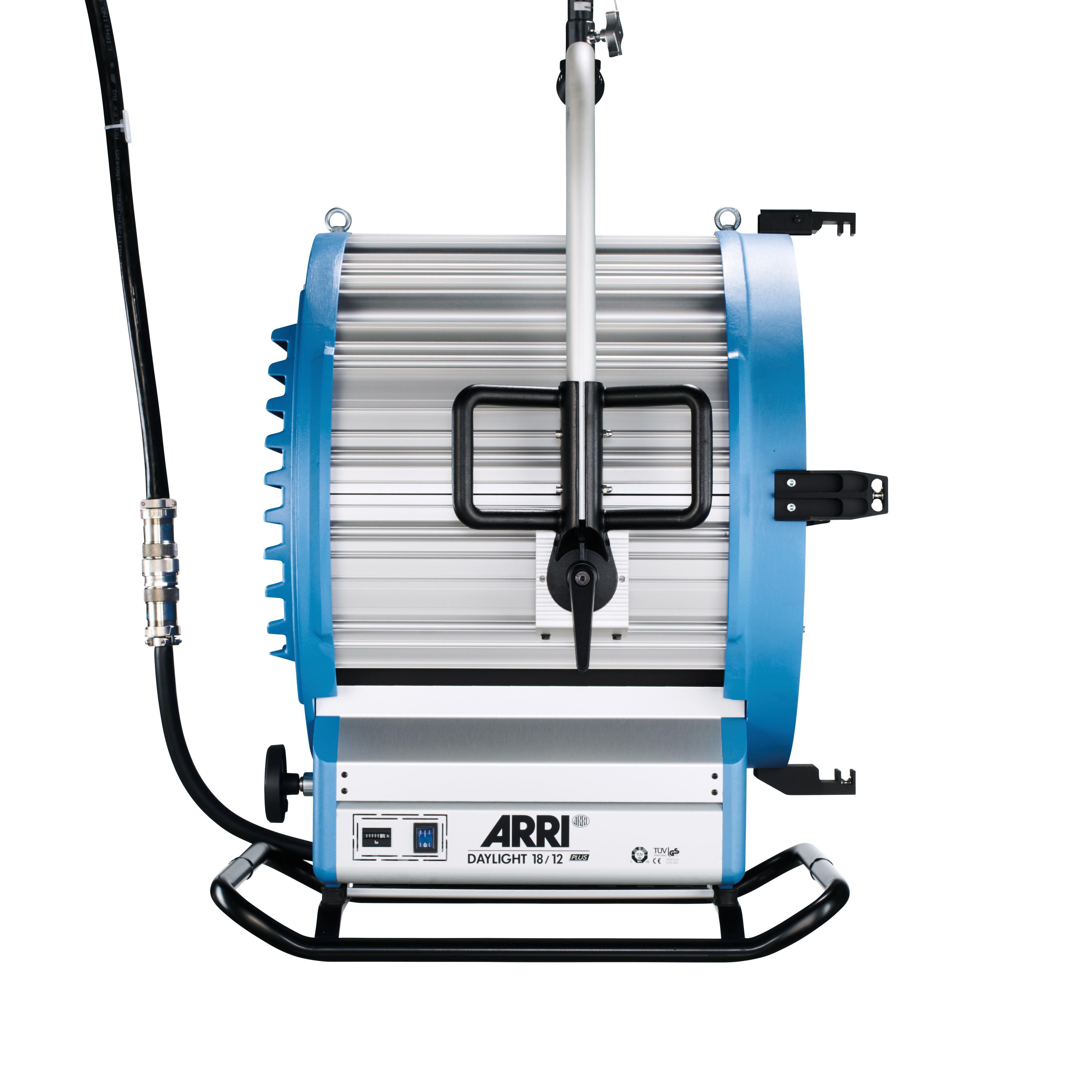

ARRI Daylight 18/12 - View from Right
