Compact, lightweight, and sturdy

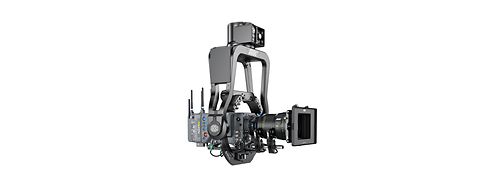

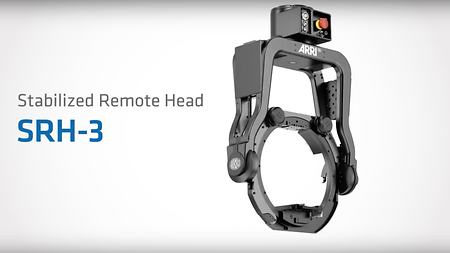

The SRH‑3 is a fully stabilized, three-axis remote control head that can accommodate payloads of up to 30 kg / 66lb.
The compact and lightweight design offers an excellent payload to own weight ratio. With the integrated LBUS future proof solutions and workflows are guaranteed.
Stabilized Axis | 3 (Pan, Tilt, Roll) |
Max. Payload | up to 30Kg/66lbs |
Height | 60,8cm/23.93in |
Width | 41,2cm/16.22in |
Depth Head | 13 cm/5.12in |
Depth Base | 16,5cm/6.49in |
Ring Diameter | 26cm/10.23in |
Ring Height centre | 20,9cm/8.23in |
Weight | 9,0Kg/19.8lb |
Max. Tilt Range | +60° / - 110° |
Max. Roll Range | +/- 90° |
Max. Pan Range | 540° +/-270° |
Max. Pan Rate | 240° / Sec. |
Max. Tilt Rate | 240° / Sec. |
Operating Voltage Head | 24V - 36V |
Output Camera | 12V & 24V |
Current | 10 Amps |

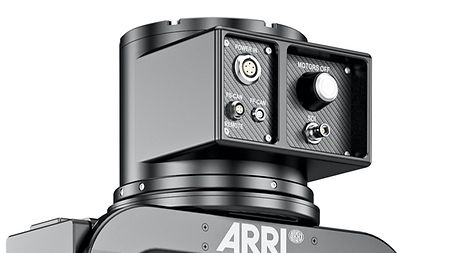

LBUS socket | |
RS socket | |
SAM plates compatible | |
Environmental | -20° to +50° / -4° F to 122° F |
